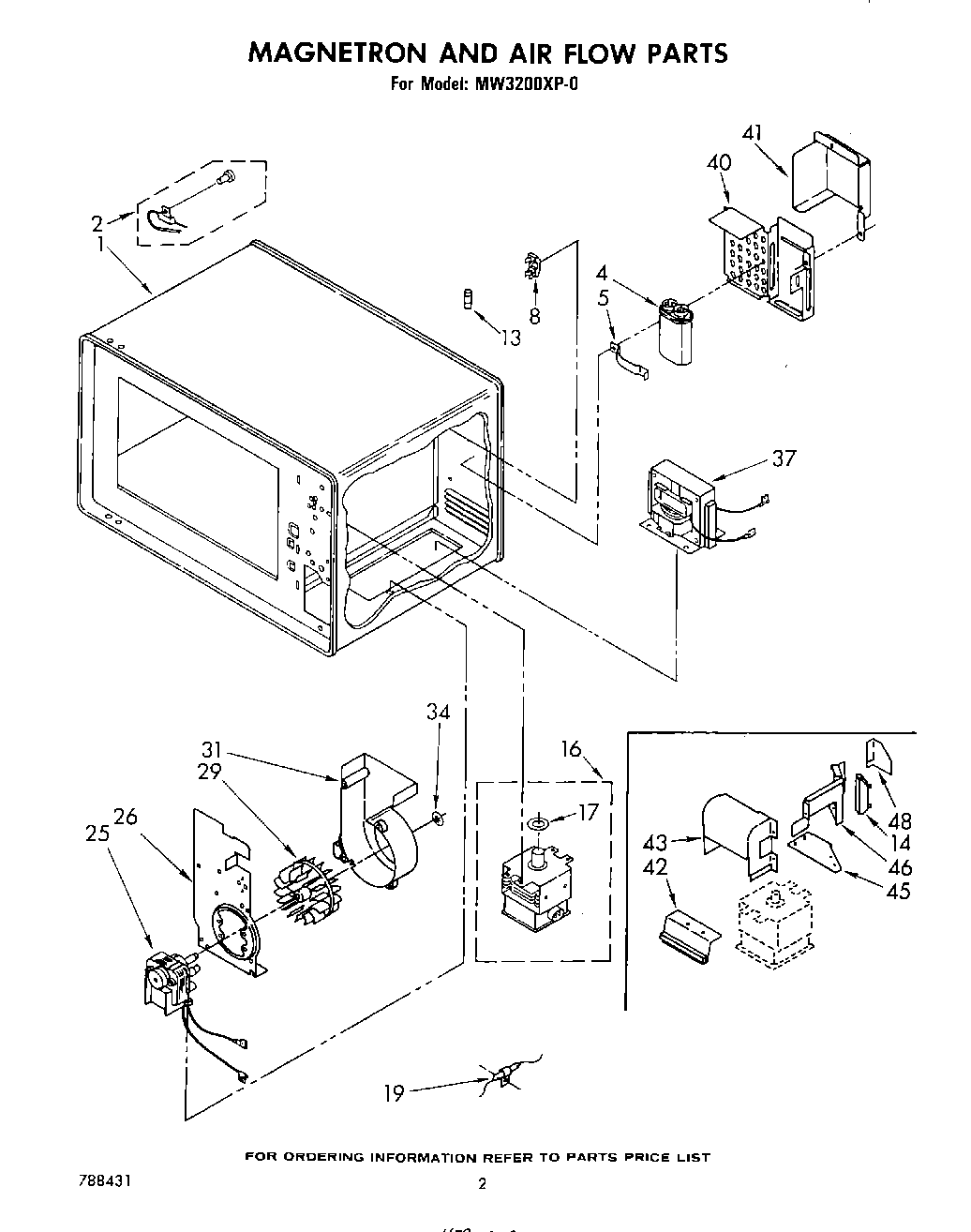

MW3200XP0 02 – SECTION

Products

Position	Product
1	Cavity, Complete (Not Serviceable)
2	Protector, Thermal
4	Capacitor
5	Bracket, Capacitor Mounting
8	Holder, Fuse
8	Nut, 4-40
8	Screw, 4-40 x 1/4 Phillips Pan Head
13	Fuse (15 Amp)
14	Diode
14	WP250830 Whirlpool Refrigerator Screw
16	Nut, 5mm (4)
16	Magnetron (Includes Illus. No.17)
17	Gasket, Magnetron
19	Thermal Protector, Magnetron
25	Motor, Blower (Includes Illus. 34)
25	Diode
25	Washer No.8 (4)
26	Bracket, Blower
29	Wheel, Blower (Includes Illus. NO. 34)
31	Housing, Blower (Includes Illus. 34)
31	Screw, 8-18 x 1/2 (3)
34	E-Ring, Blower Wheel
37	S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
37	Transformer
40	Cover, Capacitor
41	Cover, Lead
42	Deflector, Air
43	Duct, Inlet
45	Duct, Air (Bottom)
46	Duct, Air (Side)
48	WP90767 Whirlpool Screw
48	Deflector, Rear
