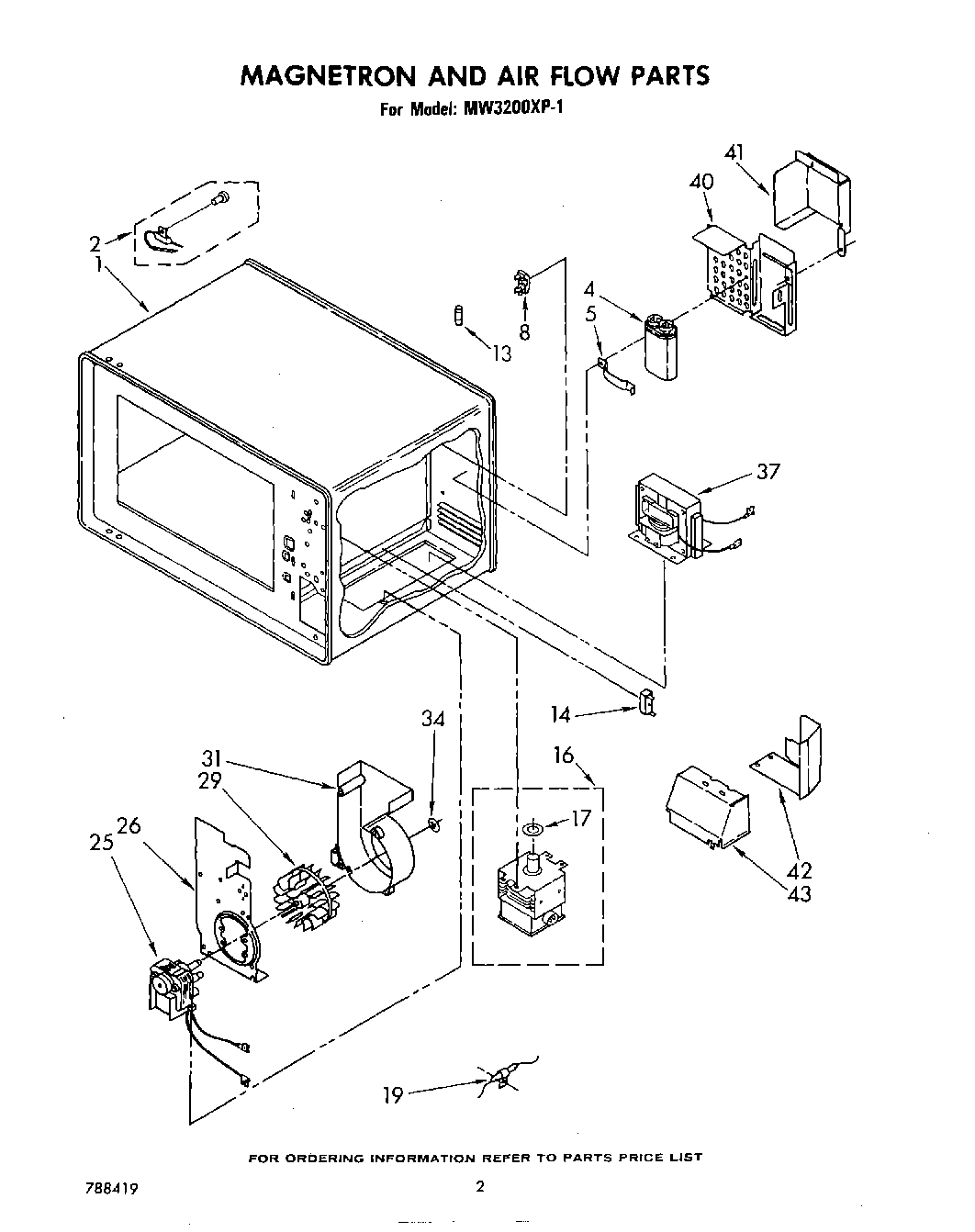

MW3200XP1 02 – MAGNETRON AND AIR FLOW

MW3200XP1 02 – MAGNETRON AND AIR FLOW

Written by

in

MW3200XP1 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Cavity, Complete (Not Serviceable)
2Protector, Thermal
4Capacitor
5Bracket, Capacitor Mounting
8Nut, 4-40
8Screw, 4-40 x 1/4 Phillips Pan Head
8Holder, Fuse
13Fuse (15 Amp)
14Diode
16Magnetron (Includes Illus. No.17)
16Nut, 5mm (4)
17Gasket, Magnetron
19Thermal Protector, Magnetron
25Washer No.8 (4)
25Diode
25Motor, Blower (Includes Illus. 34)
26Bracket, Blower
29Wheel, Blower (Includes Illus. NO. 34)
31Housing, Blower (Includes Illus. 34)
31Screw, 8-18 x 1/2 (3)
34E-Ring, Blower Wheel
37Transformer
37S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
40Cover, Capacitor
41Cover, Lead
42Air Duct, Front
43WP90767 Whirlpool Screw
43Air Duct, Rear
