MW3200XP1 05 – CONTROL
Written by
in

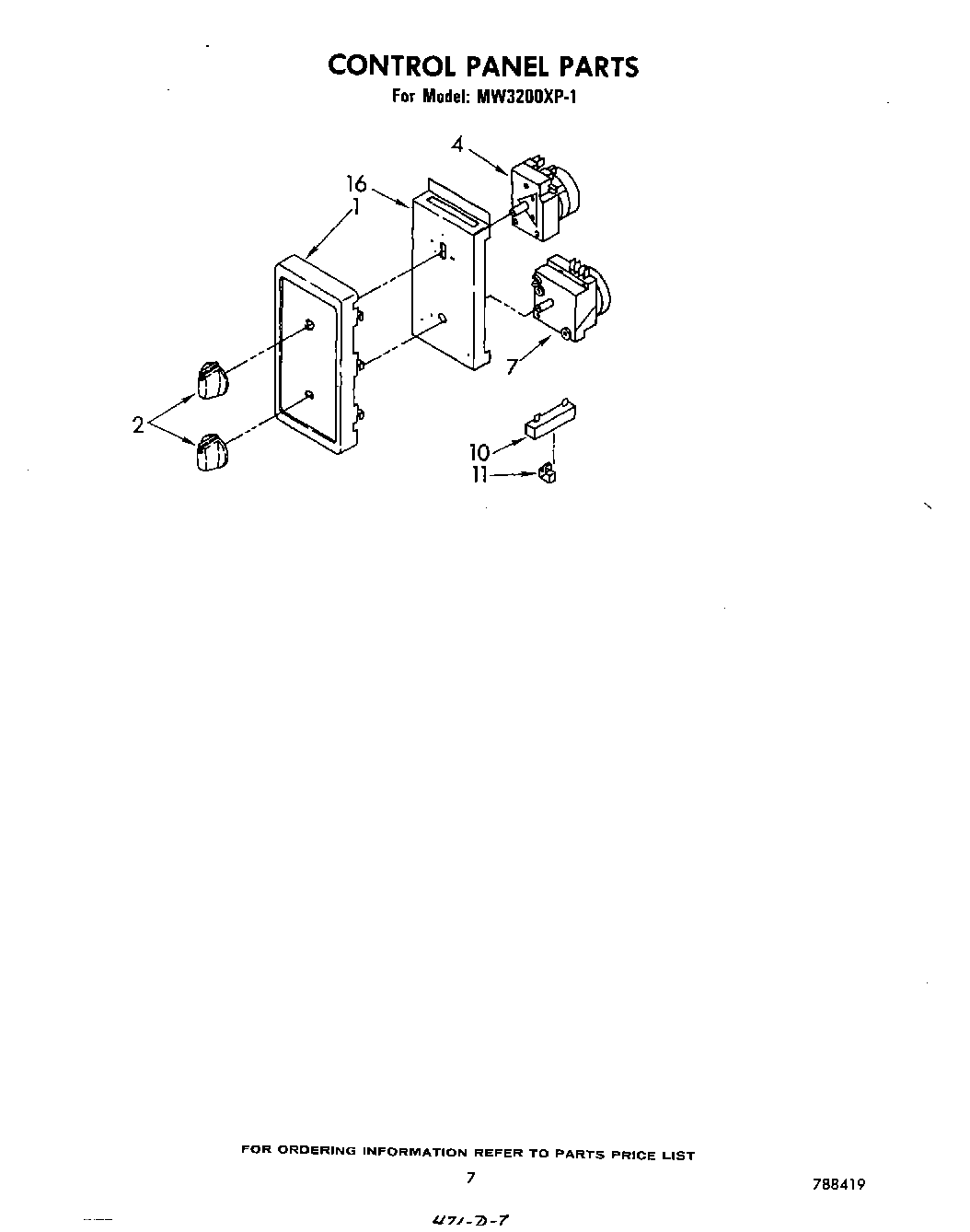

MW3200XP1 05 – CONTROL
Products
Position
Product
Cookbook
List, Repair Parts
Guide, Use & Care
1
Panel, Control (Includes Inlay)
2
Knob, Timer
4
Screw, 6-32 x 1/4 (2)
4
Timer (25 Minute)
7
Variable Power Selector
7
Screw, 6-32 x 1/2 Slotted Hex Washer Head (2)
10
Resistor, Surge
11
Screw, 8-32 x 3/8 Phillips Pan Head
11
Bracket, Surge Resistor
11
WP486255 Whirlpool Air Conditioner Nut
16
Plate, Component Mounting
16
WP482338 Whirlpool Refrigerator Adhesive
16
Wall Mount Kit
16
WP72107 Whirlpool Touchup
16
WP90767 Whirlpool Screw
16
Driver, Torx (T-20)
16
Under Cabinet Mounting Kit (Complete)
16
Paint, Cord Brown Spray (13 Oz.)
16
350956 Whirlpool Spray Assembly
←
