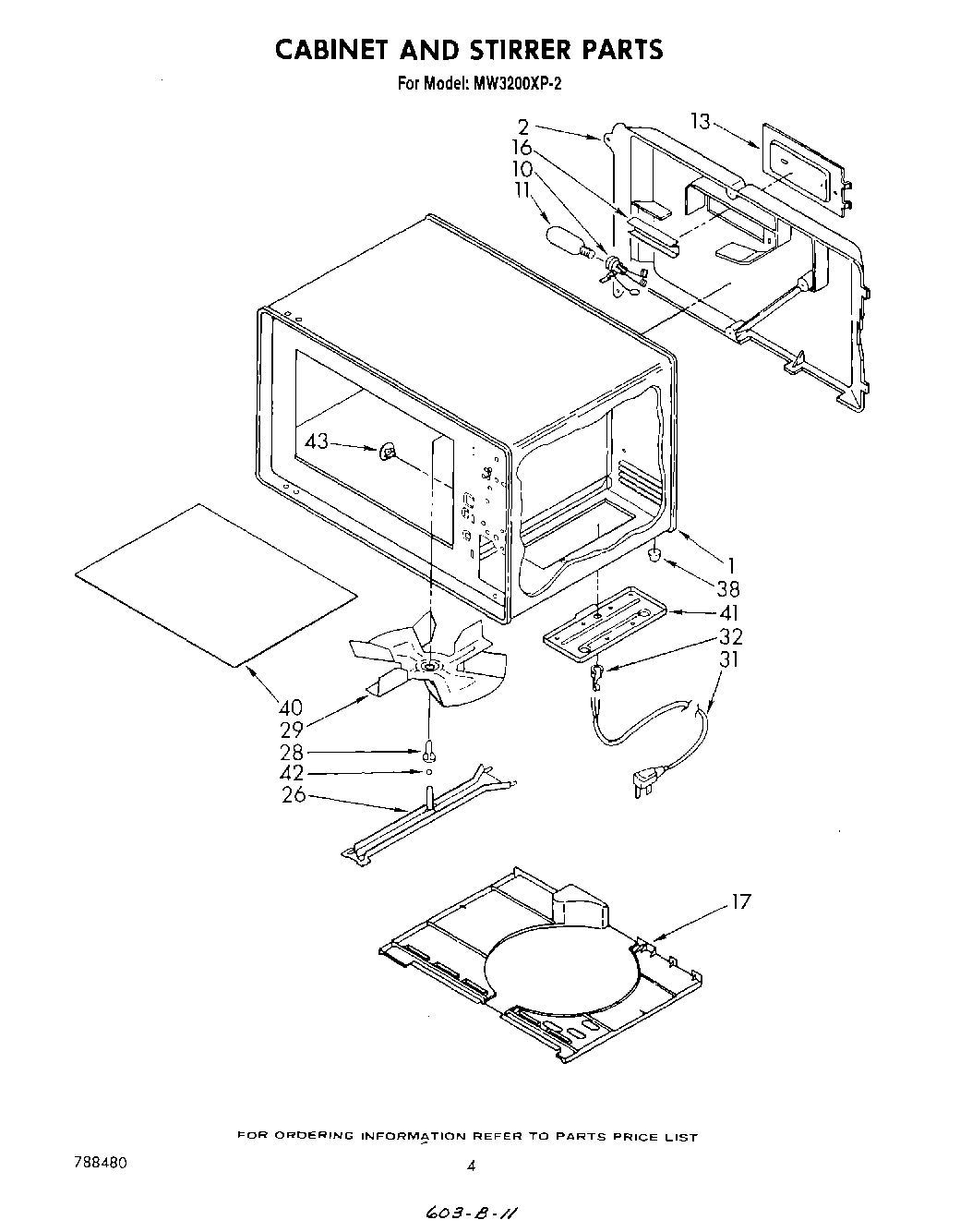

MW3200XP2 03 – CABINET AND STIRRER

MW3200XP2 03 – CABINET AND STIRRER

Written by

in

MW3200XP2 03 – CABINET AND STIRRER

Products

PositionProduct
1Cabinet, Complete (Not Serviceable)
2Cover, Rear
10Socket, Lamp
11Lamp
13Cover, Component
16Reflector
16Screw
16WP488130 Whirlpool Air Conditioner Nut
17Cover, Stirrer
26Support Bar, Stirrer
26Rivet
28Insert, Stirrer
29Blade, Stirrer
31WP486255 Whirlpool Air Conditioner Nut
31Clamp
31Cord, Power
31Washer, No.8
31Screw, 8-32 x 3/8
31Pop Rivet (8)
31Lockwasher, No.8
32Relief, Strain
38Foot (4)
38Rivet (4)
40Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41Clip (4)
41WP90767 Whirlpool Screw
41Panel, Access (Includes Illus. 38)
42Bearing, Stirrer
43Plug, Hole
