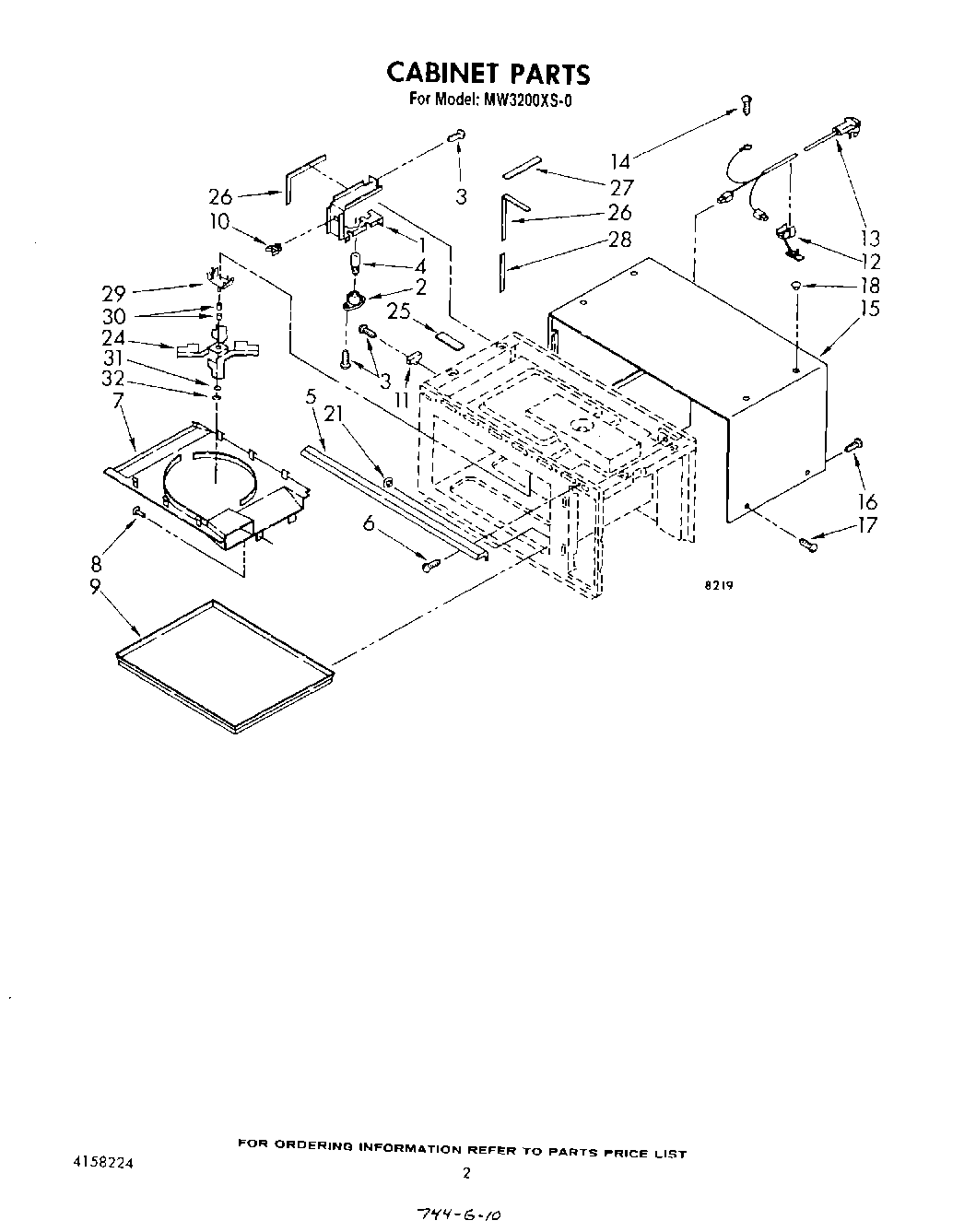

MW3200XS0 02 – CABINET
Written by
in
MW3200XS0 02 – CABINET
Products
Position
Product
1
Bracket, Light
2
Socket, Lamp
3
Screw (2)
4
Bulb
5
Switch Micro Primary/Secondary
6
Screw, 4 x 10mm
7
Cover, Stirrer
8
Rivet (3)
9
Shelf, Cavity
10
Clip, Wire
11
Fuse, Thermal
12
Strain Relief
13
Cord, Power
14
Screw (2)
15
Wrapper, Cabinet
16
W11380570 Whirlpool Microwave Screw
17
Screw
18
Plug, Hole (4)
21
Plug, Hole (4)
24
Blade, Stirrer
25
Foam
26
Strain Relief
27
Foam, Cabinet
28
Foam, Cabinet
29
Shaft, Blade
30
Bushing
31
Sliding Washer
32
Retainer
←
