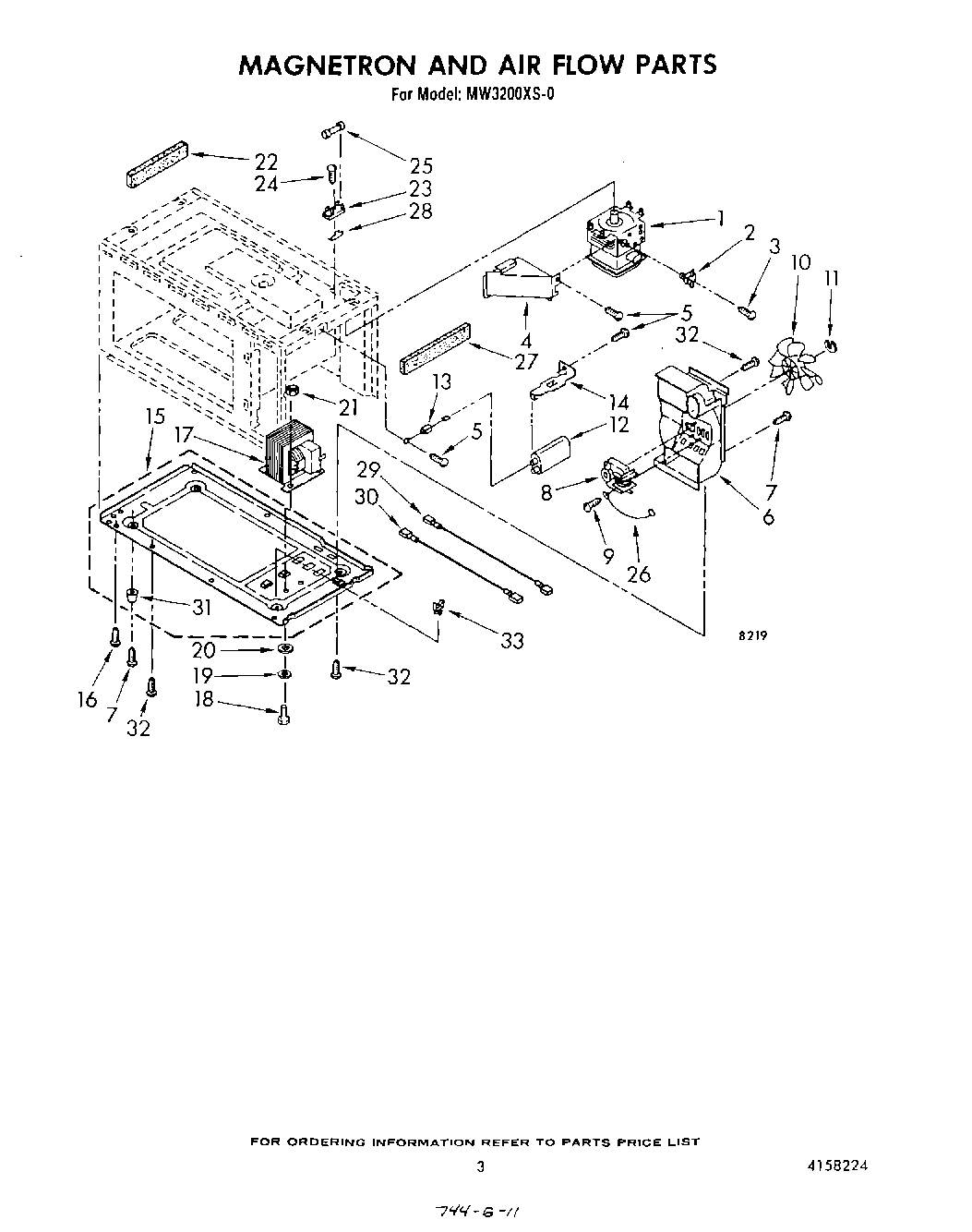

MW3200XS0 03 – MAGNETRON AND AIRFLOW
Written by
in
MW3200XS0 03 – MAGNETRON AND AIRFLOW
Products
Position
Product
1
Magnetron
2
Thermostat
3
Screw (2)
4
Duct, Air
5
W11380570 Whirlpool Microwave Screw
6
Cover, Fan
7
Screw
8
Motor, Fan
9
Screw (2)
10
Fan
11
E-Ring
12
Capacitor
13
Diode
14
Bracket, Capacitor
15
Plate, Base (Includes Illus. No. 31)
16
Screw (2)
17
Transformer
18
Screw, 5 x 16 mm (2)
19
Plain Washer
20
Washer (2)
21
Nut (2)
22
Foam, Duct (2)
23
Holder, Fuse
24
Screw (2)
25
Fuse
26
Lead, High Voltage
27
Foam, Fan Cover
28
Plate, Discharge
29
Screw (3)
30
Lead, High Voltage
31
Foot (4)
32
Screw
33
Clip, Wire
←
