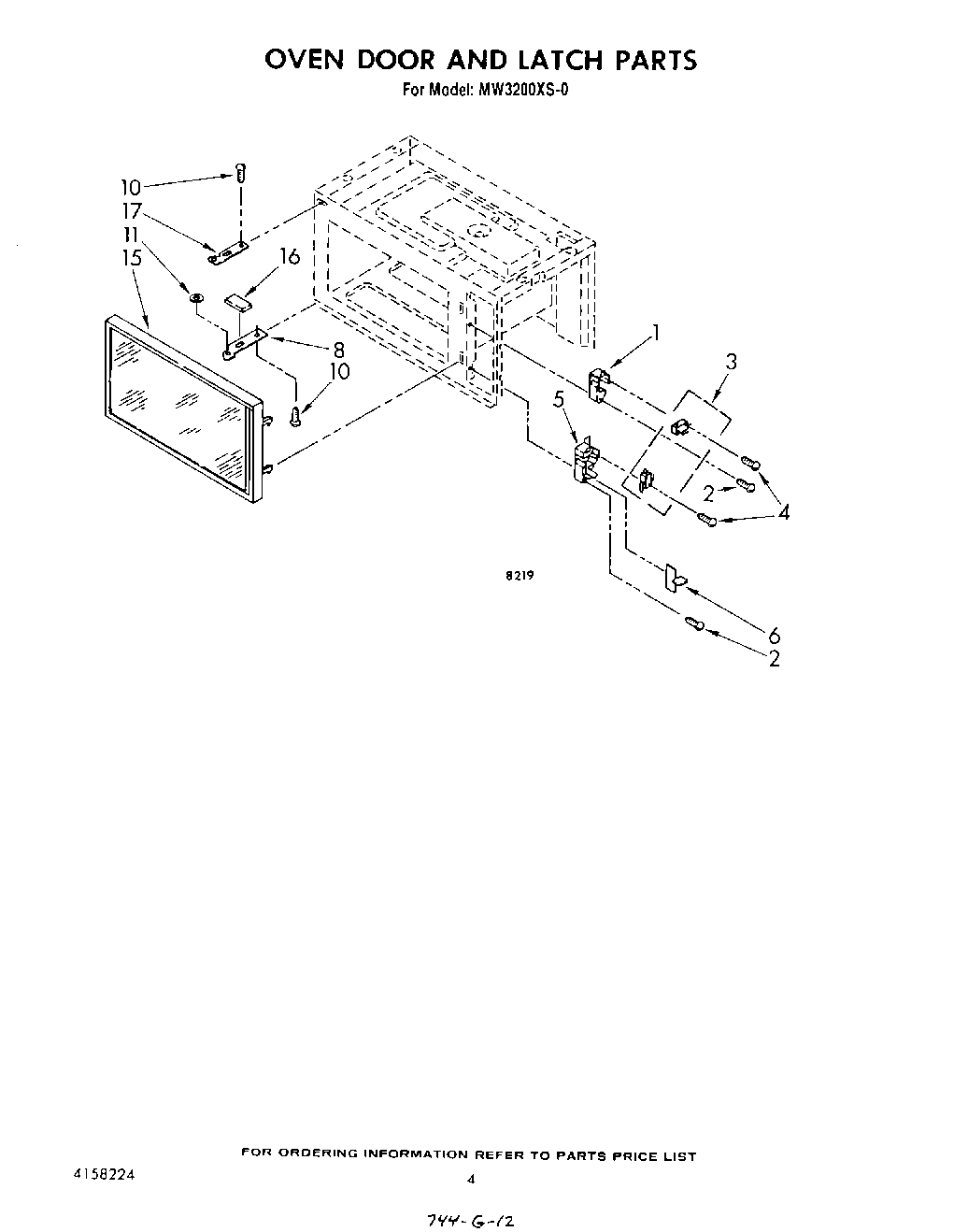

MW3200XS0 04 – OVEN DOOR AND LATCH

MW3200XS0 04 – OVEN DOOR AND LATCH

Written by

in

MW3200XS0 04 – OVEN DOOR AND LATCH

Products

PositionProduct
1Latch, Upper
2Screw
3Interlock, Switch Kit (Both switches must be replaced if one fails.)
4Screw (2)
5Latch, Lower
6Rod, Release
8Hinge Plate, Lower
10Screw (2)
11Hinge Washer
15Door, Complete
16Foam
17Hinge Plate, Upper
