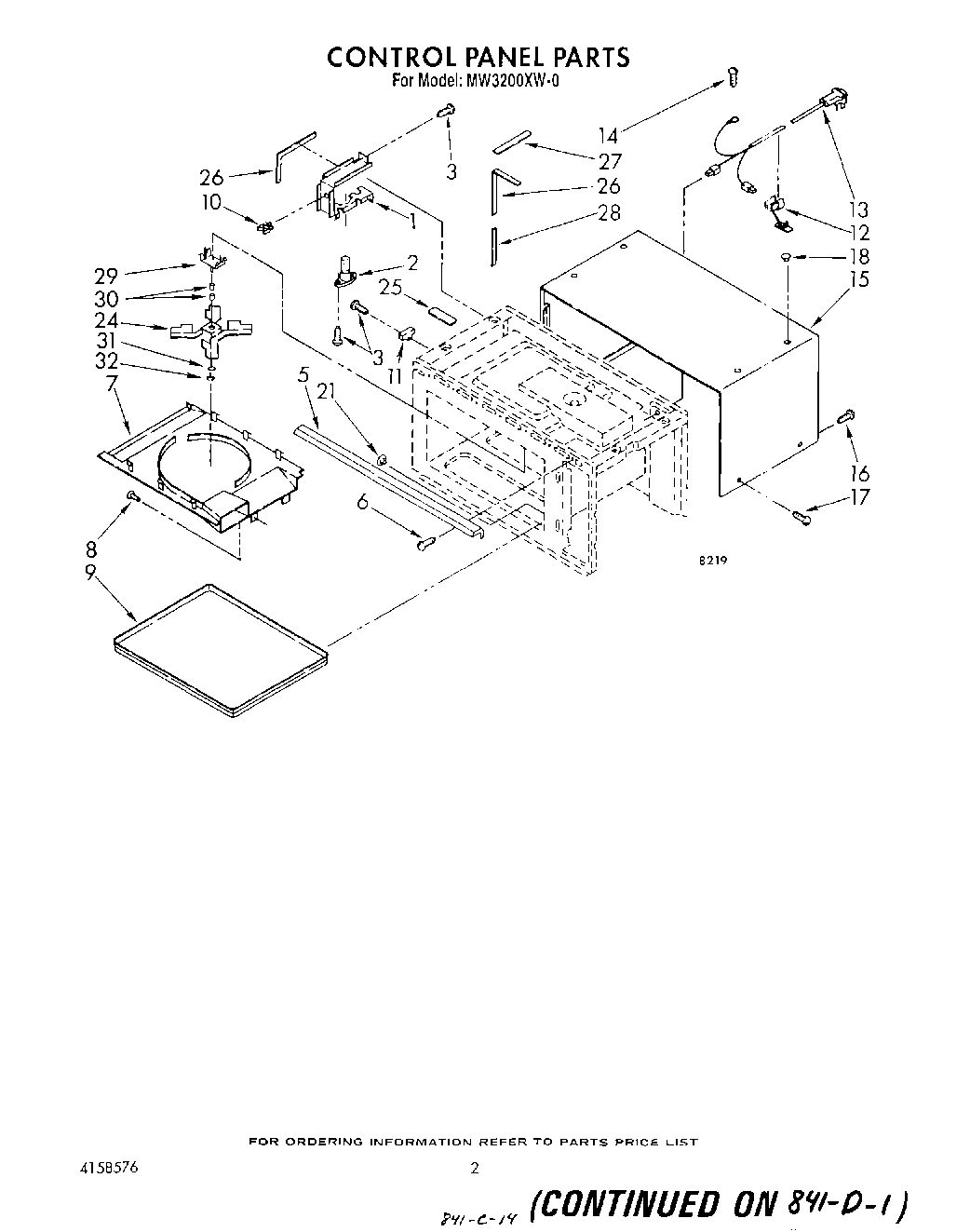

MW3200XW0 02 – CONTROL PANELadmin2025-04-26T08:44:33+00:00MW3200XW0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Bracket, Light |
| 2 | Base Less Light |
| 3 | Screw (2) |
| 5 | Switch Micro Primary/Secondary |
| 6 | Screw, 4 x 10mm |
| 7 | Cover, Stirrer |
| 8 | Rivet (3) |
| 9 | Tray, Glass |
| 10 | Wire Holder (4) |
| 11 | Thermal Fuse |
| 12 | Strain Relief |
| 13 | Cord, Power |
| 14 | Screw (2) |
| 15 | Wrapper, Cabinet |
| 16 | W11380570 Whirlpool Microwave Screw |
| 17 | Screw |
| 18 | Plug, Hole (4) |
| 21 | Plug, Hole (4) |
| 24 | Blade, Stirrer |
| 25 | Foam |
| 26 | Strain Relief |
| 27 | Foam, Cabinet |
| 28 | Foam, Cabinet |
| 29 | Shaft, Blade |
| 30 | Shaft Bushing |
| 31 | Sliding Washer |
| 32 | Lock Washer |
