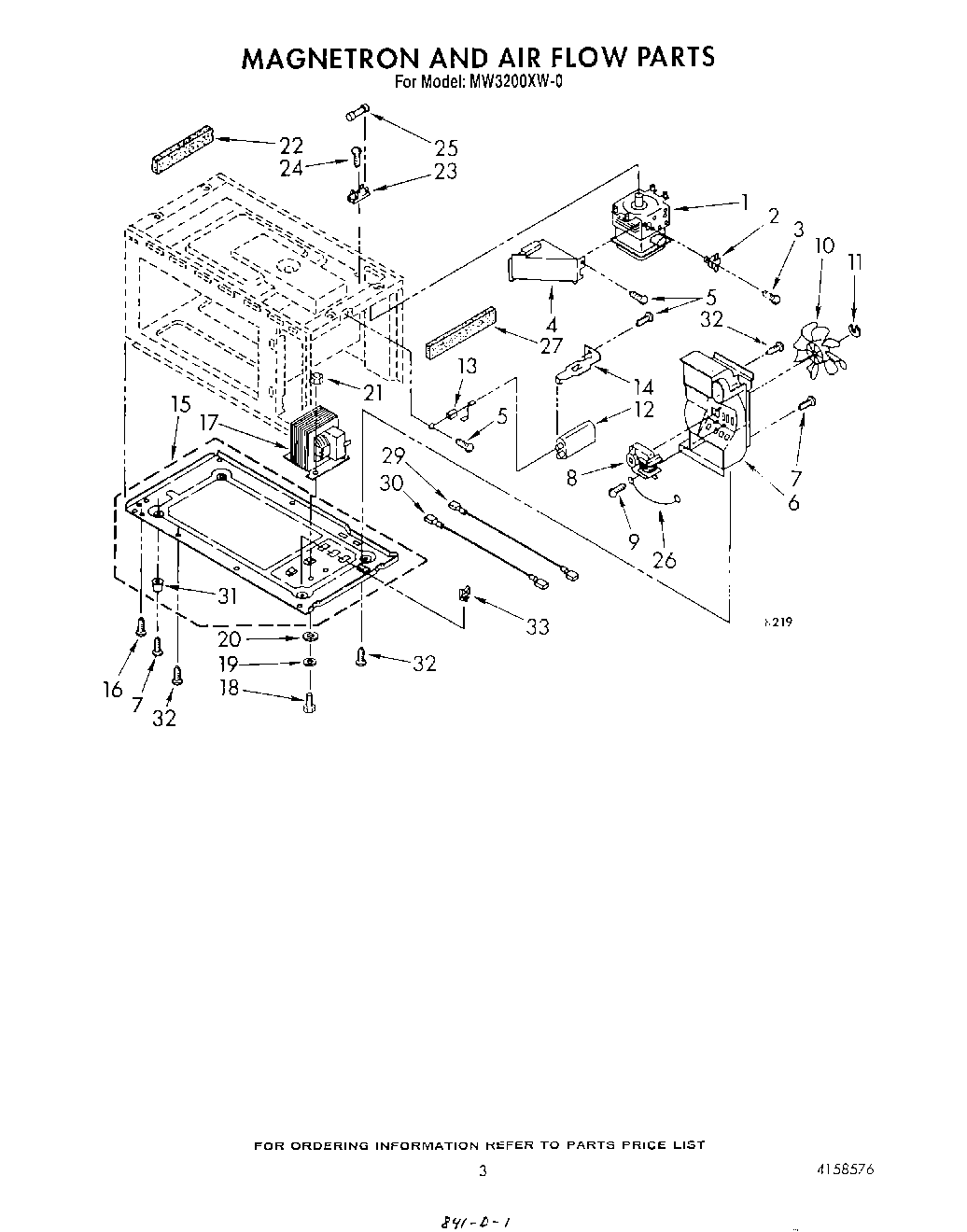

MW3200XW0 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Thermostat
3	Screw (2)
4	Duct, Air
5	W11380570 Whirlpool Microwave Screw
6	Cover, Fan
7	Screw
8	Motor, Fan
9	Screw (2)
10	Fan
11	E-Ring
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
15	Plate, Base (Includes Illus. No. 31)
16	Screw (2)
17	Transformer
18	Screw, 5 x 16 mm (2)
19	Plain Washer
20	Washer (2)
21	Nut (2)
22	Foam, Duct (2)
23	Holder, Fuse
24	Screw (2)
25	Fuse
26	Lead, High Voltage
27	Foam, Fan Cover
29	Screw (3)
30	Lead, High Voltage
31	Leg (4)
32	Screw
33	Clip, Wire
