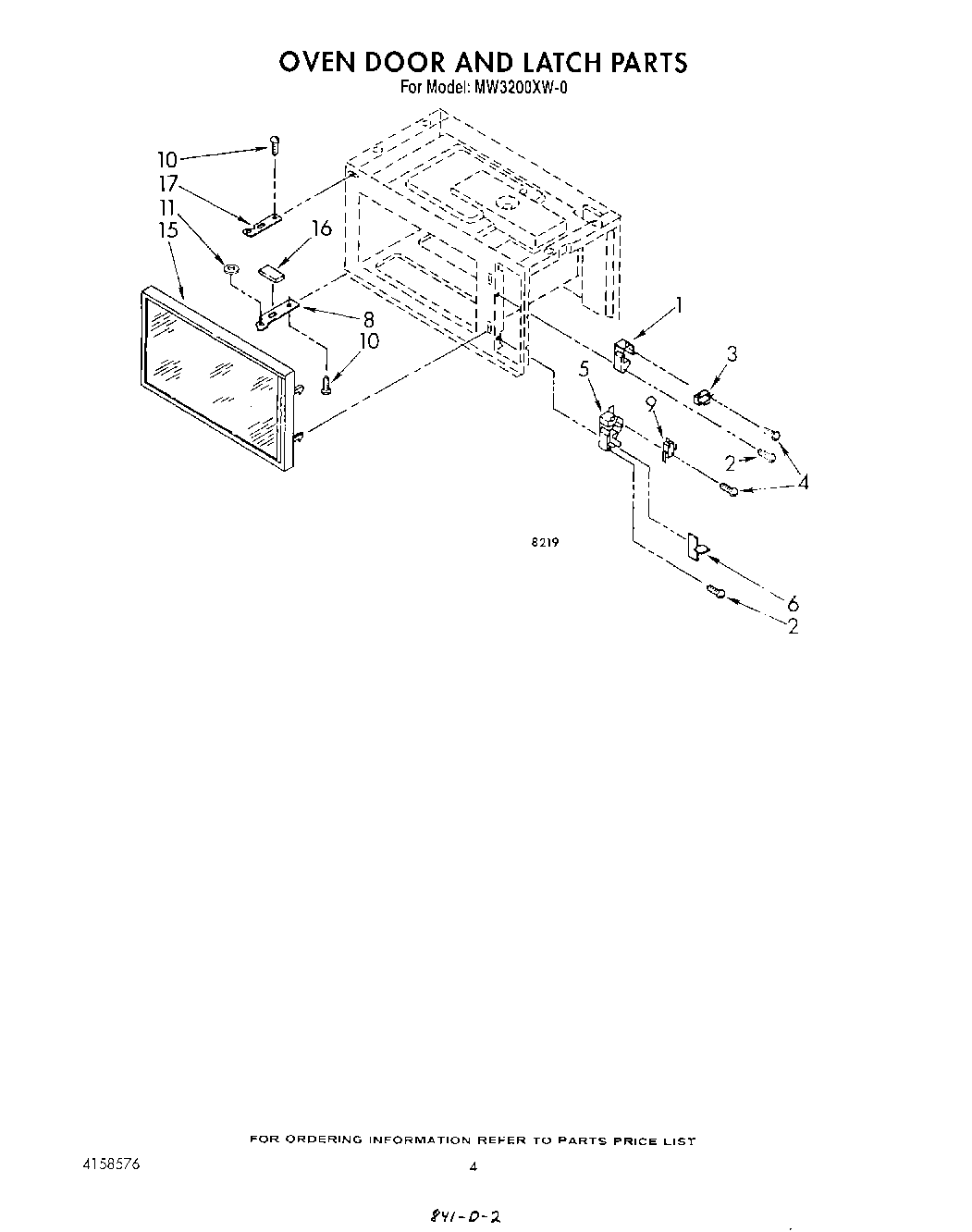

MW3200XW0 04 – OVEN DOOR AND LATCH

Written by

Products

Position	Product
1	Latch, Upper
2	Screw
3	4392027 Whirlpool Microwave Primary Switch
4	Screw (2)
5	Latch, Lower
6	Rod, Release
8	Hinge Plate, Lower
9	Switch, Monitor
10	Screw (2)
11	Hinge Washer
15	Door, Complete
16	Foam
17	Hinge Plate, Upper
