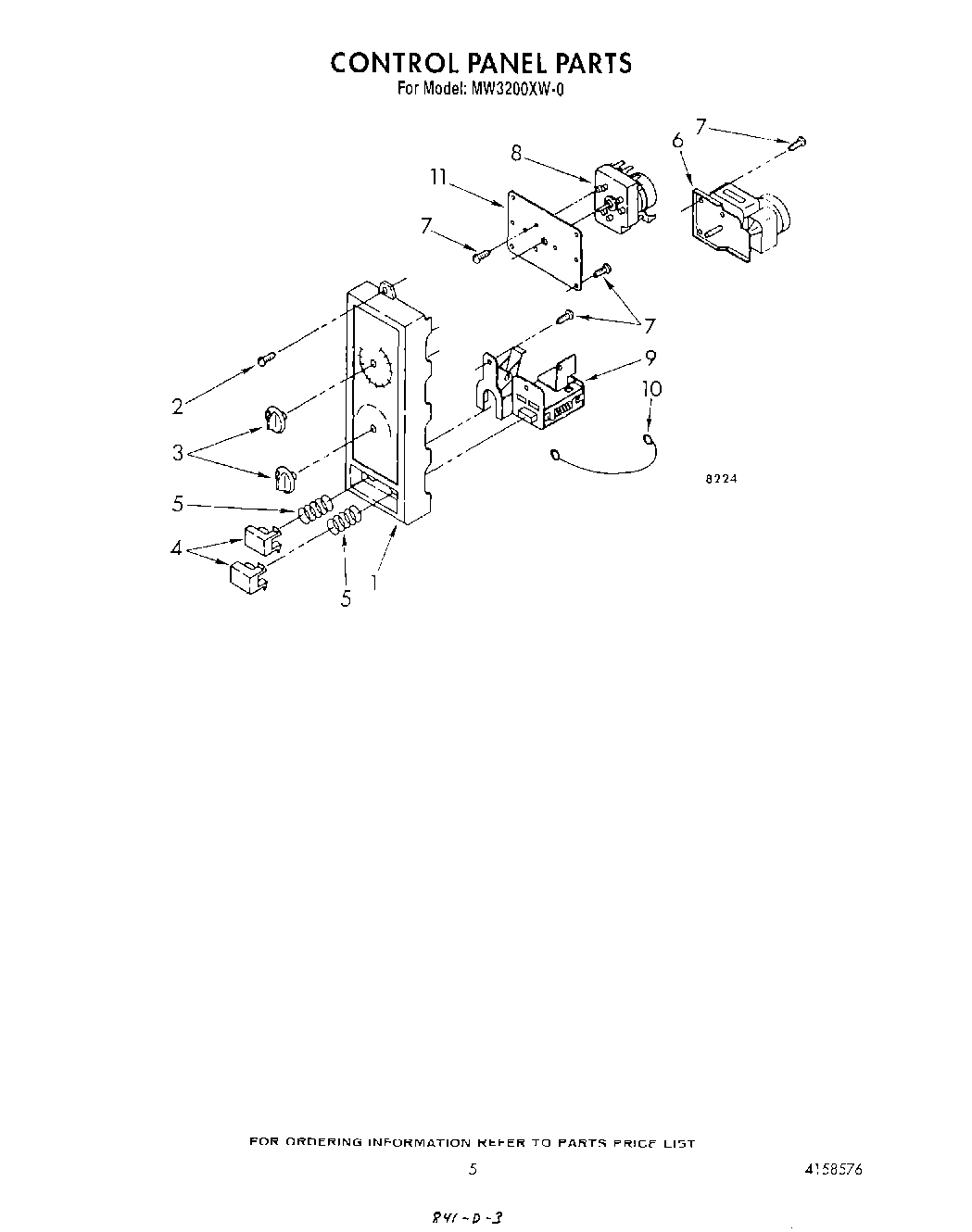

MW3200XW0 05 – CONTROL PANEL

Written by

Products

Position	Product
1	Frame, Control Panel
2	Screw, 4 x 10mm
3	Knob
4	Button, Push To Start
5	WP4158178 Whirlpool Microwave Spring
6	Variable Power Control
7	W11380570 Whirlpool Microwave Screw
8	Timer
9	Switch, Start
10	Wire, Ground
11	Bracket, Timer
