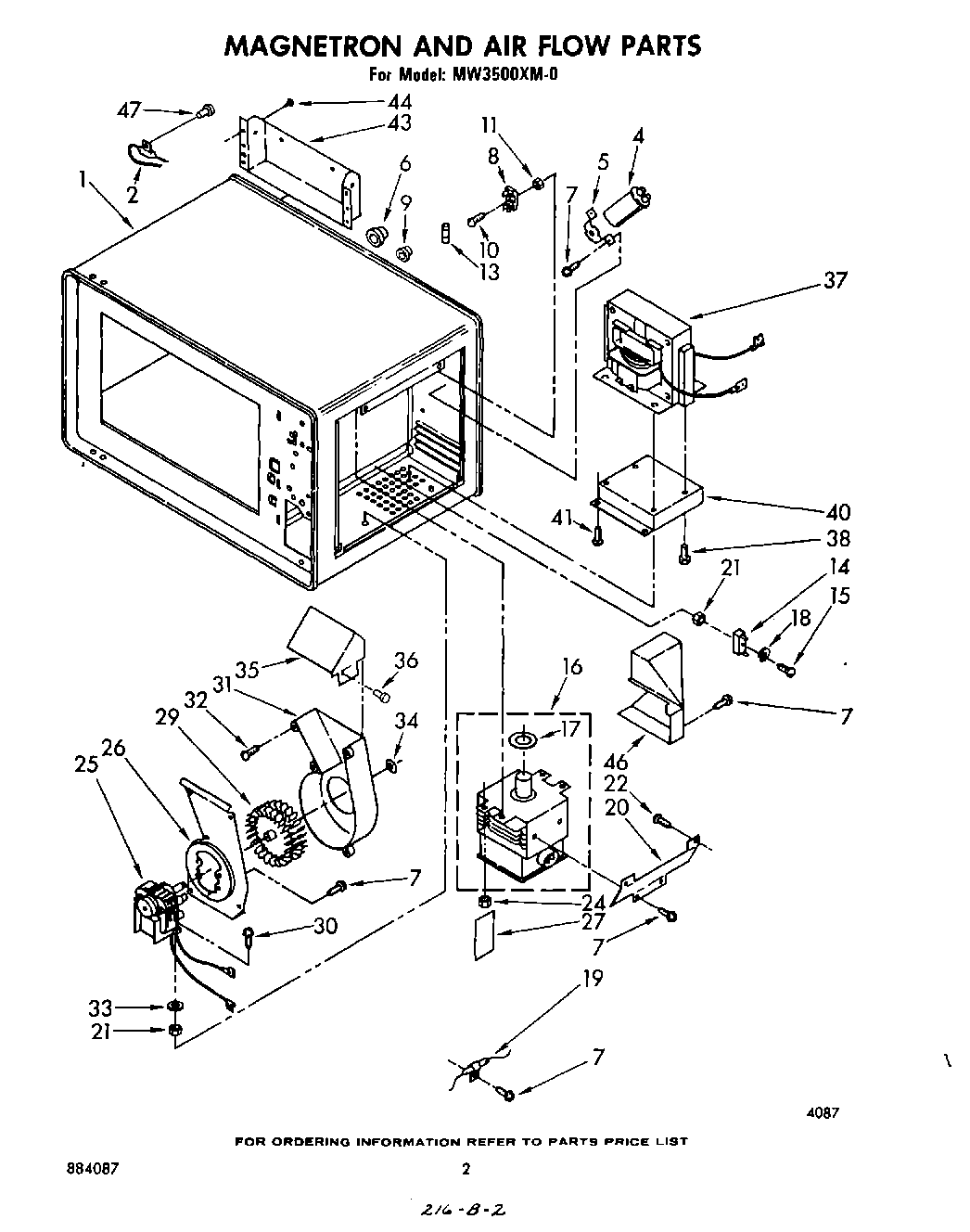

MW3500XM0 02 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Cavity Assembly (Not Serviceable)
2	Protector, Thermal
4	Capacitor
5	Bracket, Capacitor Mounting
6	Bushing, Large
7	WP90767 Whirlpool Screw
8	Holder, Fuse
9	Bushing, Small
10	Screw, 4-40 x 1/4 Phillips Pan Head
11	Nut, 4-40
13	Fuse (15 Amp)
14	Diode
15	Screw, 8-32 x 3/8 Phillips Pan Head
16	Magnetron (Includes Gasket)
17	Gasket, Magnetron
18	Lockwasher No.8
19	Thermal Protector, Magnetron
20	Support, Magnetron
21	WP486255 Whirlpool Air Conditioner Nut
22	Screw, 6-32 x 1/4 Phillips Pan Head
24	Nut, 5mm (4)
25	Motor, Blower
26	Bracket, Blower
27	Foil Tape
29	Wheel, Blower
30	WP250830 Whirlpool Refrigerator Screw
31	Housing, Blower
32	Screw, 8-18 x 1/2 (3)
33	Washer No.8 (4)
34	E-Ring, Blower Wheel
35	Duct, Blower
36	Rivet
37	Transformer
38	Bolt, 10-32 x 1-3/8 (2)
40	Support, Transformer
41	S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
43	NO LONGER AVAILABLE
44	Rivet (2)
46	Duct, Cavity
47	Rivet
