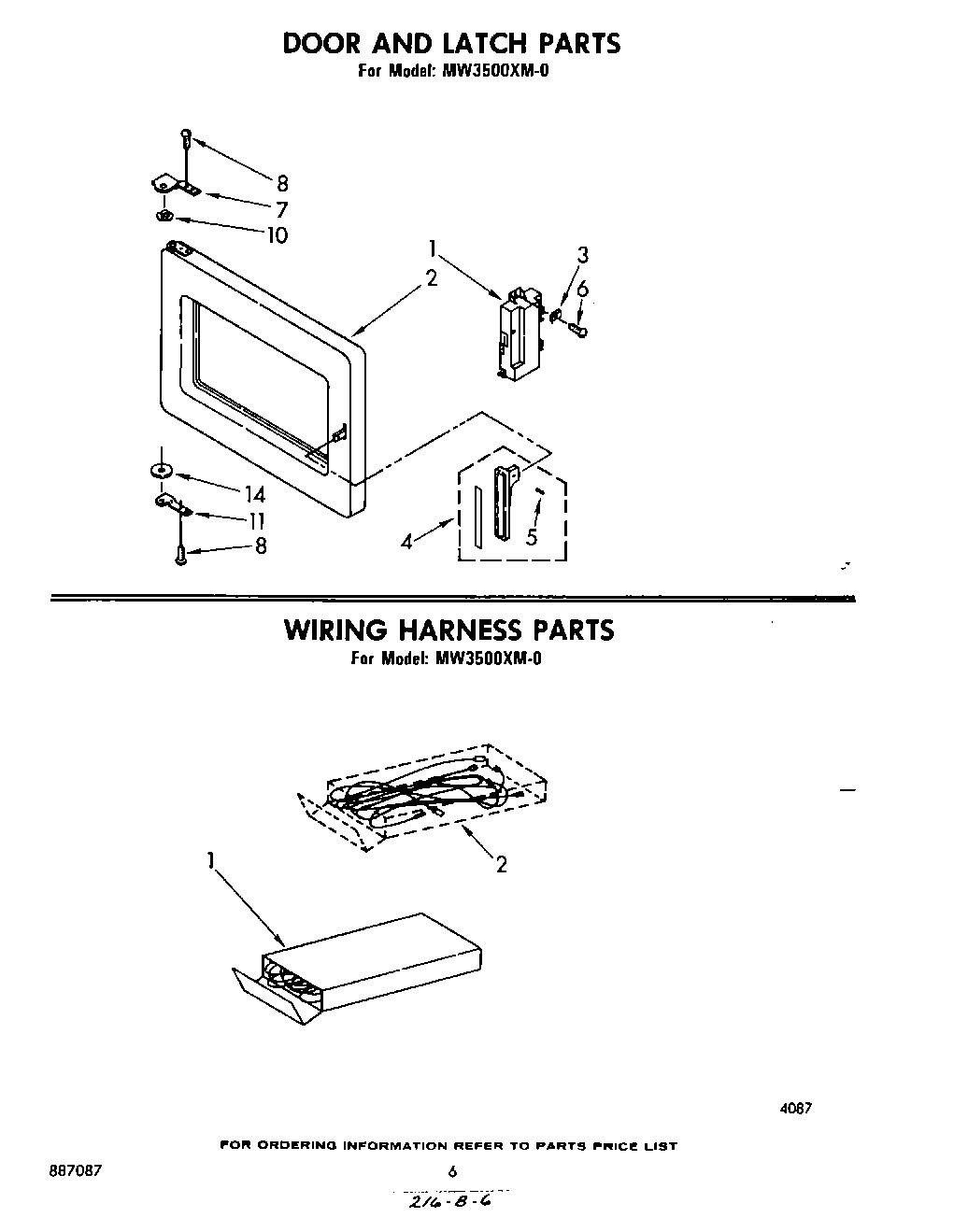

MW3500XM0 04 – DOOR AND LATCH, WIRING HARNESS
Written by
in
MW3500XM0 04 – DOOR AND LATCH, WIRING HARNESS
Products
Position
Product
1
Module, Interlock Switch
1
Complete Wiring Harness
2
Door, Complete (Includes Illus. 4 And Crows Foot Driver)
2
High Voltage Lead Kit (Magnetron)
3
Clip, Switch Mounting (2)
4
Handle Assembly (Include Inlay)
5
Pin, Handle Mounting
6
WP250830 Whirlpool Refrigerator Screw
7
Hinge Assembly (Upper)
8
Screw, 8-32 x 1/4
10
Washer, Wave (Upper Hinge Pin)
11
Hinge Assembly (Lower)
14
Washer, Nylon (Lower Hinge Pin)
←
