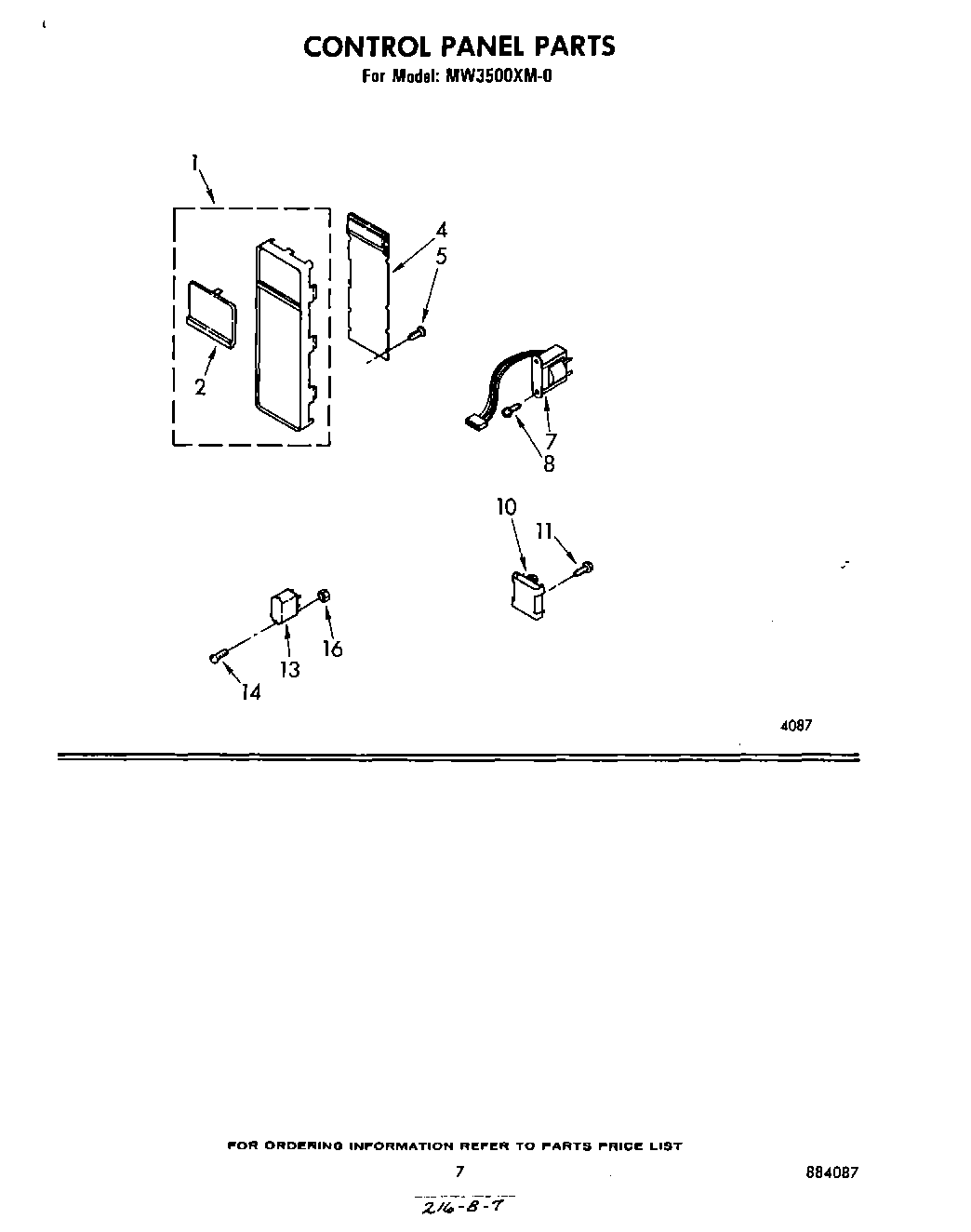

MW3500XM0 05 – CONTROL PANEL, LITERATURE AND OPTIONAL

Products

PositionProduct
1Touch Panel
2Display Window
4Microcomputer
5Screw, 6-32 x 1/4 Phillips Pan Head
7Transformer, Low Voltage
8WP90767 Whirlpool Screw
10Triac
11Screw, 6AB x 3/8 Hex Washer Head (4)
13Relay
14Screw, 8-32 x 1/2
16Guide, Use & Care
16WP482338 Whirlpool Refrigerator Adhesive
16WP486255 Whirlpool Air Conditioner Nut
16Guide, Cooking
16Cookbook
16Instructions, Installation
16Built-In Kit (Complete)
16Wall Mounting Kit (Complete)
16List, Repair Parts
