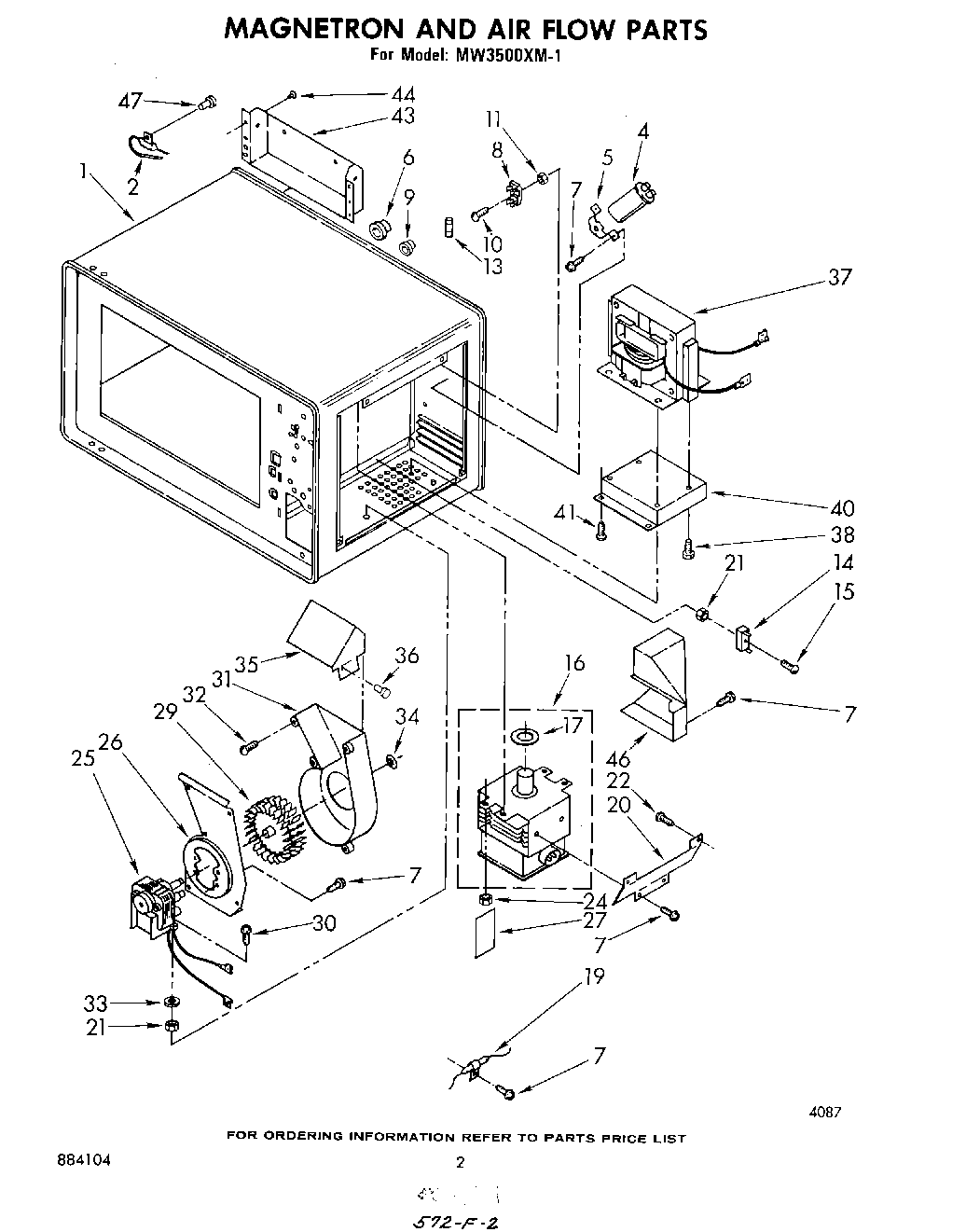

MW3500XM1 02 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Cavity Assembly (Not Serviceable)
2	Protector, Thermal
4	Capacitor
5	Bracket, Capacitor Mounting
6	Bushing, Large
7	WP90767 Whirlpool Screw
8	Holder, Fuse
9	Bushing, Small
10	Screw, 4-40 x 1/4 Phillips Pan Head
11	Nut, 4-40
13	Fuse (15 Amp)
14	Diode
15	WP250830 Whirlpool Refrigerator Screw
16	Magnetron (Includes Gasket)
17	Gasket, Magnetron
19	Thermal Protector, Magnetron
20	Support, Magnetron
21	WP486255 Whirlpool Air Conditioner Nut
22	Screw, 6-32 x 1/4 Phillips Pan Head
24	Nut, 5mm (4)
25	Motor, Blower
26	Bracket, Blower
27	Foil Tape
29	Wheel, Blower
31	Housing, Blower
32	Screw, 8-18 x 1/2 (3)
33	Washer No.8 (4)
34	E-Ring, Blower Wheel
35	Duct, Blower
36	Rivet
37	Transformer
38	Bolt, 10-32 x 1-3/8 (2)
40	Support, Transformer
41	S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
43	NO LONGER AVAILABLE
44	Rivet (2)
46	Duct, Cavity
47	Rivet
