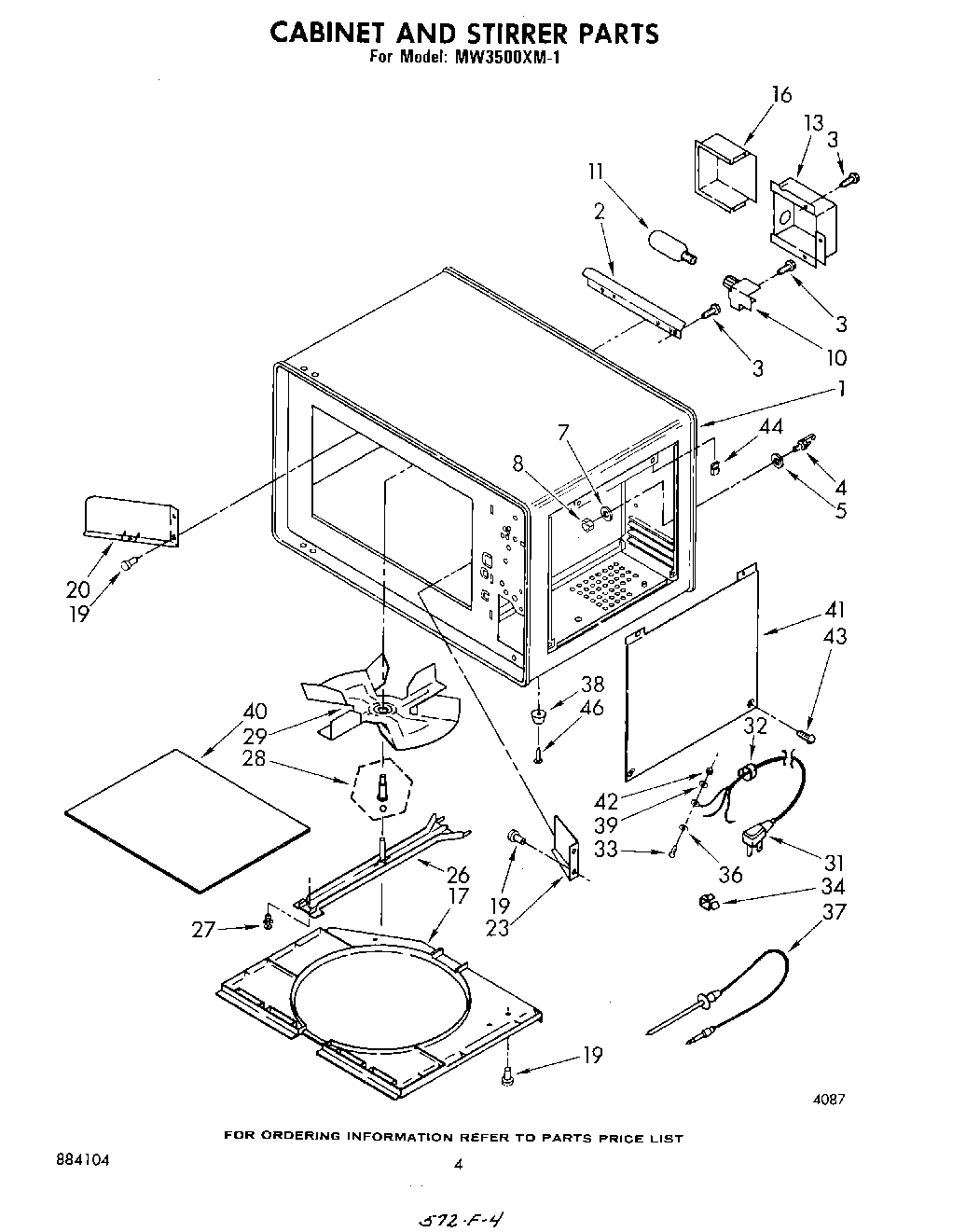

MW3500XM1 03 – CABINET AND STIRRER

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Wire Cover
3	WP90767 Whirlpool Screw
4	Jack, Probe
5	Washer, 3/8
7	Lockwasher 3/8
8	Nut, 8/3-32
10	Lamp Socket & Bracket
11	Lamp
13	Cover, Component
16	Cover, Light
17	Cover, Stirrer
19	Rivet
20	Baffle, Left Air
23	Baffle, Right Air
26	Support Bar, Stirrer
27	Rivet
28	Insert, Stirrer (Includes Bearing)
29	Blade, Stirrer
31	Cord, Power
32	Relief, Strain
33	Screw, 8-32 x 3/8
34	Clip, Wire
36	Washer, No.8
37	Probe, Temperature
38	Foot (4)
39	Lockwasher, No.8
40	Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41	Panel, Access
42	WP486255 Whirlpool Air Conditioner Nut
43	WP488729 Whirlpool Refrigerator Door Screw
44	Clip, Access Panel (2)
46	Rivet
