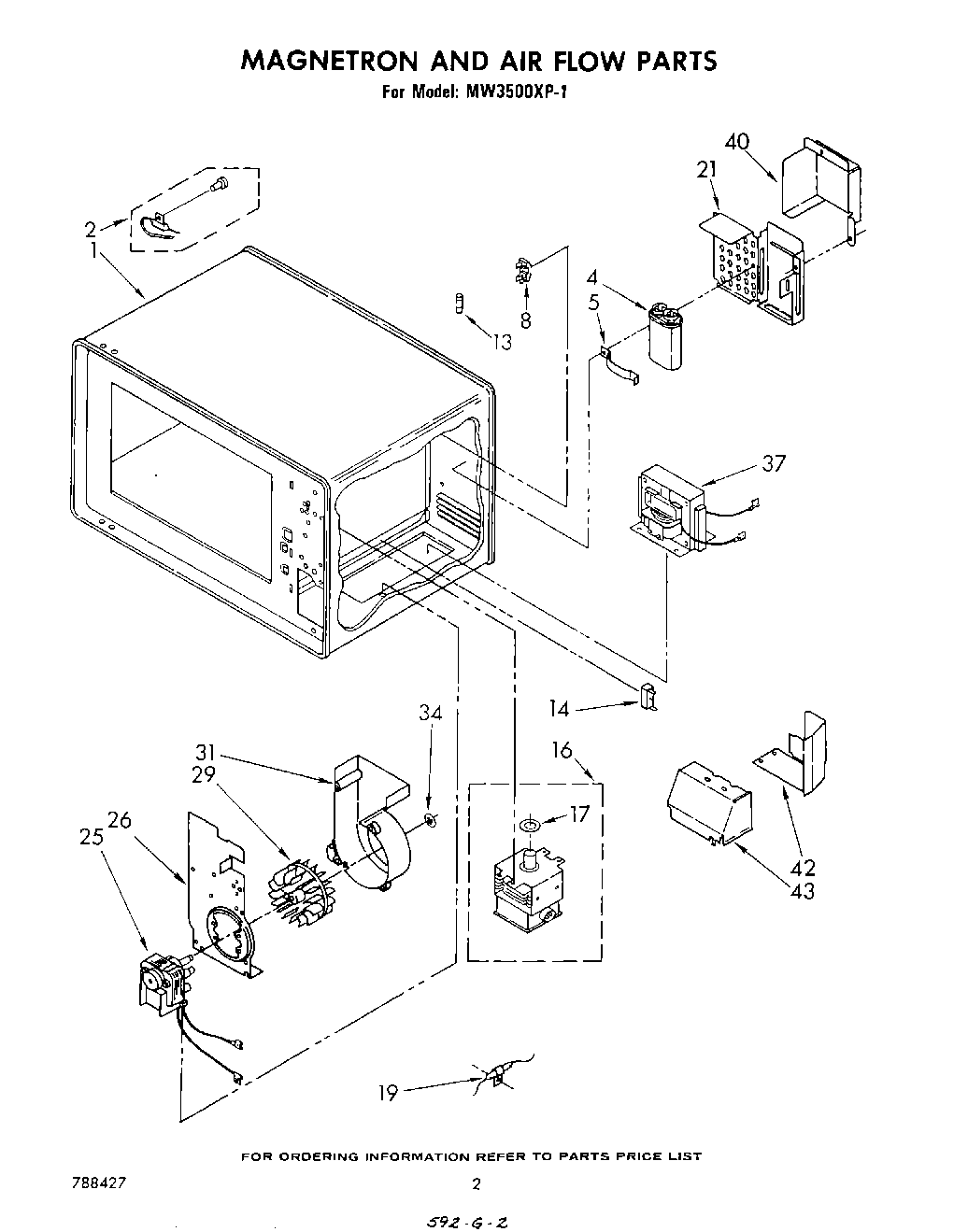

MW3500XP1 02 – MAGNETRON AND AIR FLOW

MW3500XP1 02 – MAGNETRON AND AIR FLOW

Written by

in

MW3500XP1 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Cavity, Complete (Not Serviceable)
2Protector, Thermal
4Capacitor
5Bracket, Capacitor Mounting
8Nut, 4-40
8Screw, 4-40 x 1/4 Phillips Pan Head
8Holder, Fuse
13Fuse (15 Amp)
14Diode
16Nut, 5mm (4)
16Magnetron (Includes Illus. No.17)
17Gasket, Magnetron
19Thermal Protector, Magnetron
21Cover, Capacitor
25Washer No.8 (4)
25WP250830 Whirlpool Refrigerator Screw
25Motor, Blower (Includes Illus. 34)
25Diode
26Bracket, Blower
29Wheel, Blower (Includes Illus. NO. 34)
31Screw, 8-18 x 1/2 (3)
31Housing, Blower (Includes Illus. 34)
34E-Ring, Blower Wheel
37S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
37Transformer
40Cover, Lead
42Air Duct, Front
43Air Duct, Rear
43WP90767 Whirlpool Screw
