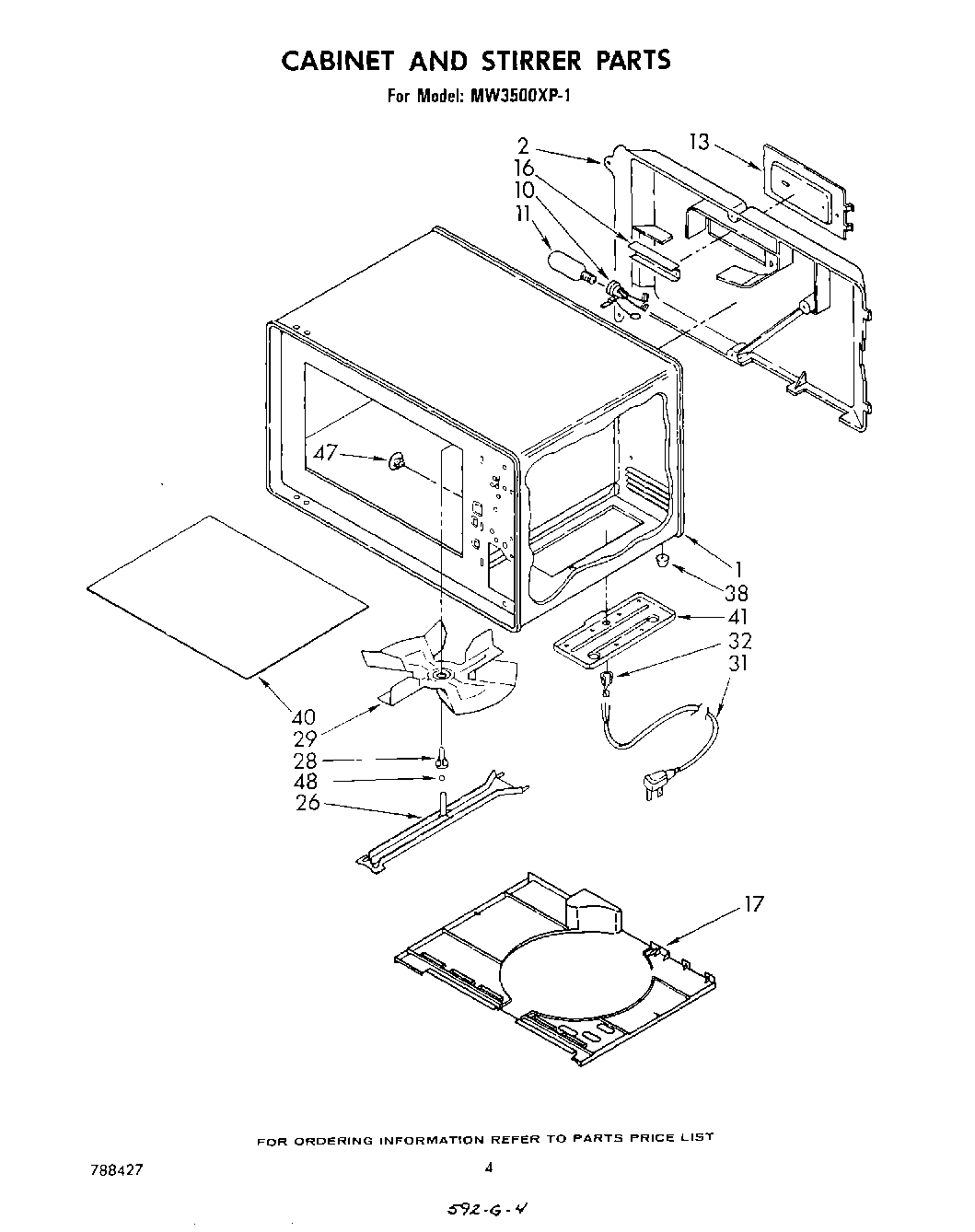

MW3500XP1 03 – CABINET AND STIRRER

MW3500XP1 03 – CABINET AND STIRRER

Written by

in

MW3500XP1 03 – CABINET AND STIRRER

Products

PositionProduct
1Cabinet, Complete (Not Serviceable)
2Cover, Rear
10Socket, Lamp
11Lamp
13Cover, Component
16Reflector
16WP488130 Whirlpool Air Conditioner Nut
16Screw
17Cover, Stirrer
26Support Bar, Stirrer
26Rivet
28Insert, Stirrer
29Blade, Stirrer
31Lockwasher, No.8
31Washer, No.8
31Screw, 8-32 x 3/8
31Cord, Power
31Clamp
31WP486255 Whirlpool Air Conditioner Nut
32Relief, Strain
38Rivet (4)
38Foot (4)
40Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41Clip (4)
41Panel, Access (Includes Illus. 38)
41WP90767 Whirlpool Screw
47Plug, Hole
48Bearing, Stirrer
