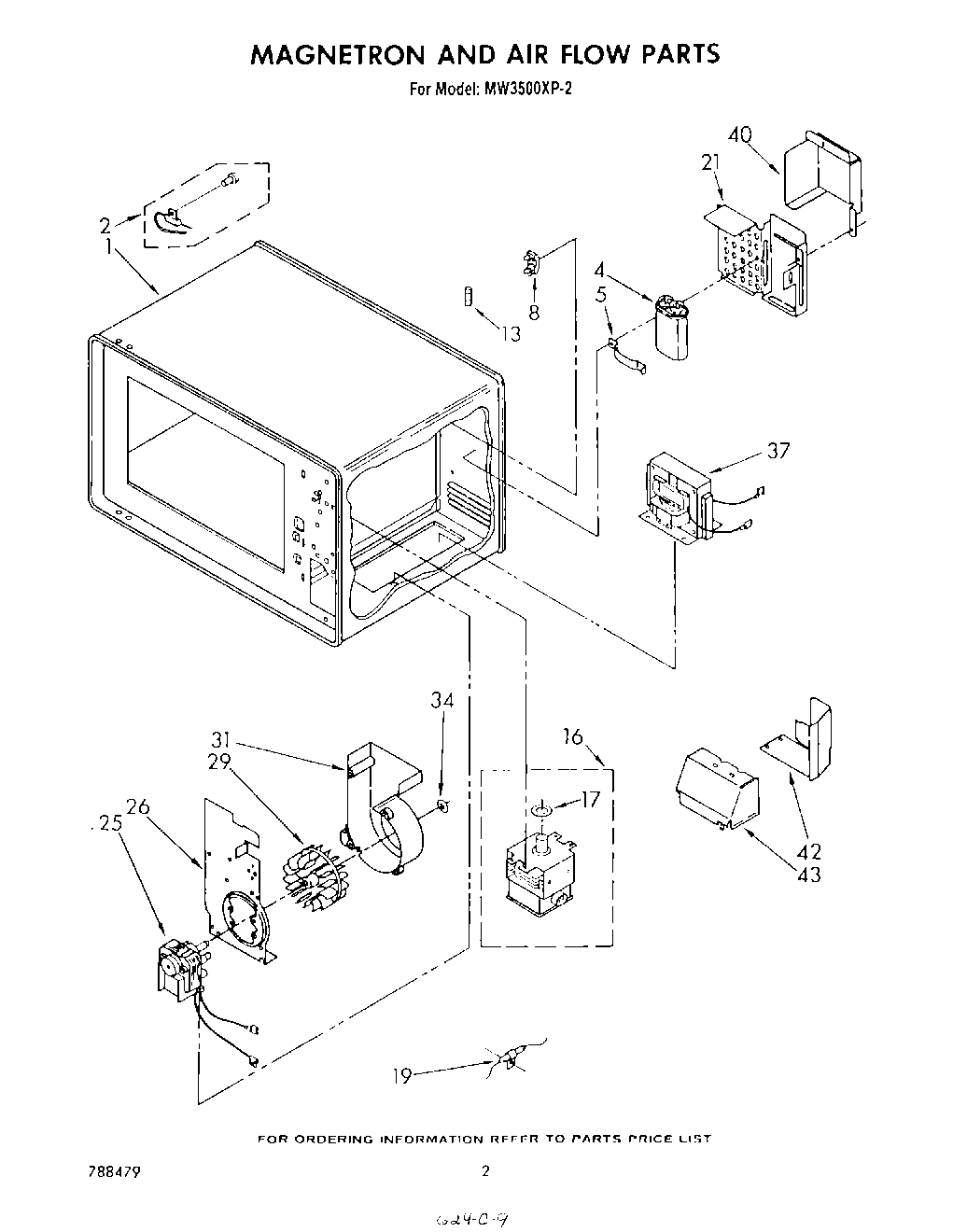

MW3500XP2 02 – MAGNETRON AND AIRFLOWadmin2025-04-26T08:44:48+00:00MW3500XP2 02 – MAGNETRON AND AIRFLOW
Products
| Position | Product |
|---|
| 1 | Cavity, Complete (Not Serviceable) |
| 2 | Protector, Thermal |
| 4 | Capacitor / Diode |
| 5 | Bracket, Capacitor Mounting |
| 8 | Holder, Fuse |
| 8 | Screw, 4-40 x 1/4 Phillips Pan Head |
| 8 | Nut, 4-40 |
| 13 | Fuse (15 Amp) |
| 16 | Nut, 5mm (4) |
| 16 | Magnetron (Includes Illus. No.17) |
| 17 | Gasket, Magnetron |
| 19 | Thermal Protector, Magnetron |
| 21 | Cover, Capacitor |
| 25 | Diode |
| 25 | WP250830 Whirlpool Refrigerator Screw |
| 25 | Motor, Blower (Includes Illus. 34) |
| 25 | Washer No.8 (4) |
| 26 | Bracket, Blower |
| 29 | Wheel, Blower (Includes Illus. NO. 34) |
| 31 | Screw, 8-18 x 1/2 (3) |
| 31 | Housing, Blower (Includes Illus. 34) |
| 34 | E-Ring, Blower Wheel |
| 37 | S\cr\ew, 10-32 x 3/8 Hex Washer Head (4) |
| 37 | Transformer |
| 40 | Cover, Lead |
| 42 | Air Duct, Front |
| 43 | Air Duct, Rear |
| 43 | WP90767 Whirlpool Screw |
