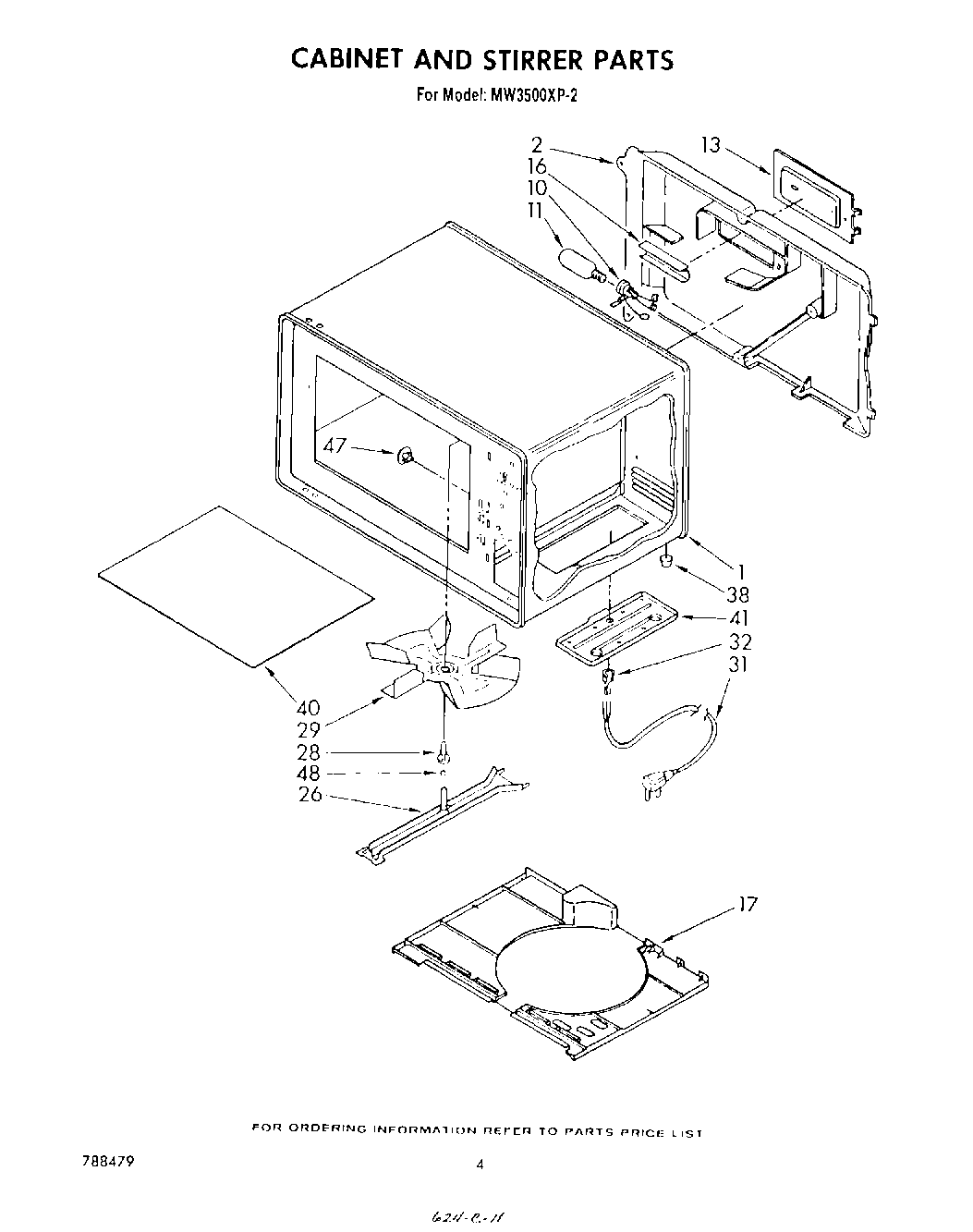

MW3500XP2 03 – CABINET AND STIRRER

Products

Position	Product
1	Cabinet, Complete (Not Serviceable)
2	Cover, Rear
10	Socket, Lamp
11	Lamp
13	Cover, Component
16	Reflector
16	WP488130 Whirlpool Air Conditioner Nut
16	Screw
17	Cover, Stirrer
26	Support Bar, Stirrer
26	Rivet
28	Insert, Stirrer
29	Blade, Stirrer
31	Lockwasher, No.8
31	Washer, No.8
31	Screw, 8-32 x 3/8
31	Cord, Power
31	Clamp
31	WP486255 Whirlpool Air Conditioner Nut
32	Relief, Strain
38	Rivet (4)
38	Foot (4)
40	Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41	Clip (4)
41	Panel, Access (Includes Illus. 38)
41	WP90767 Whirlpool Screw
47	Plug, Hole
48	Bearing, Stirrer
