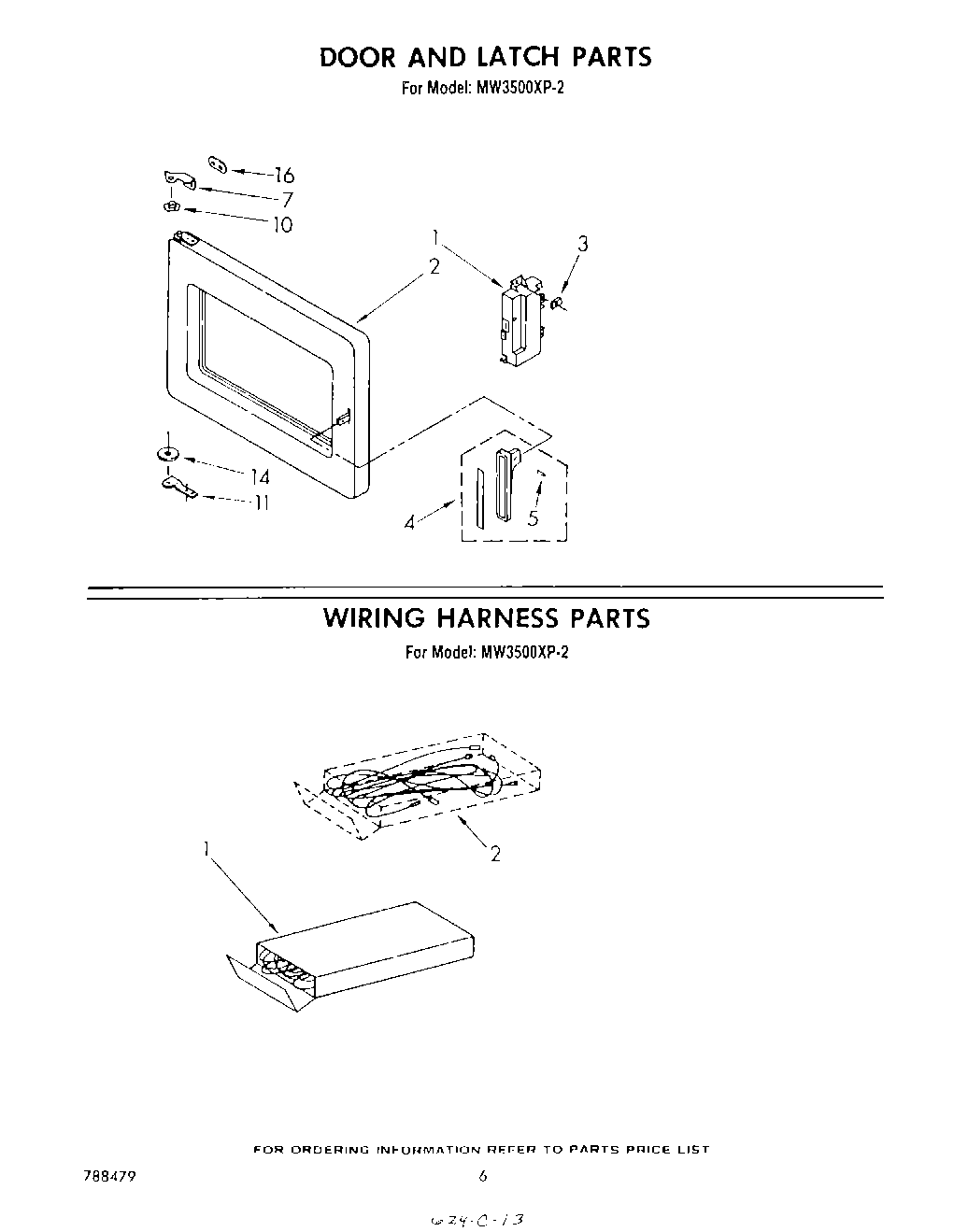

MW3500XP2 04 – DOOR AND LATCH , WIRING HARNESS

Products

PositionProduct
1WP250830 Whirlpool Refrigerator Screw
1Harness, Wiring (Complete)
1Module, Interlock Switch
2Door, Complete (Includes Illus. 4)
2High Voltage Lead Kit (Magnetron)
3Clip, Switch Mounting (2)
4Handle (Includes Inlay)
5Pin, Handle Mounting
7Screw (2)
7Hinge (Upper)
7Screw
10Washer, Wave (Upper Hinge Pin)
11Hinge (Lower)
11Screw (2)
14Washer, Nylon (Lower Hinge Pin)
16Plate, Nut
