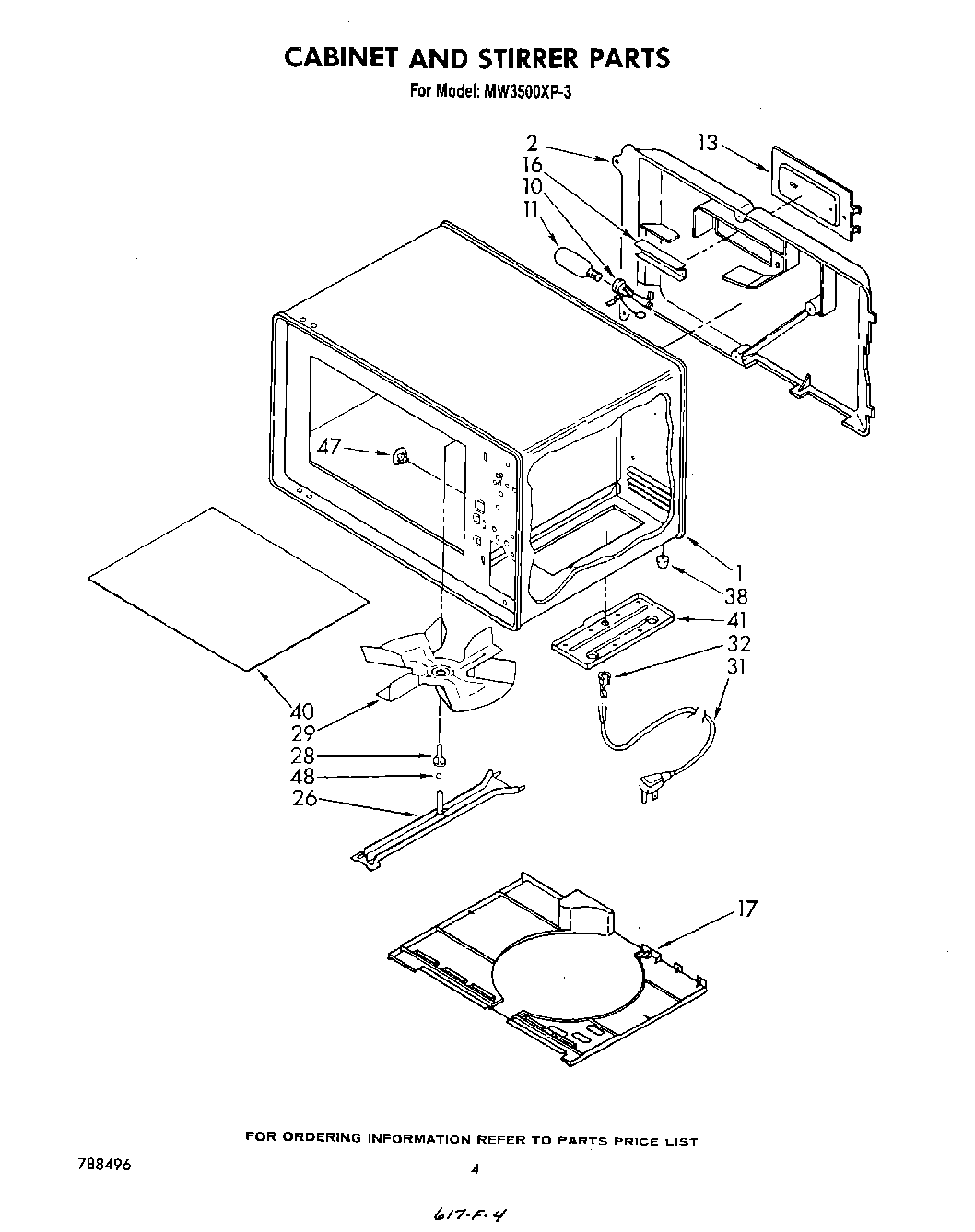

MW3500XP3 03 – CABINET AND STIRRER
Written by
in
MW3500XP3 03 – CABINET AND STIRRER
Products
Position
Product
1
Cabinet, Complete (Not Serviceable)
2
Cover, Rear
10
Socket, Lamp
11
Lamp
13
Cover, Component
16
Reflector
16
WP488130 Whirlpool Air Conditioner Nut
16
Screw
17
Cover, Stirrer
26
Support Bar, Stirrer
26
Rivet
28
Insert, Stirrer
29
Blade, Stirrer
31
Lockwasher, No.8
31
Washer, No.8
31
Screw, 8-32 x 3/8
31
Cord, Power
31
Clamp
31
WP486255 Whirlpool Air Conditioner Nut
32
Relief, Strain
38
Rivet (4)
38
Foot (4)
40
Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41
Clip (4)
41
Panel, Access (Includes Illus. 38)
41
WP90767 Whirlpool Screw
47
Plug, Hole
48
Bearing, Stirrer
←
