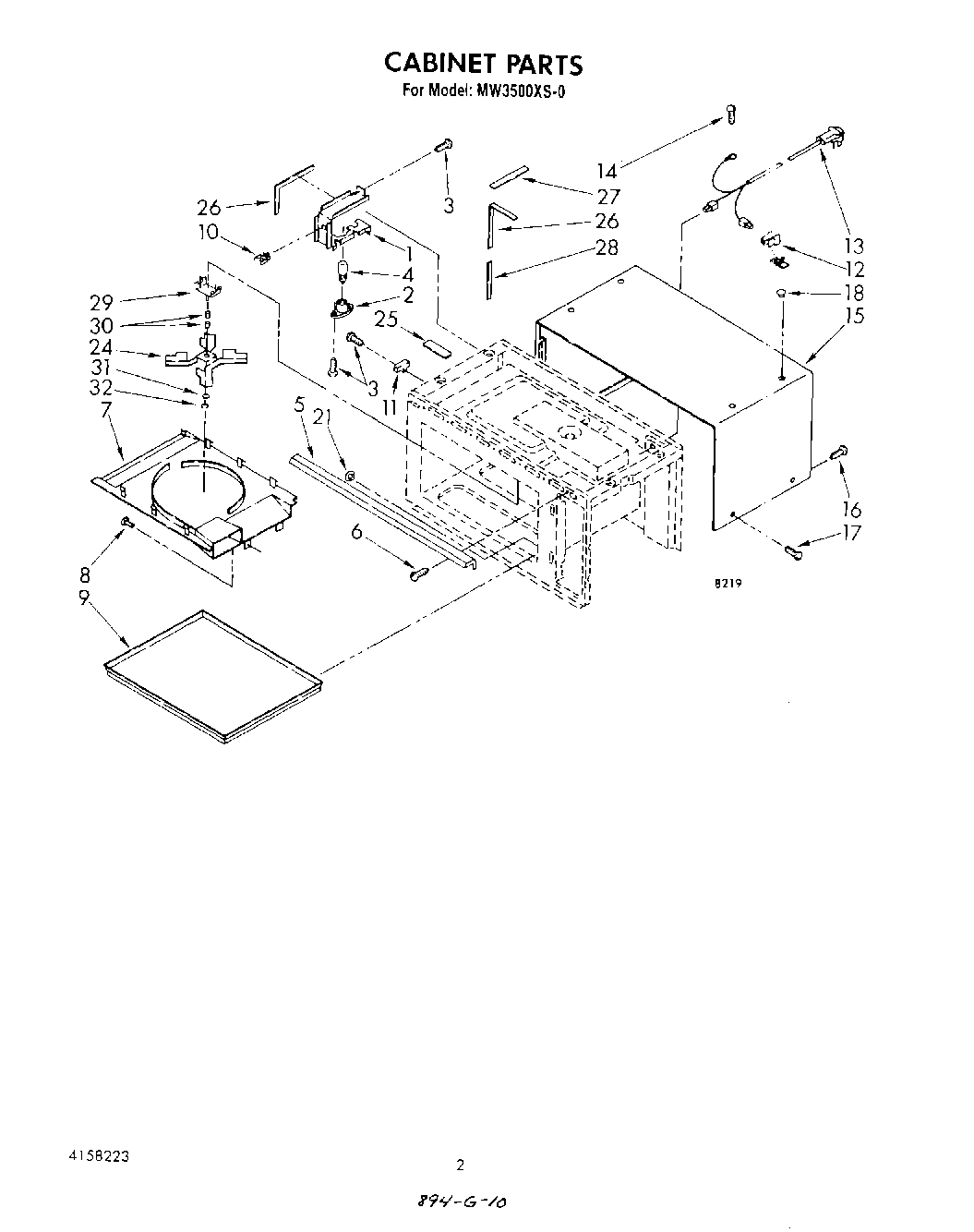

MW3500XS0 02 – CABINET

Products

Position	Product
1	Bracket, Light
2	Socket, Lamp
3	Screw (2)
4	Bulb
5	Switch Micro Primary/Secondary
6	Screw, 4 x 10mm
7	Cover, Stirrer
8	Rivet (3)
9	Shelf, Cavity
10	Clip, Wire
11	Fuse, Thermal
12	Strain Relief
13	Cord, Power
14	Screw (2)
15	Wrapper, Cabinet
16	W11380570 Whirlpool Microwave Screw
17	Screw
18	Plug, Hole (4)
21	Plug, Hole (4)
24	Blade, Stirrer
25	Foam
26	Strain Relief
27	Foam, Cabinet
28	Foam, Cabinet
29	Shaft, Blade
30	Bushing
31	Sliding Washer
32	Retainer
