MW3500XW0 03 – MAGNETRON AND AIR FLOW

MW3500XW0 03 – MAGNETRON AND AIR FLOW

Written by

in

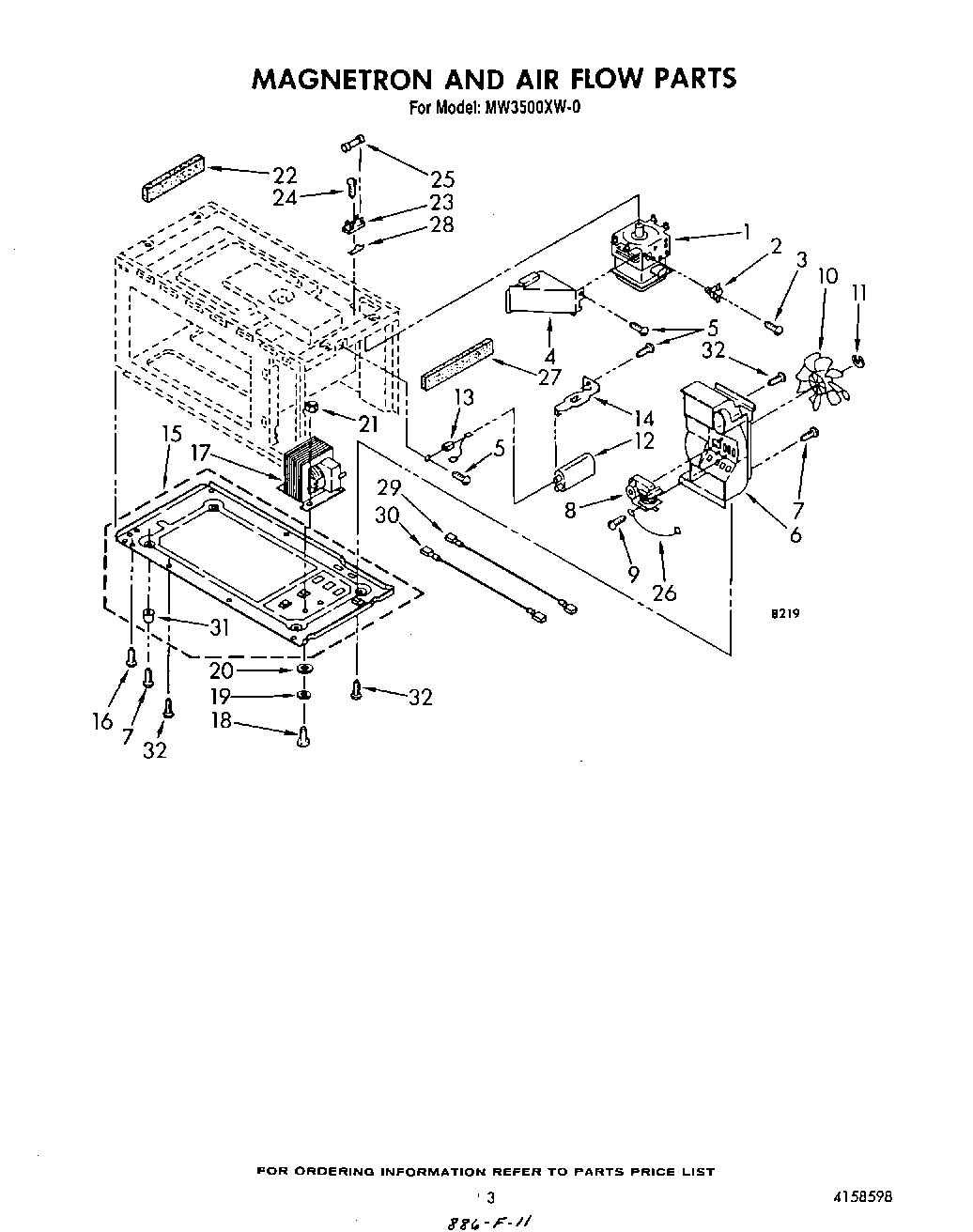

MW3500XW0 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Thermostat
3	Screw (2)
4	Duct, Air
5	W11380570 Whirlpool Microwave Screw
6	Cover, Fan
7	Screw
8	Motor, Fan
9	Screw (2)
10	Fan
11	E-Ring
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
15	Plate, Base (Includes Illus. No. 31)
16	Screw (2)
17	Transformer
18	Screw, 5 x 16 mm (2)
19	Plain Washer
20	Washer (2)
21	Nut (2)
22	Foam, Duct (2)
23	Holder, Fuse
24	Screw (2)
25	Fuse
26	Bracket, Support
27	Foam, Fan Cover
28	Plate, Discharge
29	Screw (3)
30	Lead, High Voltage
31	Leg (4)
32	Screw
