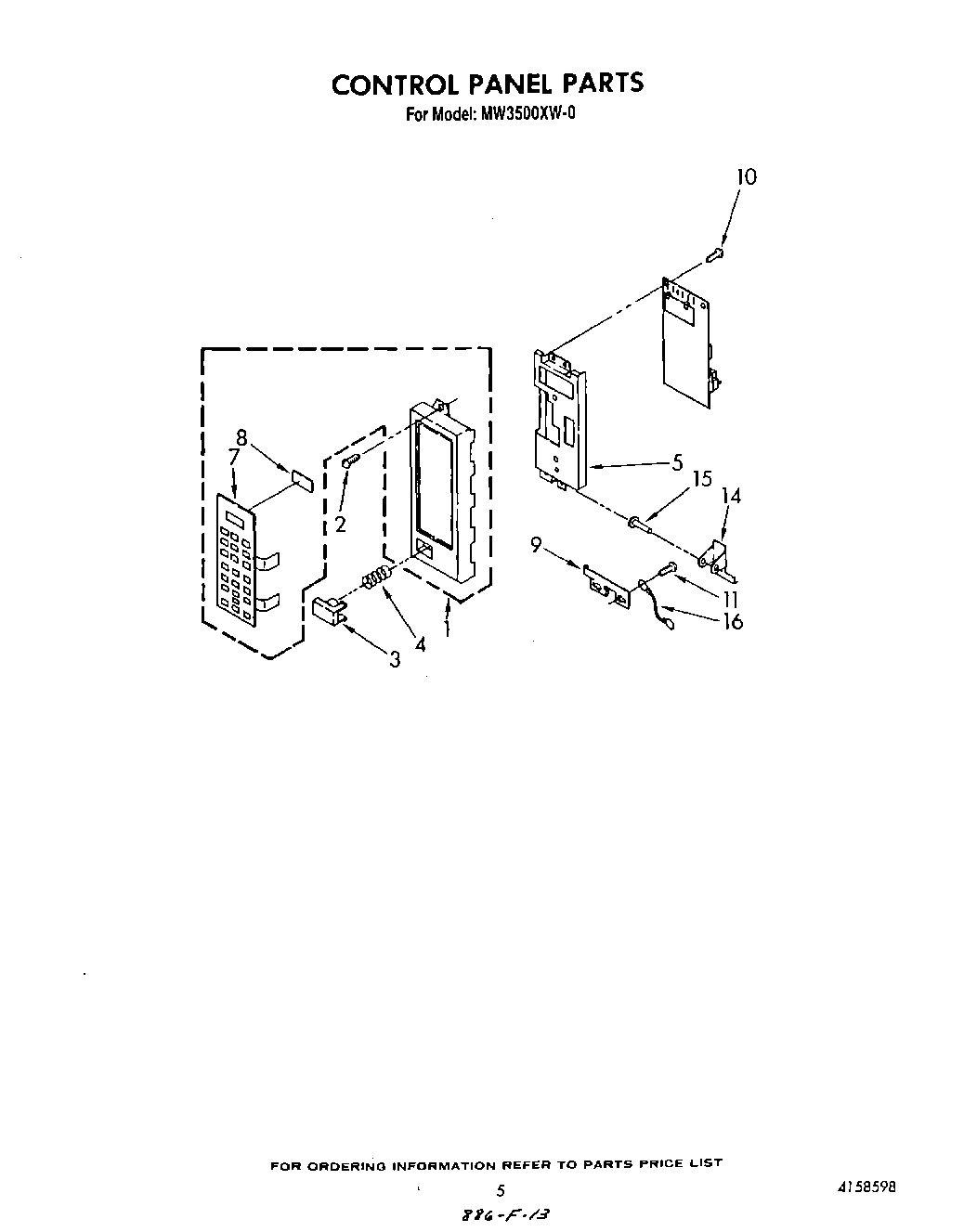

MW3500XW0 05 – CONTROL PANEL

Written by

Products

Position	Product
1	Control Panel (Includes Illustration 7 & 8)
2	Screw, 4 x 10mm
3	Button, Push To Start
4	WP4158178 Whirlpool Microwave Spring
5	Bracket, Control
6	Microcomputer
7	Touch Panel (Not Serviceable)
8	Digitron Window (Not Serviceable)
9	Base Bracket
10	Screw
11	W11380570 Whirlpool Microwave Screw
14	Lever, Release
15	Pin, Lever
16	Lead, High Voltage
