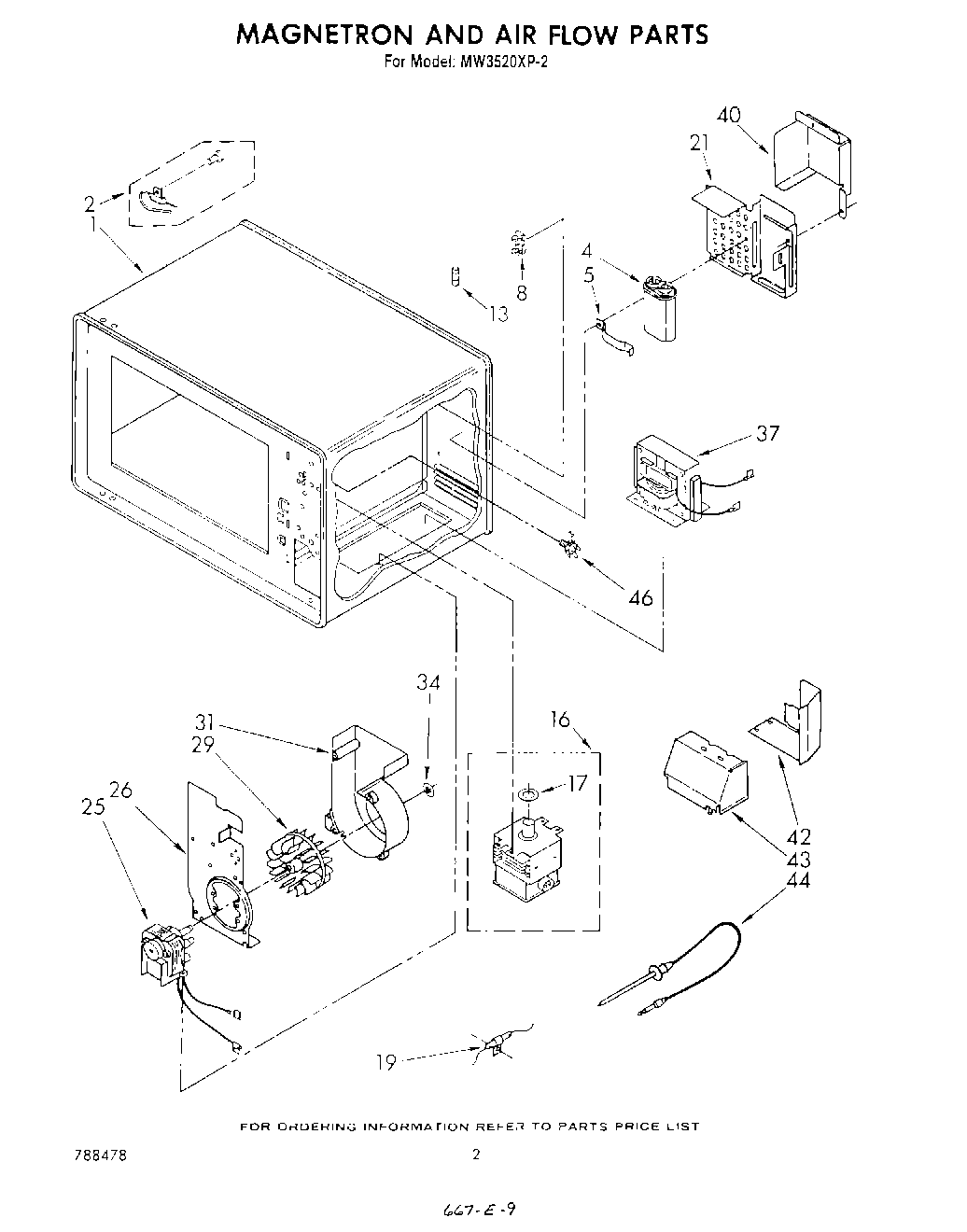

MW3520XP2 02 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Cavity, Complete (Not Serviceable)
2	Protector, Thermal
4	Capacitor / Diode
5	Bracket, Capacitor Mounting
8	Holder, Fuse
8	Nut, 4-40
8	Screw, 4-40 x 1/4 Phillips Pan Head
13	Fuse (15 Amp)
16	Magnetron (Includes Illus. No.17)
16	Nut, 5mm (4)
17	Gasket, Magnetron
19	Thermal Protector, Magnetron
21	Cover, Capacitor
25	Washer No.8 (4)
25	Diode
25	WP250830 Whirlpool Refrigerator Screw
25	Motor, Blower (Includes Illus. 34)
26	Bracket, Blower
29	Wheel, Blower (Includes Illus. NO. 34)
31	Screw, 8-18 x 1/2 (3)
31	Housing, Blower (Includes Illus. 34)
34	E-Ring, Blower Wheel
37	S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
37	Transformer
40	Cover, Lead
42	Air Duct, Front
43	Air Duct, Rear
43	WP90767 Whirlpool Screw
44	Probe, Temperature
46	Jack, Probe
46	Washer, 3/8
46	Nut, 8/3-32
46	Lockwasher 3/8
