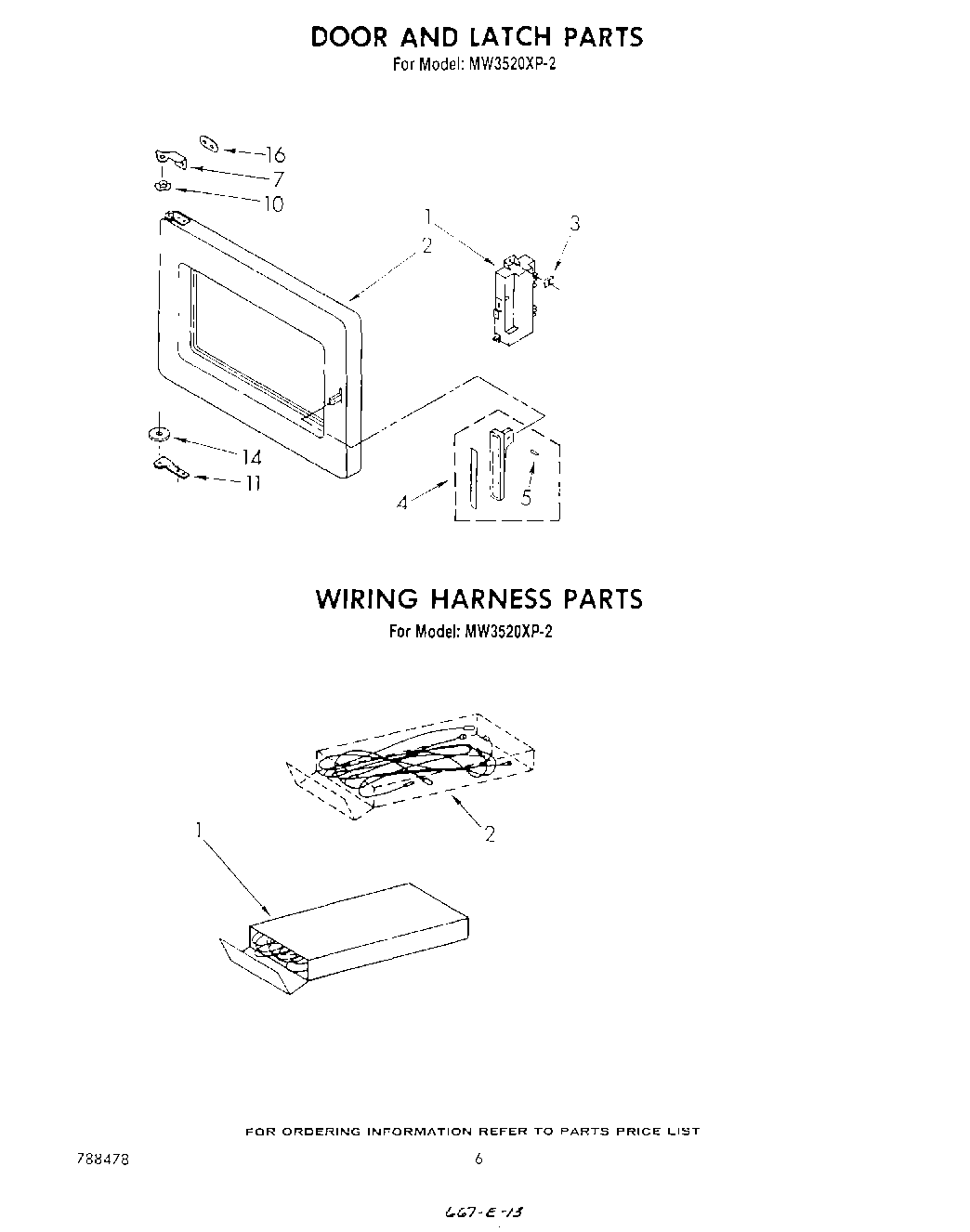

MW3520XP2 04 – DOOR AND LATCH, WIRING HARNESS

Products

Position	Product
1	WP250830 Whirlpool Refrigerator Screw
1	Harness, Wiring (Complete)
1	Module, Interlock Switch
2	Door, Complete (Includes Illus. 4)
2	High Voltage Lead Kit (Magnetron)
3	Clip, Switch Mounting (2)
4	Handle (Includes Inlay)
5	Pin, Handle Mounting
7	Screw (2)
7	Hinge (Upper)
10	Washer, Wave (Upper Hinge Pin)
11	Screw (2)
11	Hinge (Lower)
14	Washer, Nylon (Lower Hinge Pin)
16	Plate, Nut
