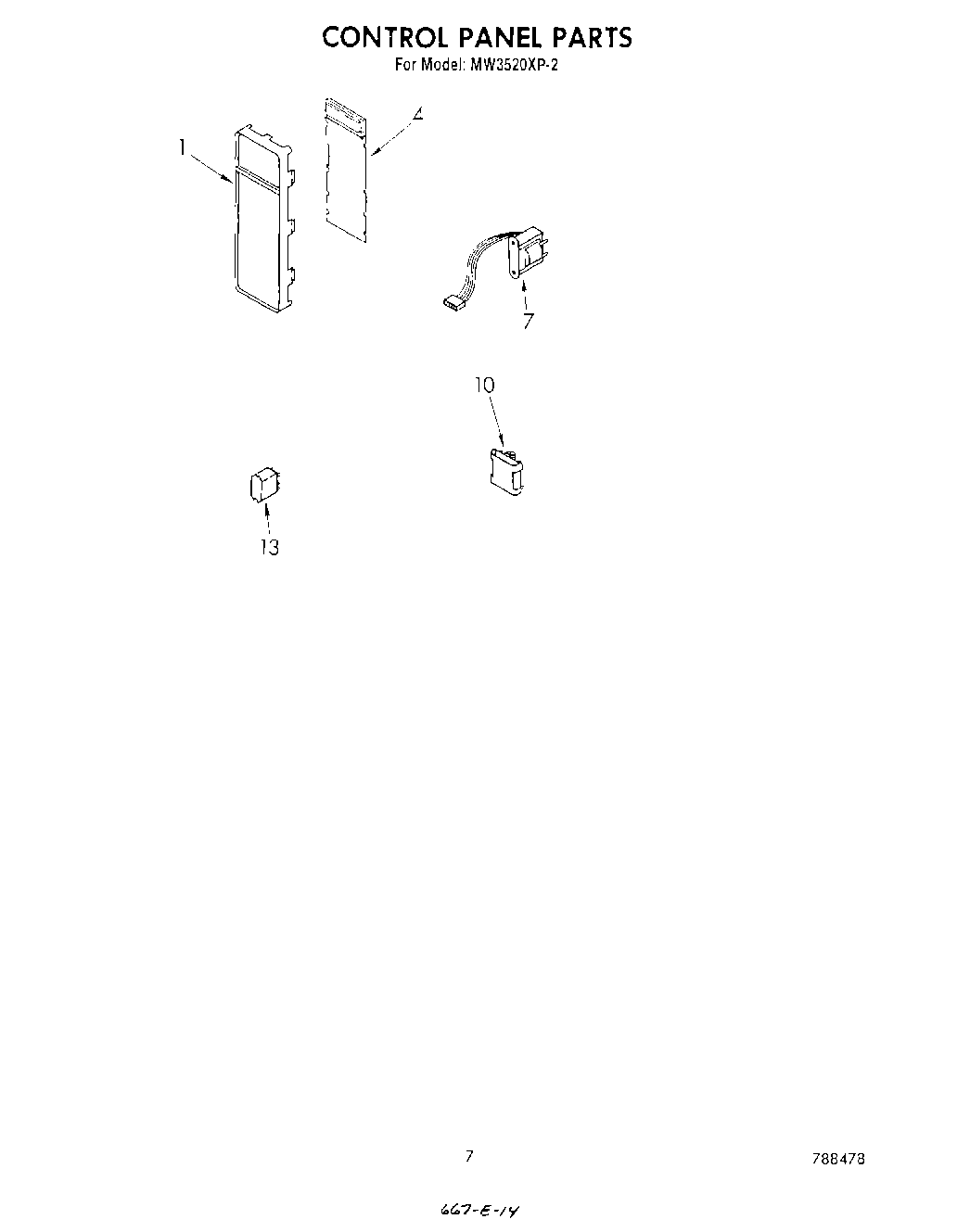

MW3520XP2 05 – CONTROL PANEL, LITERATURE AND OPTIONAL

Products

PositionProduct
Cookbook
List, Repair Parts
Guide, Use & Care
1Touch Panel
4Microcomputer
7Transformer, Low Voltage
7WP90767 Whirlpool Screw
10Screw, 6AB x 3/8 Hex Washer Head (4)
10Triac
13Screw, 8-32 x 1/2
13Wall Mount Kit
13Driver, Torx (T-20)
13Under Cabinet Mounting Kit (Complete)
13Relay
13WP486255 Whirlpool Air Conditioner Nut
13WP482338 Whirlpool Refrigerator Adhesive
13WP72107 Whirlpool Touchup
13350956 Whirlpool Spray Assembly
