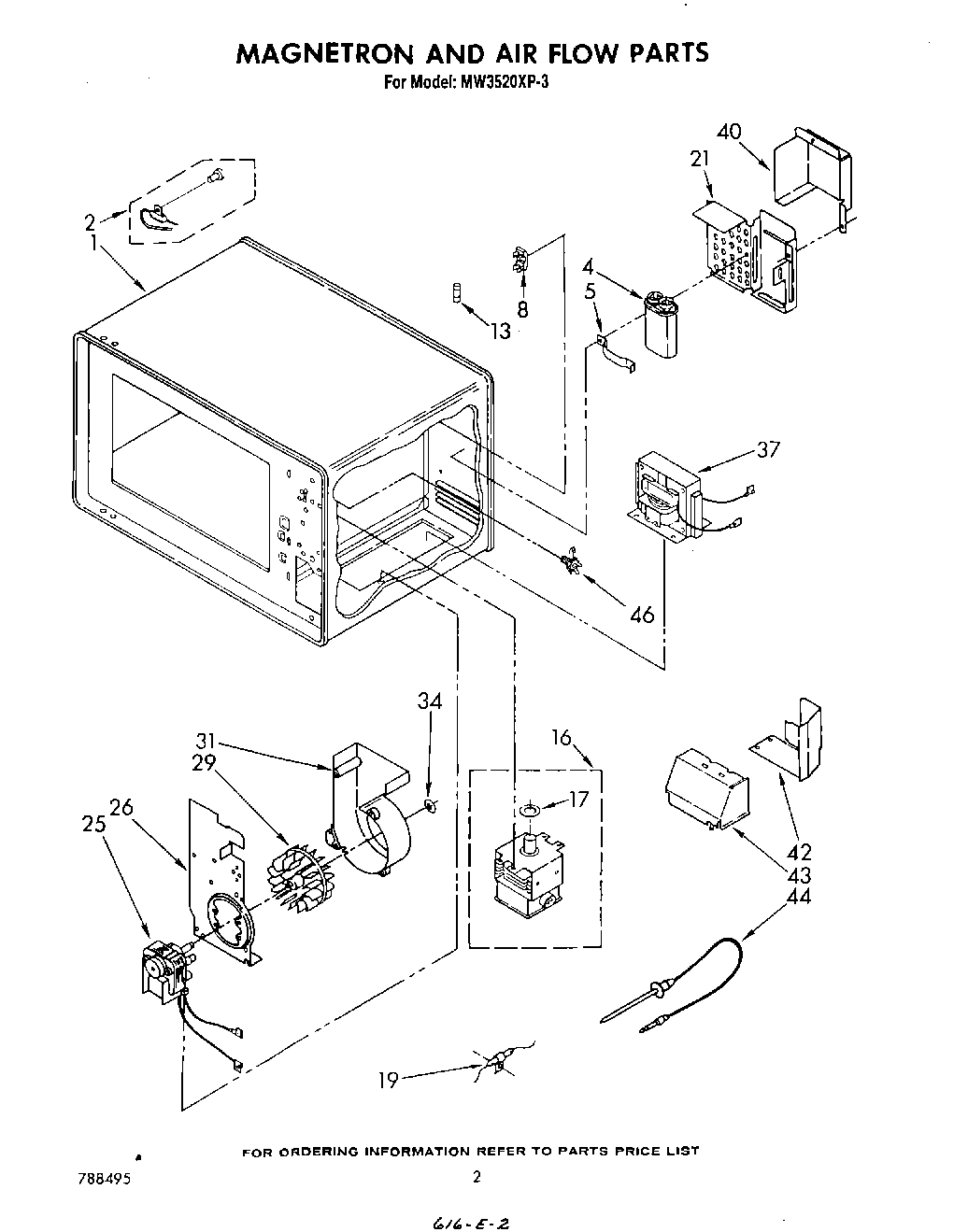

MW3520XP3 02 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Cavity, Complete (Not Serviceable)
2	Protector, Thermal
4	Capacitor / Diode
5	Bracket, Capacitor Mounting
8	Holder, Fuse
8	Nut, 4-40
8	Screw, 4-40 x 1/4 Phillips Pan Head
13	Fuse (15 Amp)
16	Nut, 5mm (4)
16	Magnetron (Includes Illus. No.17)
17	Gasket, Magnetron
19	Thermal Protector, Magnetron
21	Cover, Capacitor
25	Motor, Blower (Includes Illus. 34)
25	Diode
25	Washer No.8 (4)
25	WP250830 Whirlpool Refrigerator Screw
26	Bracket, Blower
29	Wheel, Blower (Includes Illus. NO. 34)
31	Screw, 8-18 x 1/2 (3)
31	Housing, Blower (Includes Illus. 34)
34	E-Ring, Blower Wheel
37	S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
37	Transformer
40	Cover, Lead
42	Air Duct, Front
43	WP90767 Whirlpool Screw
43	Air Duct, Front
44	Probe, Temperature
46	Nut, 8/3-32
46	Lockwasher 3/8
46	Washer, 3/8
46	Jack, Probe
