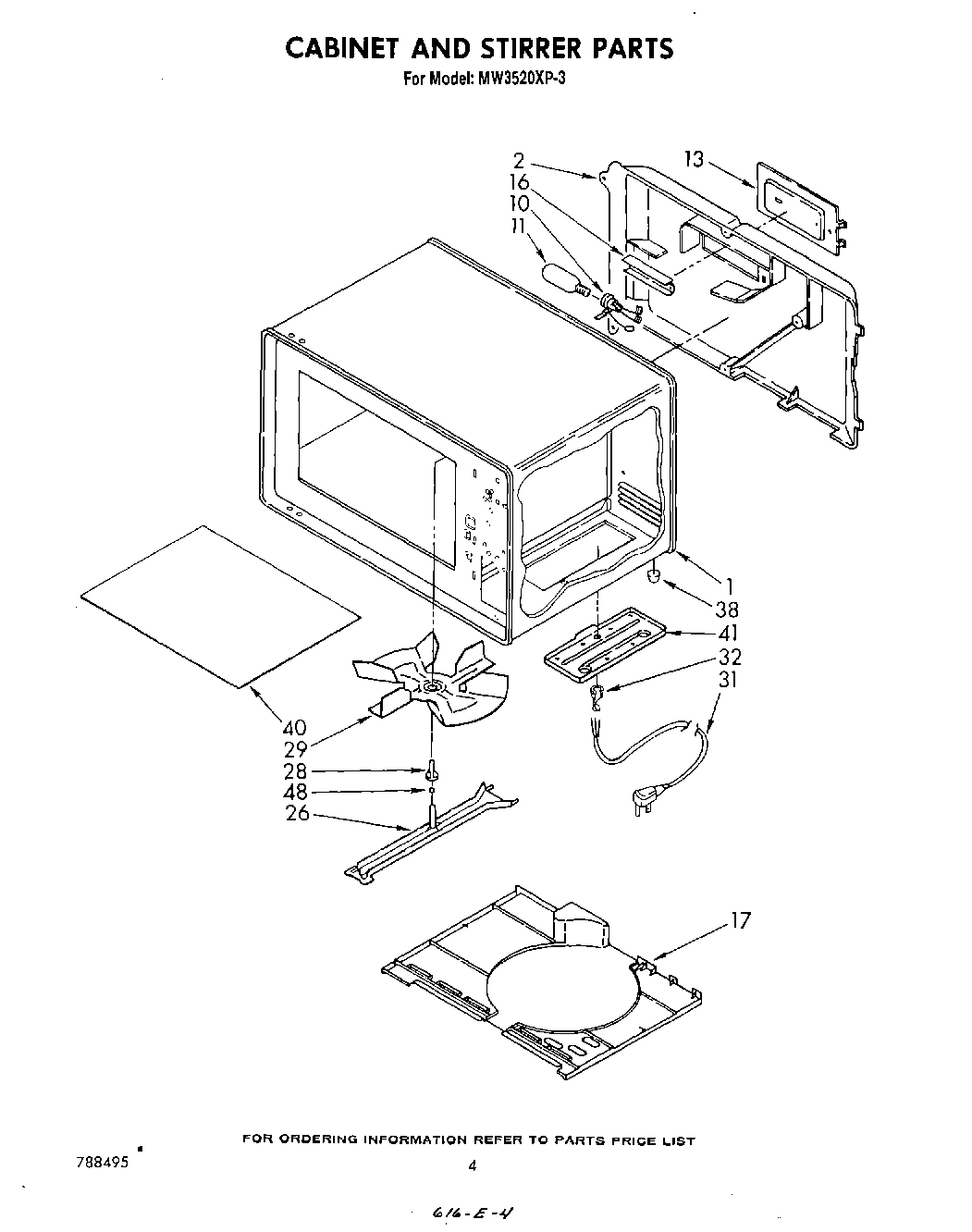

MW3520XP3 03 – CABINET AND STIRRER

Products

Position	Product
1	Cabinet, Complete (Not Serviceable)
2	Cover, Rear
10	Socket, Lamp
11	Lamp
13	Cover, Component
16	Reflector
16	Screw
16	WP488130 Whirlpool Air Conditioner Nut
17	Cover, Stirrer
26	Rivet
26	Support Bar, Stirrer
28	Insert, Stirrer
29	Blade, Stirrer
31	Lockwasher, No.8
31	Clamp
31	Cord, Power
31	WP486255 Whirlpool Air Conditioner Nut
31	Screw, 8-32 x 3/8
31	Washer, No.8
32	Relief, Strain
38	Foot (4)
38	Rivet (4)
40	Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41	Panel, Access (Includes Illus. 38)
41	WP90767 Whirlpool Screw
41	Clip (4)
48	Bearing, Stirrer
