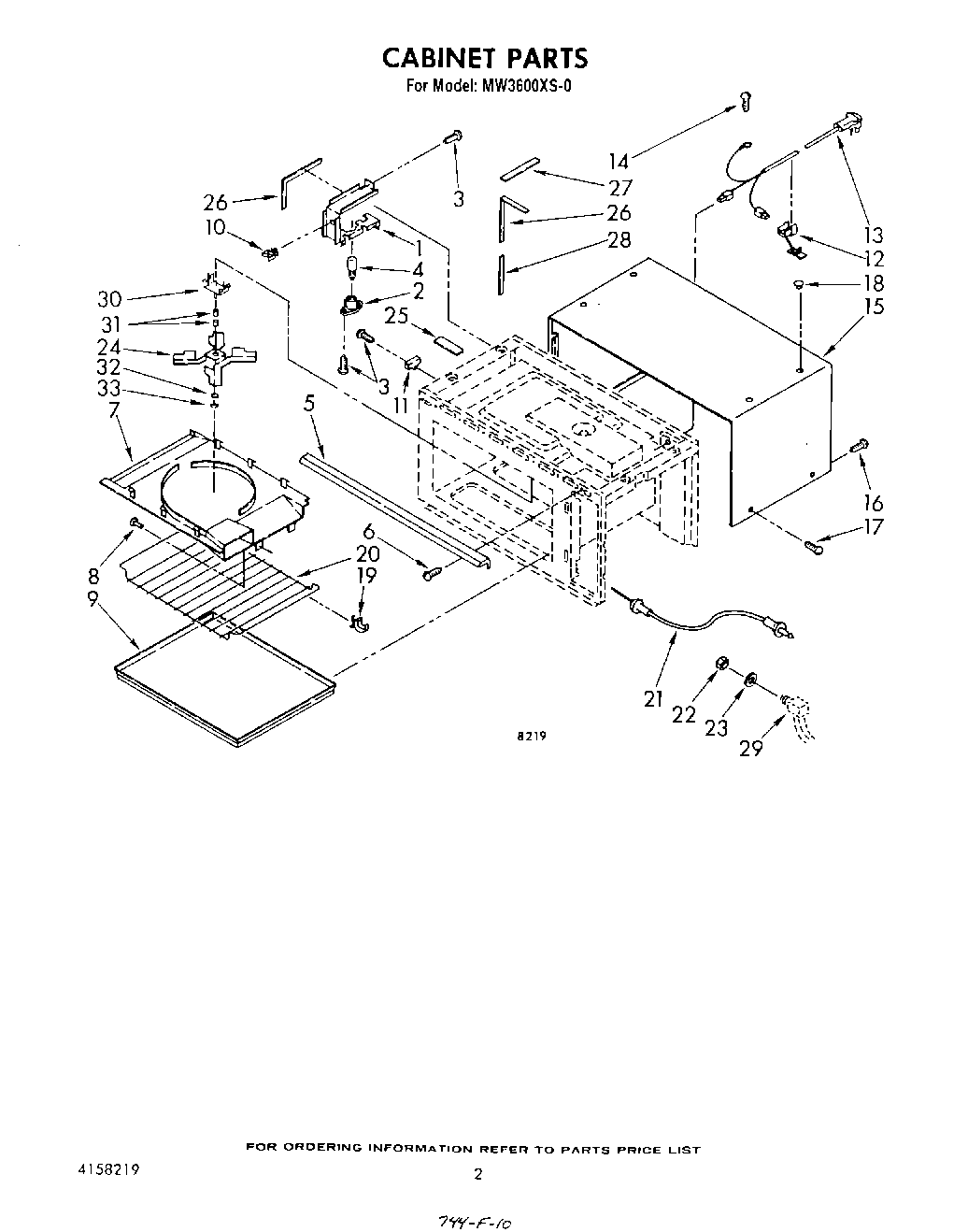

MW3600XS0 02 – CABINET

Products

Position	Product
1	Bracket, Light
2	Socket, Lamp
3	Screw (2)
4	Bulb
5	Switch Micro Primary/Secondary
6	Screw, 4 x 10mm
7	Cover, Stirrer
8	Rivet (3)
9	Shelf, Cavity
10	Clip, Wire
11	Fuse, Thermal
12	Strain Relief
13	Cord, Power
14	Screw (2)
15	Wrapper, Cabinet
16	W11380570 Whirlpool Microwave Screw
17	Screw
18	Plug, Hole (4)
19	WP3149478 Whirlpool Microwave Support
20	Rack
21	Probe, Temperture
22	Nut
23	Washer
24	Blade, Stirrer
25	Foam
26	Strain Relief
27	Foam, Cabinet
28	Foam, Cabinet
29	Jack, Temperature Probe (See Page 6)
30	Shaft, Blade
31	Bushing
32	Sliding Washer
33	Retainer
