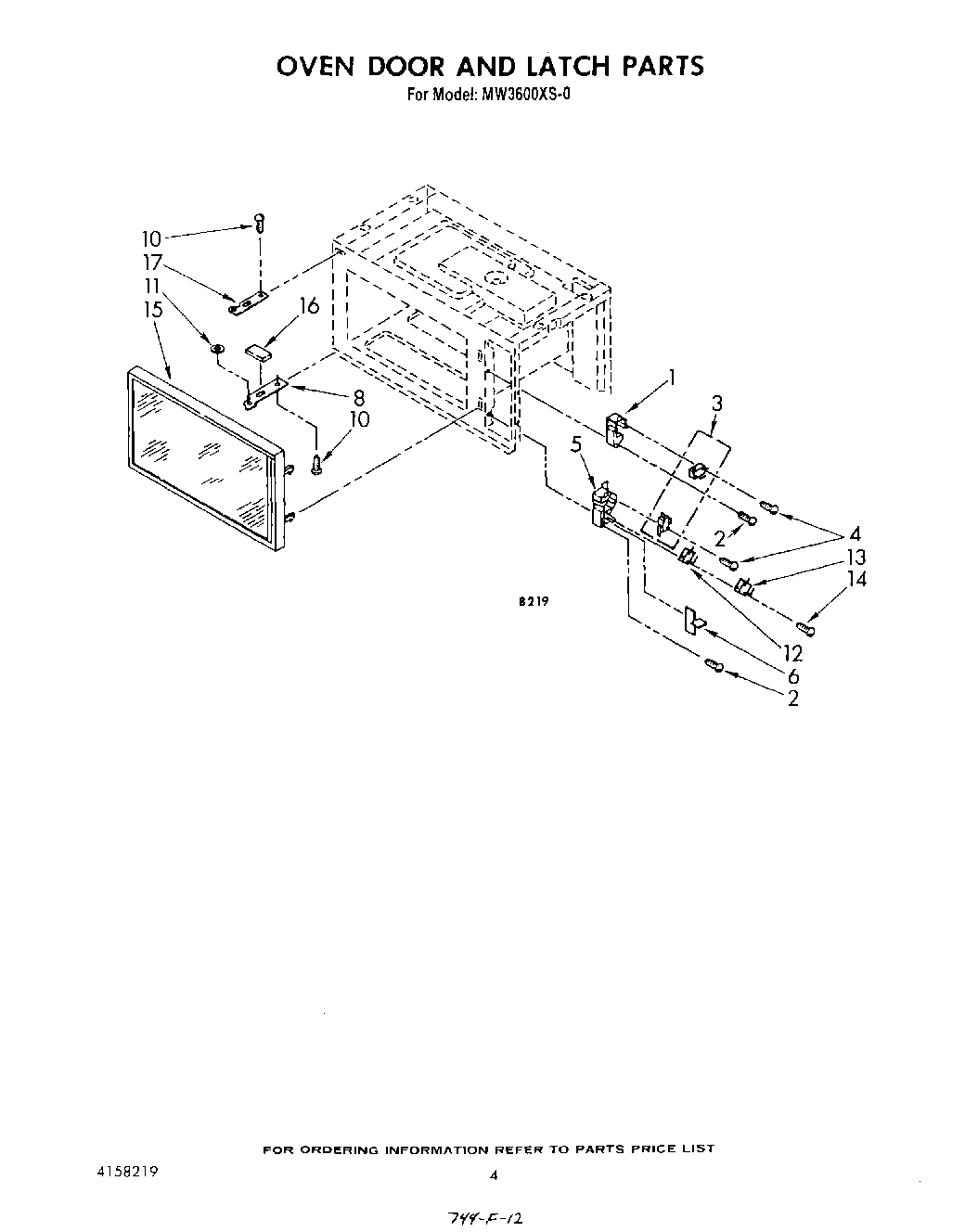

MW3600XS0 04 – OVEN DOOR AND LATCH

Written by

Products

Position	Product
1	Latch, Upper
2	Screw
3	Interlock, Switch Kit (Both switches must be replaced if one fails.)
4	Screw (2)
5	Latch, Lower
6	Rod, Release
8	Hinge Plate, Lower
10	Screw (2)
11	Hinge Washer
12	4392027 Whirlpool Microwave Primary Switch
13	Micro Switch (Secondary)
14	Screw
15	Door, Complete
16	Foam
17	Hinge Plate, Upper
