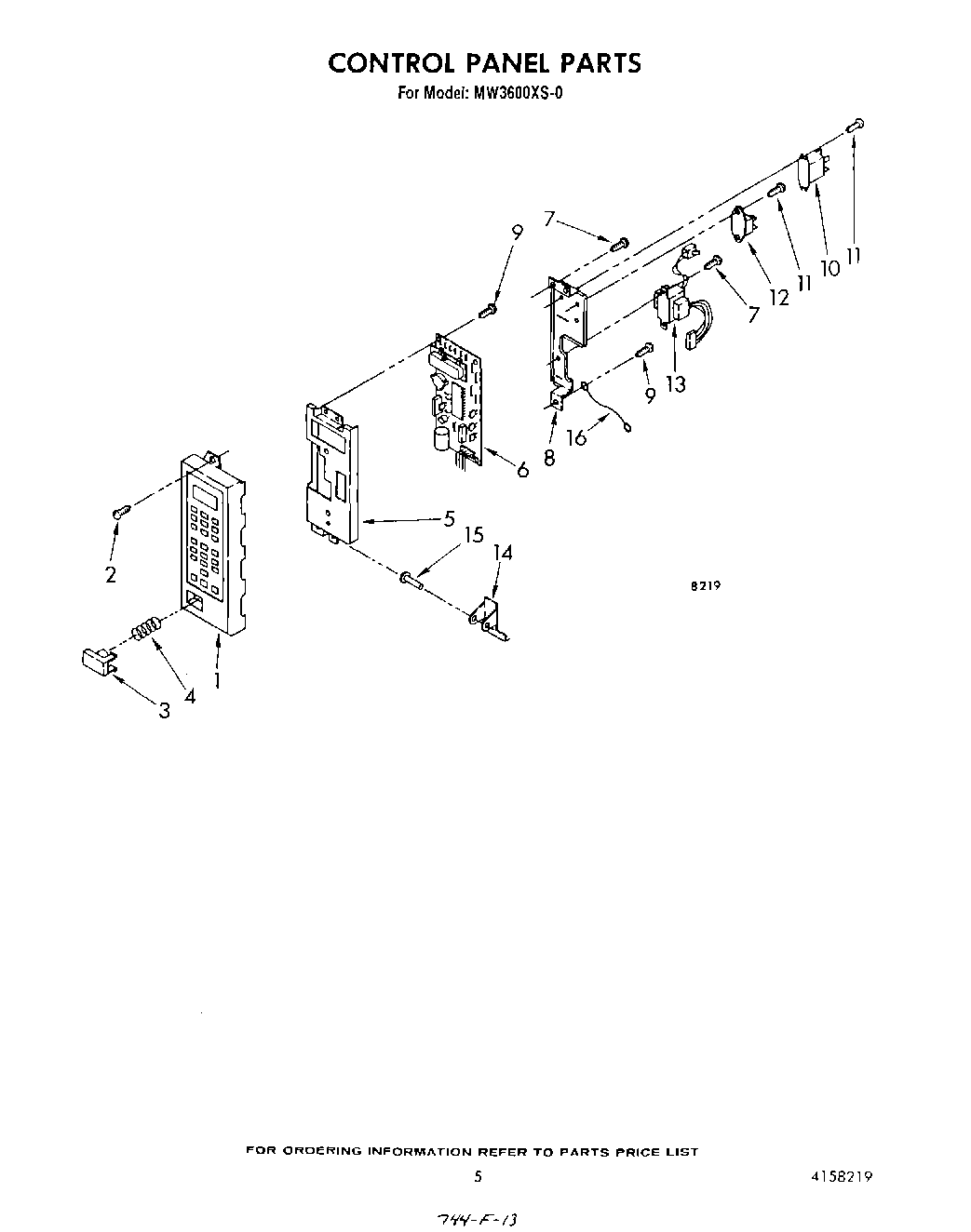

MW3600XS0 05 – CONTROL PANEL

Written by

Products

Position	Product
1	Frame, Control Panel
2	Screw, 4 x 10mm
3	Button, Push To Start
4	WP4158178 Whirlpool Microwave Spring
5	Bracket, Control
6	Microcomputer
7	Screw (2)
8	Heat Sink
9	W11380570 Whirlpool Microwave Screw
10	Relay
11	Screw (2)
12	Triac
13	Transformer
14	Lever, Release
15	Pin, Lever
16	Lead, High Voltage
