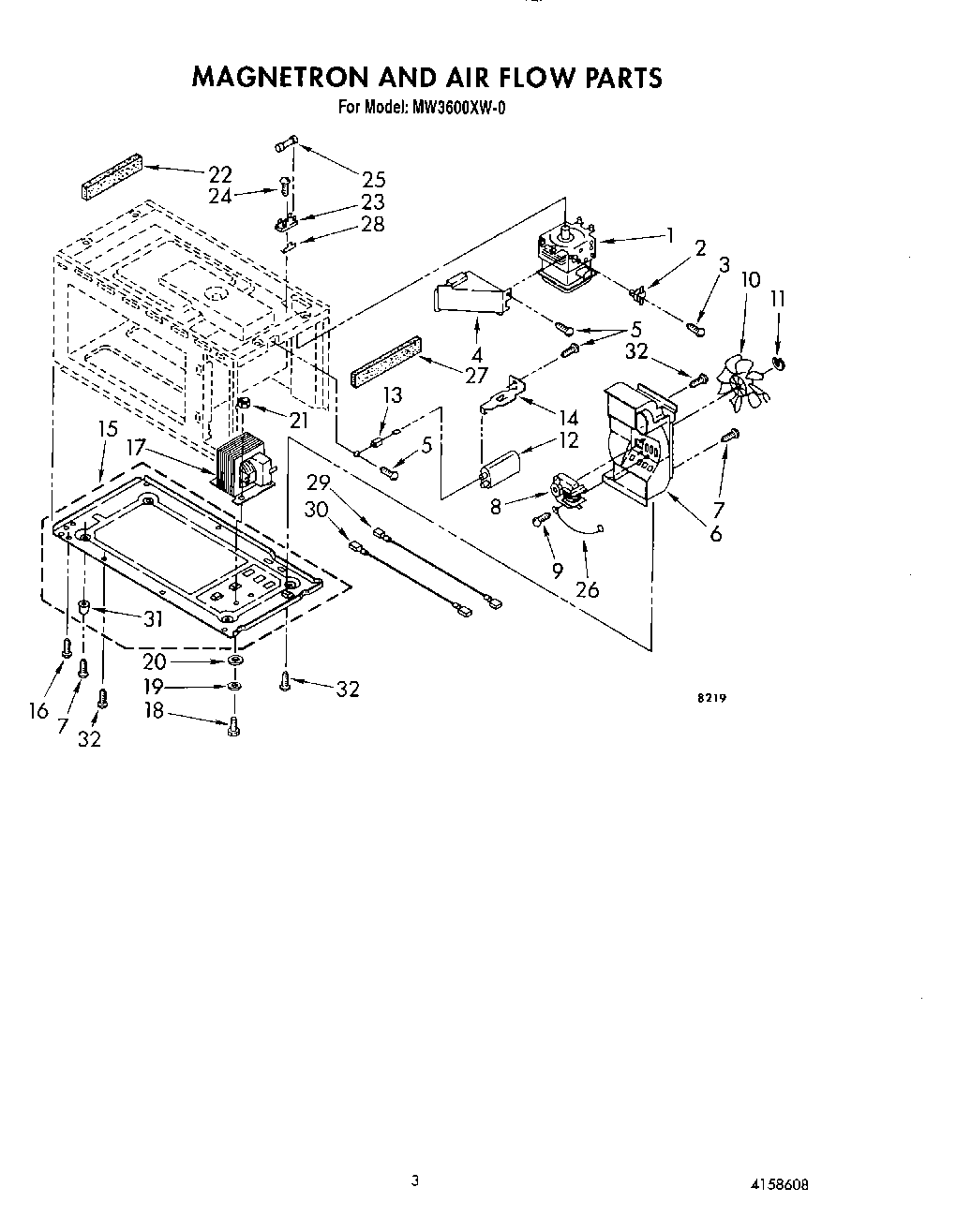

MW3600XW0 03 – MAGNETRON AND AIR FLOWadmin2025-04-26T08:44:26+00:00MW3600XW0 03 – MAGNETRON AND AIR FLOW
Products
| Position | Product |
|---|
| 1 | Magnetron |
| 2 | Thermostat |
| 3 | Screw (2) |
| 4 | Duct, Air |
| 5 | W11380570 Whirlpool Microwave Screw |
| 6 | Cover, Fan |
| 7 | Screw |
| 8 | Motor, Fan |
| 9 | Screw (2) |
| 10 | Fan |
| 11 | E-Ring |
| 12 | Capacitor |
| 13 | Diode Cable |
| 14 | Bracket, Capacitor |
| 15 | Plate, Base (Includes Illus. No. 31) |
| 16 | Screw (2) |
| 17 | Transformer |
| 18 | Screw, 5 x 16 mm (2) |
| 19 | Plain Washer |
| 20 | Washer (2) |
| 21 | Nut (2) |
| 22 | Foam, Duct (2) |
| 23 | Holder, Fuse |
| 24 | Screw (2) |
| 25 | Fuse |
| 26 | Lead Wire |
| 27 | Foam, Fan Cover |
| 28 | Plate, Discharge |
| 29 | Screw (3) |
| 30 | Lead, High Voltage |
| 31 | Leg (4) |
| 32 | Screw |
