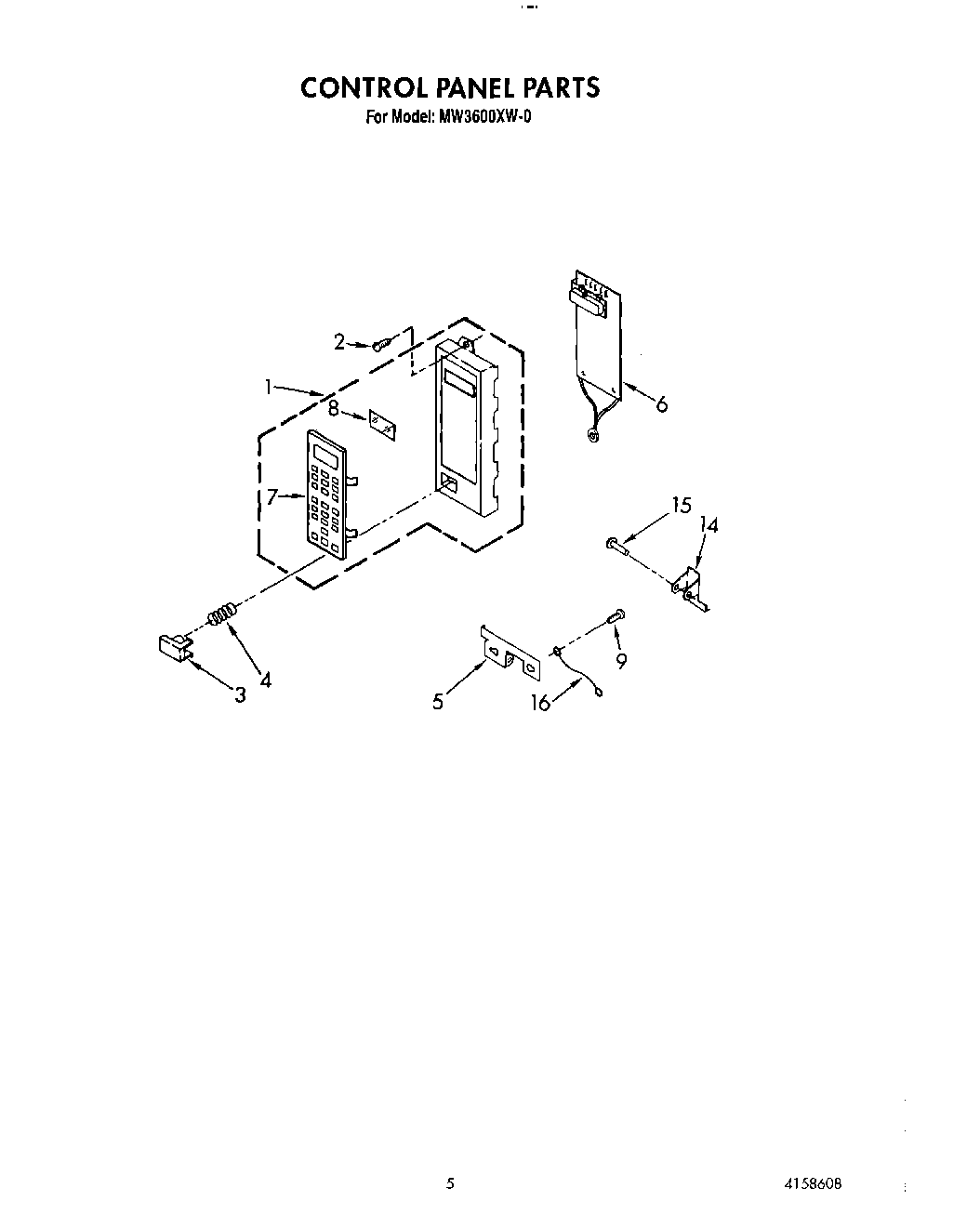

MW3600XW0 05 – CONTROL PANEL

Products

Position	Product
1	Control Panel Complete
2	Screw, 4 x 10mm
3	Button, Push To Start
4	WP4158178 Whirlpool Microwave Spring
5	Base Bracket
6	Microcomputer
7	Touch Panel (Not Serviceable)
8	Digitron Window (Not Serviceable)
9	W11380570 Whirlpool Microwave Screw
14	Lever, Release
15	Pin, Lever
16	Lead, High Voltage
