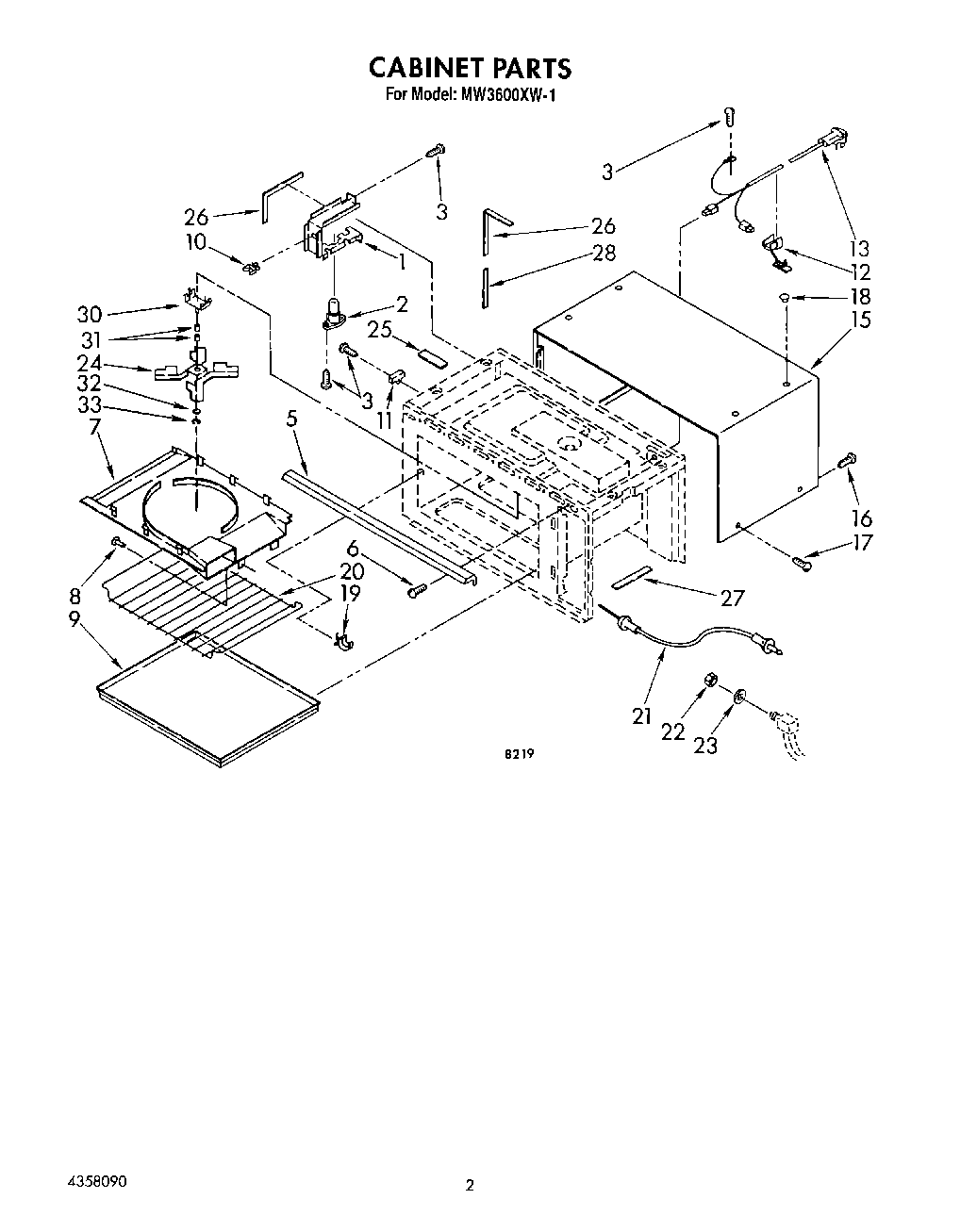

MW3600XW1 02 – CABINET

Products

Position	Product
1	Bracket, Light
2	Base Less Light
3	Screw (2)
5	Switch Micro Primary/Secondary
6	Screw, 4 x 10mm
7	Cover, Stirrer
8	Rivet (3)
9	Tray, Glass
10	Wire Holder (4)
11	Thermal Fuse
12	Strain Relief
13	Cord, Power
15	Wrapper, Cabinet
16	W11380570 Whirlpool Microwave Screw
18	Plug, Hole (4)
19	Support, Rack (4)
20	Rack
21	Probe
22	Nut
23	Washer
24	Blade, Stirrer
25	Foam
26	Seal
27	Foam, Cabinet
28	Foam, Cabinet
30	Shaft, Blade
31	Shaft Bushing
32	Sliding Washer
33	Lock Washer
