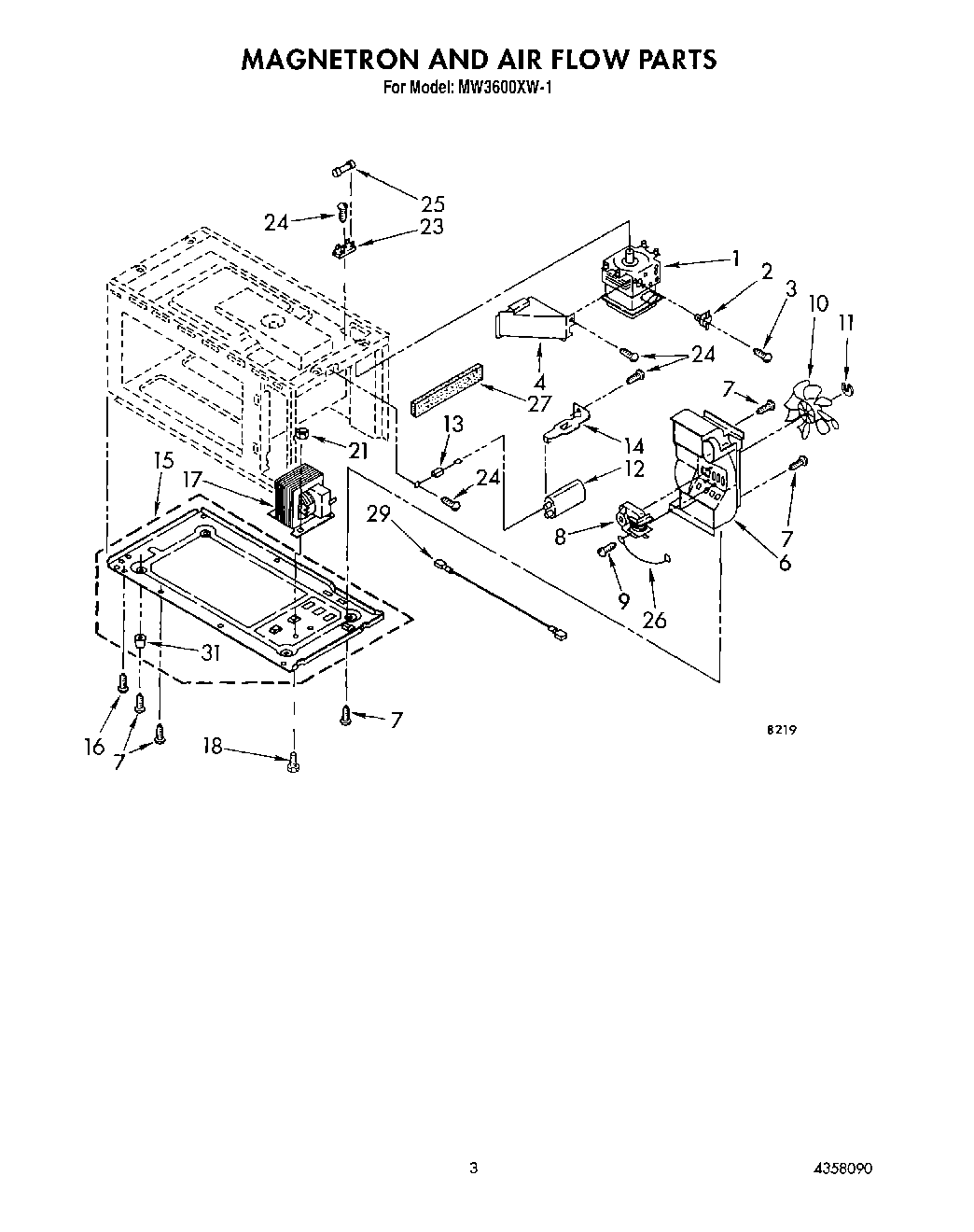

MW3600XW1 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Thermostat
3	Screw (2)
4	Duct, Air
6	Cover, Fan
7	Screw
8	Motor, Fan
9	Screw (2)
10	Fan
11	E-Ring
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
15	Screw (2)
16	Screw (2)
17	Transformer
18	Screw (2)
21	Nut (2)
23	Holder, Fuse
24	Screw (2)
25	Fuse
26	Lead, High Voltage
27	Foam, Fan Cover
29	Screw (3)
31	Leg (4)
