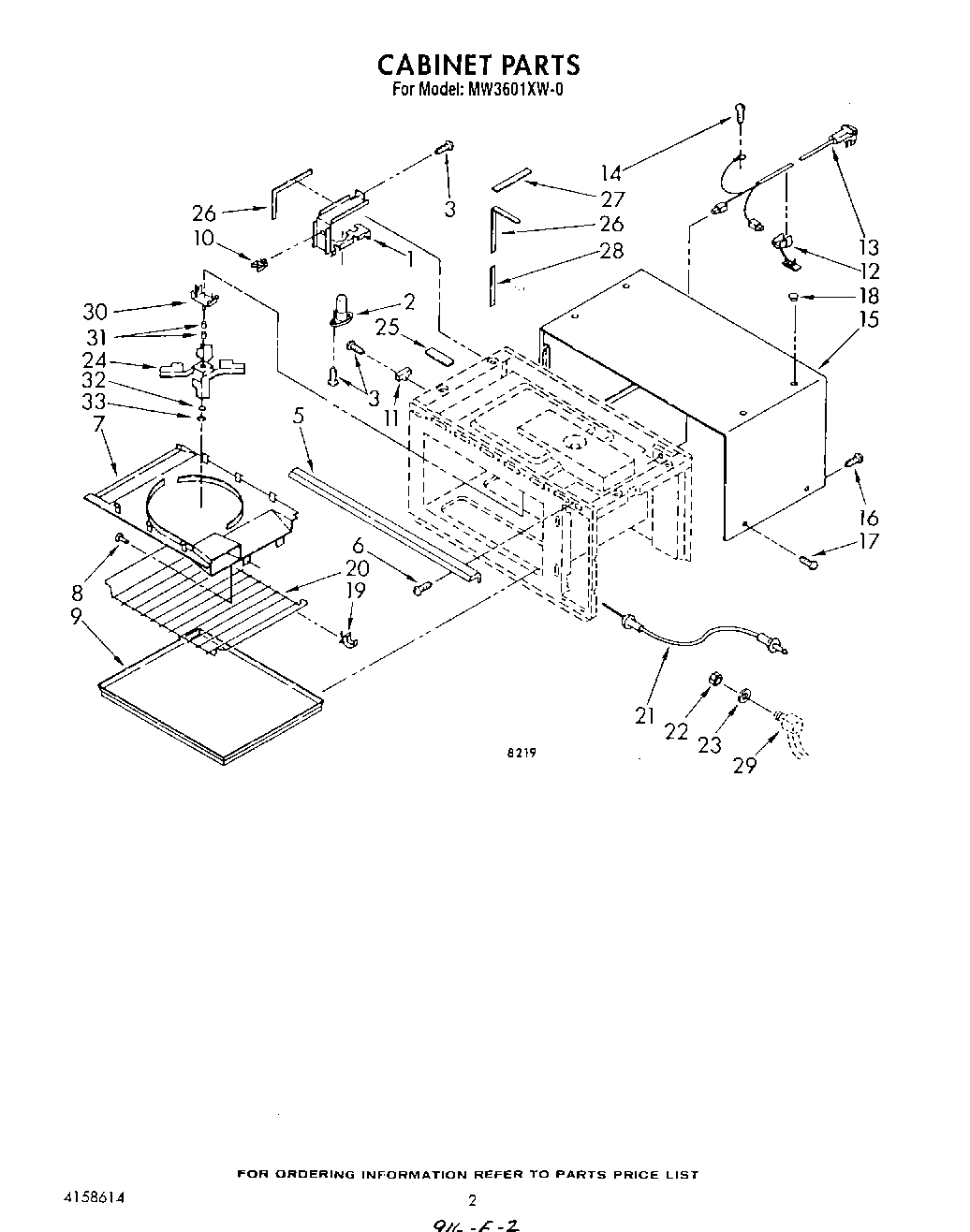

| 1 | Bracket, Light |
| 2 | Base Less Light |
| 3 | Screw (2) |
| 5 | Grille, Vent |
| 6 | Screw, 4 x 10 mm |
| 7 | Cover, Stirrer |
| 8 | Rivet (3) |
| 9 | Tray, Glass |
| 10 | Clip, Wire |
| 11 | Thermal Fuse |
| 12 | Strain Relief |
| 13 | Cord, Power |
| 14 | Screw (2) |
| 15 | Wrapper, Cabinet |
| 16 | W11380570 Whirlpool Microwave Screw |
| 17 | Plug, Hole |
| 18 | Plug, Hole (4) |
| 19 | Support, Rack (4) |
| 20 | Rack |
| 21 | Probe |
| 22 | Nut |
| 23 | Washer |
| 24 | Blade, Stirrer |
| 25 | Foam |
| 26 | Strain Relief |
| 27 | Foam, Cabinet |
| 28 | Foam, Cabinet |
| 29 | Jack, Temperature Probe (See Page 6) |
| 30 | Shaft Bushing |
| 31 | Bushing |
| 32 | Sliding Washer |
| 33 | Lock Washer |
