MW3601XW0 05 – PANEL
Written by
in

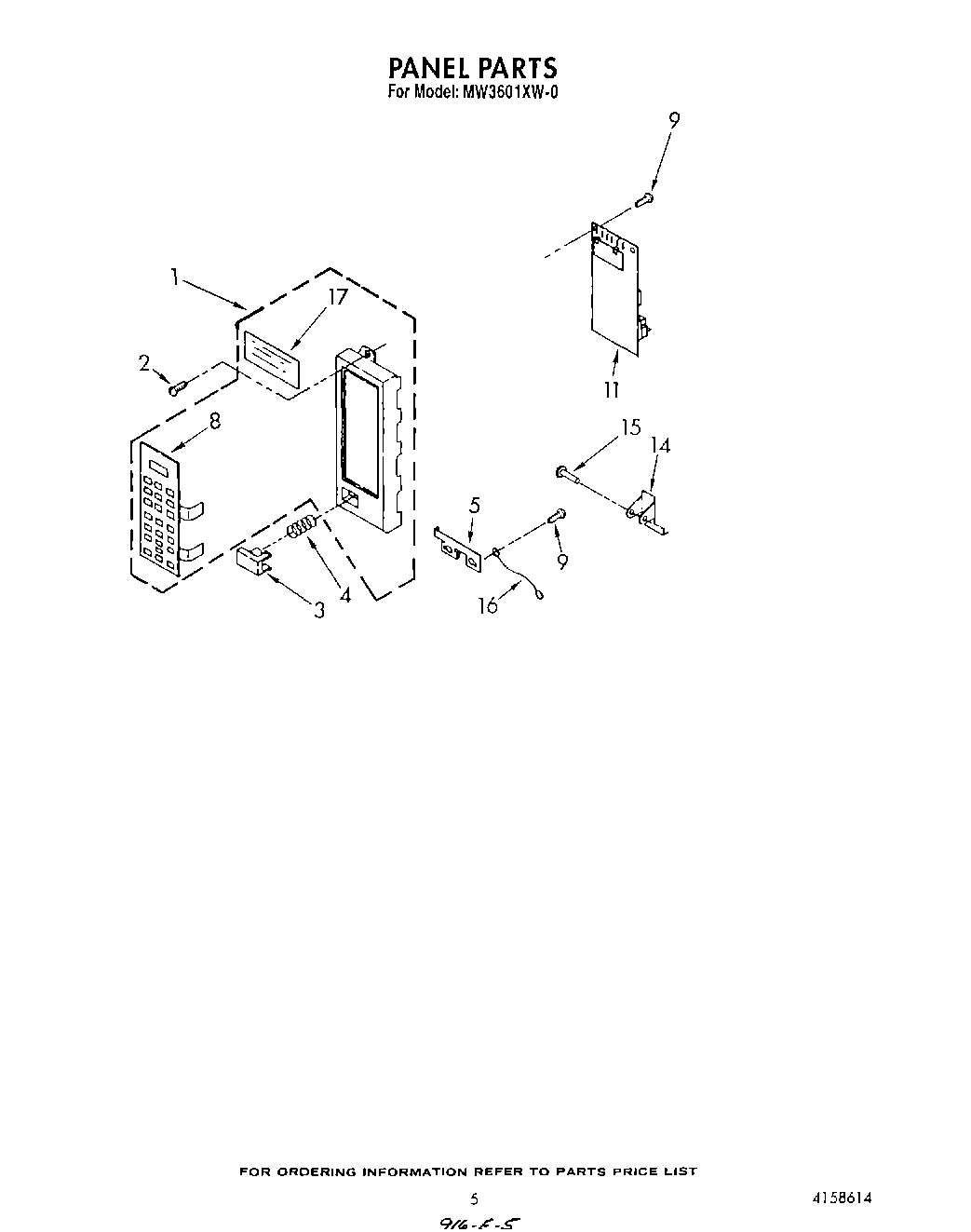

MW3601XW0 05 – PANEL
Products
Position
Product
1
Control Panel (Includes Illustration 8 & 17)
2
Screw, 4 x 10mm
3
Button, Push To Start
4
WP4158178 Whirlpool Microwave Spring
5
Base Bracket
6
Microcomputer
7
Screw (2)
8
Touch Panel (Not Serviceable)
9
Screw
11
Microcomputer
14
Lever, Release
15
Pin, Lever
16
Lead, High Voltage
←
