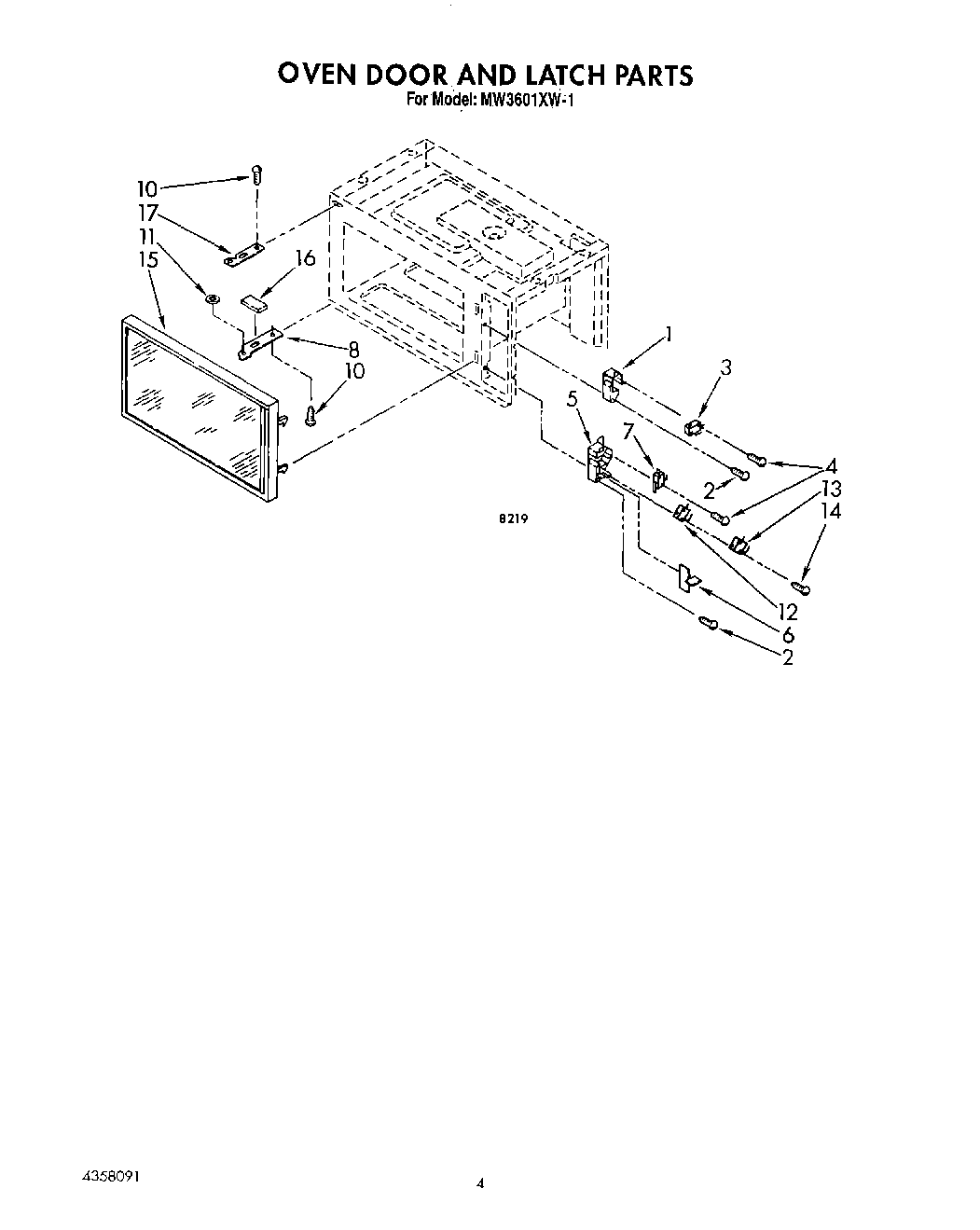

MW3601XW1 04 – OVEN DOOR AND LATCH

Written by

Products

Position	Product
1	Latch, Upper
2	Special Screw (2)
4	Screw (2)
5	Latch, Lower
6	Rod, Release
7	4392027 Whirlpool Microwave Primary Switch
8	Hinge Plate, Lower
10	WP3400094 Whirlpool Screw
11	Hinge Washer
14	Screw
15	Door, Complete
16	Foam
17	Hinge Plate, Upper
