MW5571 03 – OVEN DOOR

MW5571 03 – OVEN DOOR

Written by

in

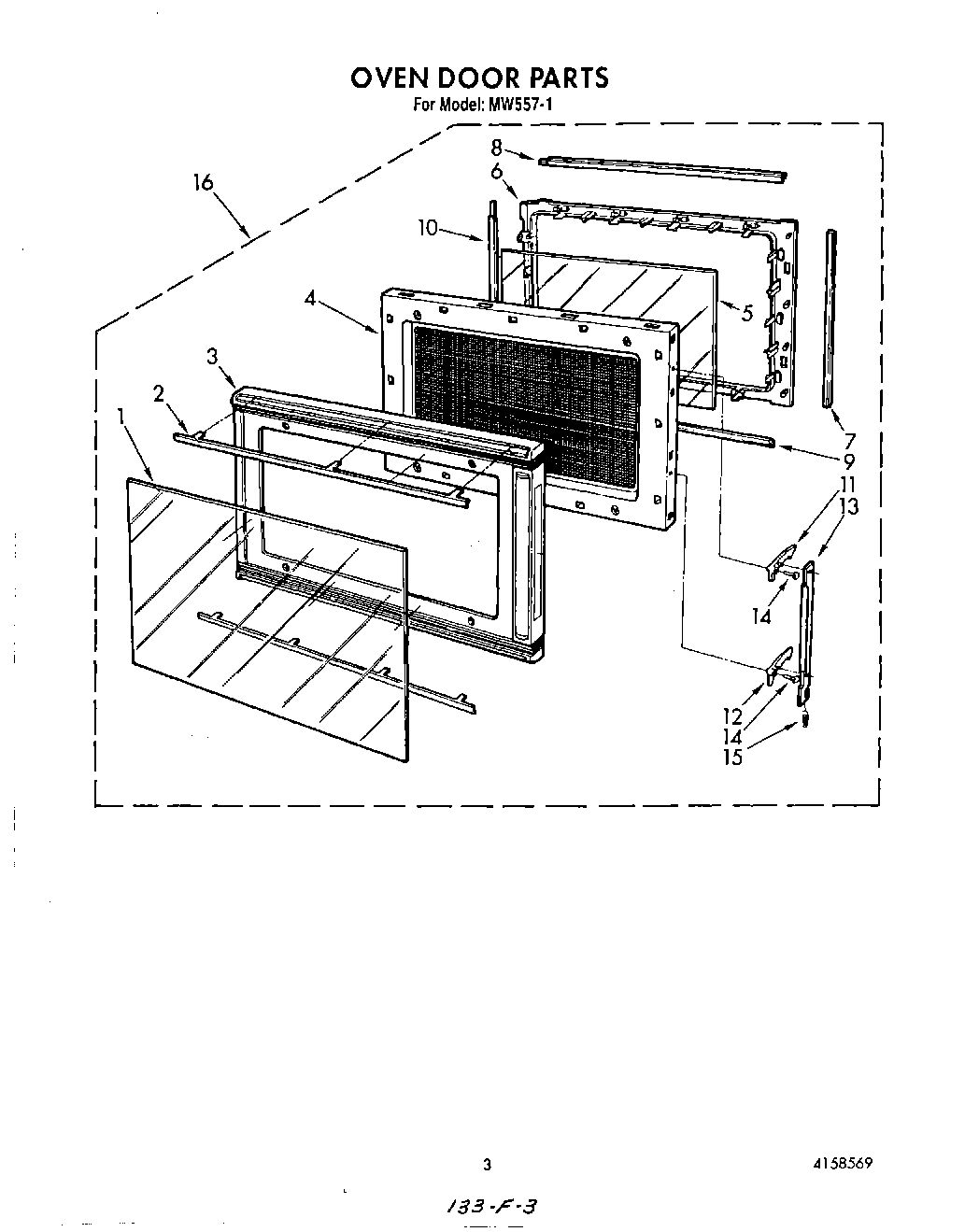

MW5571 03 – OVEN DOOR

Products

Position	Product
1	Front Screen
2	Trim (2)
3	Door Panel
4	Door Frame Asm.
5	Seal, Tape
6	Panel, Inner
7	Trim, Latch
8	Trim, Upper
9	Trim, Lower
10	Trim, Hinge
11	Latch, Upper
12	Latch, Lower
13	Lever, Latch
14	Pin, Latch (2)
15	Spring, Latch
16	Door, Complete
