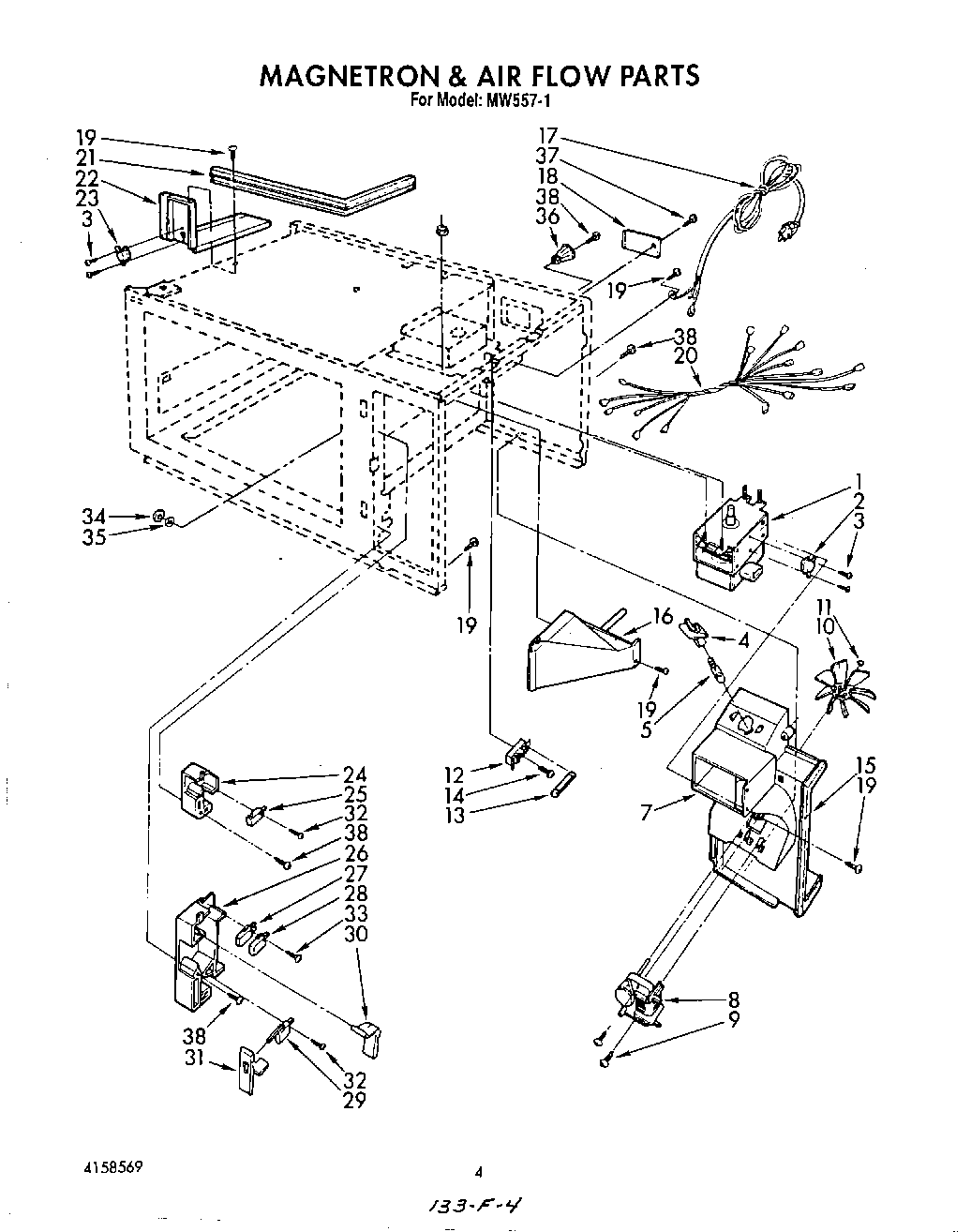

MW5571 04 – MAGNETRON AND AIRFLOW
Written by
in
MW5571 04 – MAGNETRON AND AIRFLOW
Products
Position
Product
1
Magnetron
2
Thermostat
3
Screw (2)
4
Socket, Lamp
5
Bulb
7
Bracket, Fan
8
Motor, Fan
9
Screw (2)
10
Propeller
11
E-Ring
12
Holder, Fuse
13
Fuse
14
Screw (2)
15
Seal, Foam
16
Air Duct, Lower
17
Power Cord Asm
18
Cover, Lamp
19
Screw
20
Wire Assembly
21
Air Duct, Center
22
Air Duct, Upper
23
Thermostat, Oven
24
Latch, Upper
25
4392027 Whirlpool Microwave Primary Switch
26
Latch, Lower
29
Swith, Secondary
30
Lever, Switch
31
Rod, Release
32
Screw (2)
33
Screw
34
Nut
35
Washer
36
Spacer
37
Screw
38
Special Screw (2)
←
