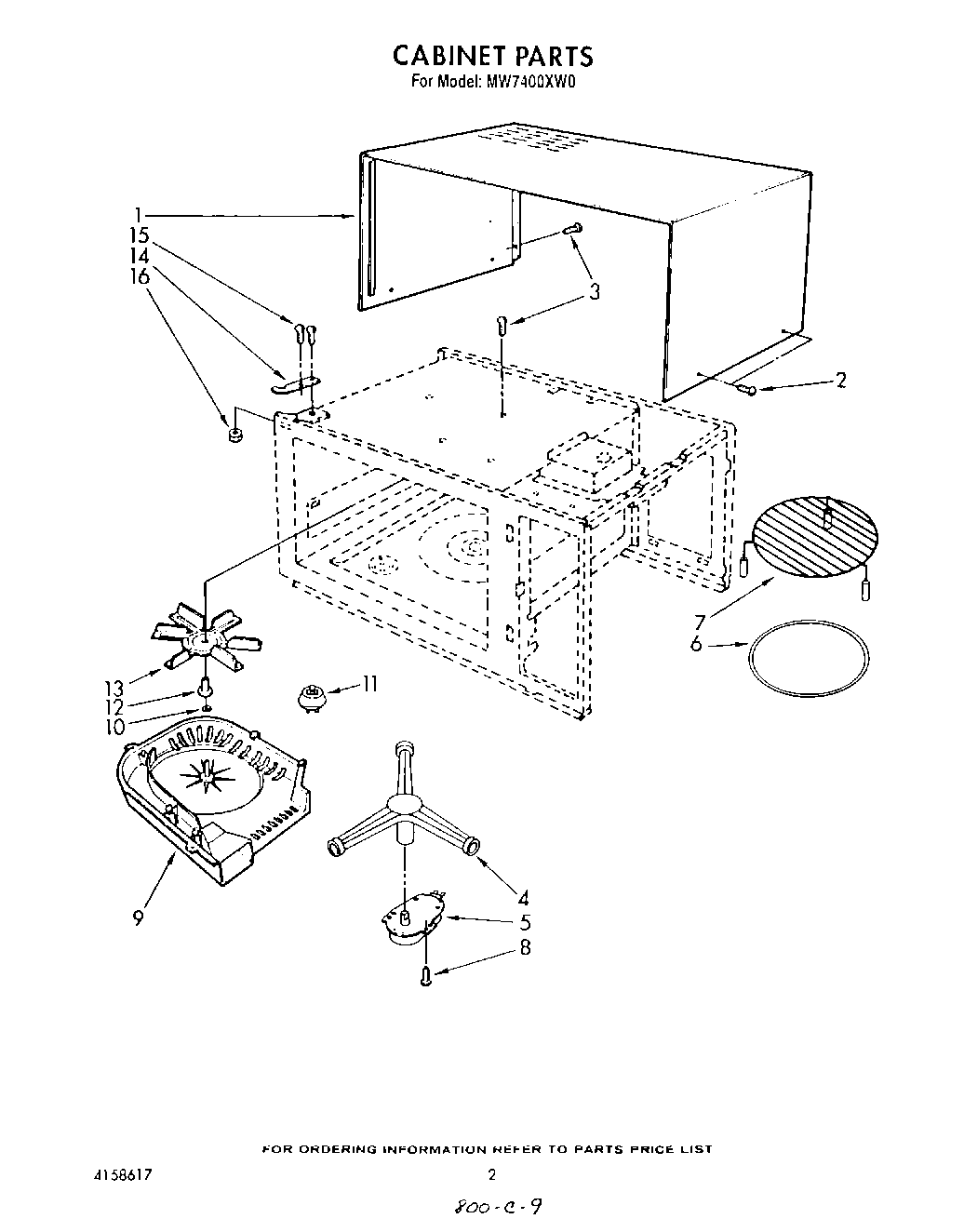

MW7400XW0 02 – CABINET

Products

PositionProduct
1Cabinet Wrapper
2Screw
3Screw
4Turntable Shaft
5Motor, Turntable
6Glass Tray
7Rack, Cooking
8Screw (2)
9Stirrer Cover
10Washer
11Roller, Table (3)
12Stirrer Fan Shaft
13Stirrer Blade
14Hinge, Upper
15Screw (2)
16Nut (2)
