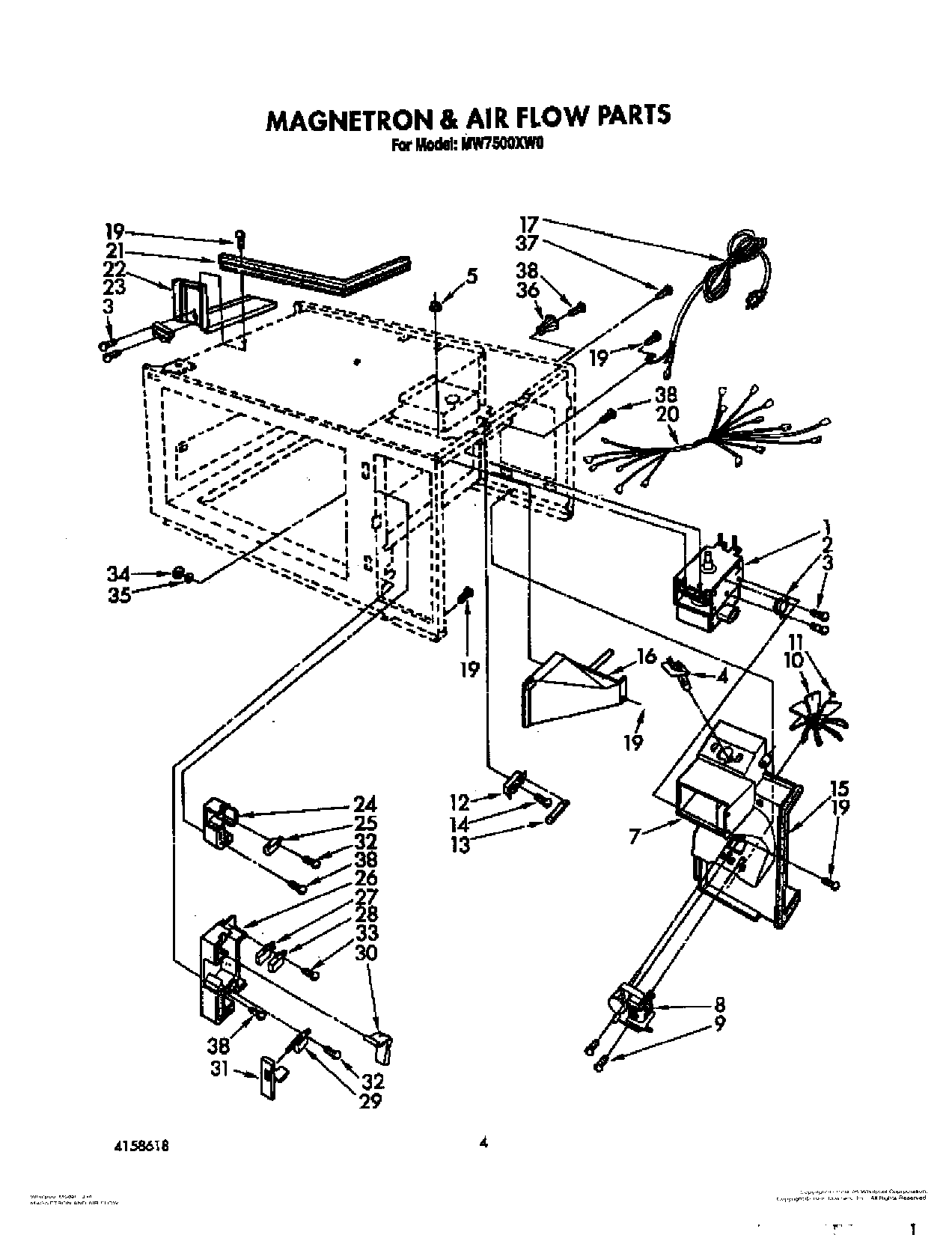

MW7500XW0 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Thermostat
3	Screw (2)
4	Base Less Light
5	Magnetron Nut (4)
7	Bracket, Fan
8	Motor, Fan
9	Screw (2)
10	Propeller
11	E-Ring
12	Holder, Fuse
13	Fuse
14	Screw (2)
15	Seal, Foam
16	Air Duct, Lower
17	Power Cord
19	Screw
20	Wiring Harness
21	Air Duct, Center
22	Air Duct, Upper
23	Thermal Fuse
24	Latch Board Upper
25	4392027 Whirlpool Microwave Primary Switch
26	Latch Board Lower
29	Swith, Secondary
30	Lever, Switch
31	Rod, Release
32	Screw (2)
33	Screw
34	Nut
35	Washer
36	Spacer
37	Screw
38	Special Screw (2)
