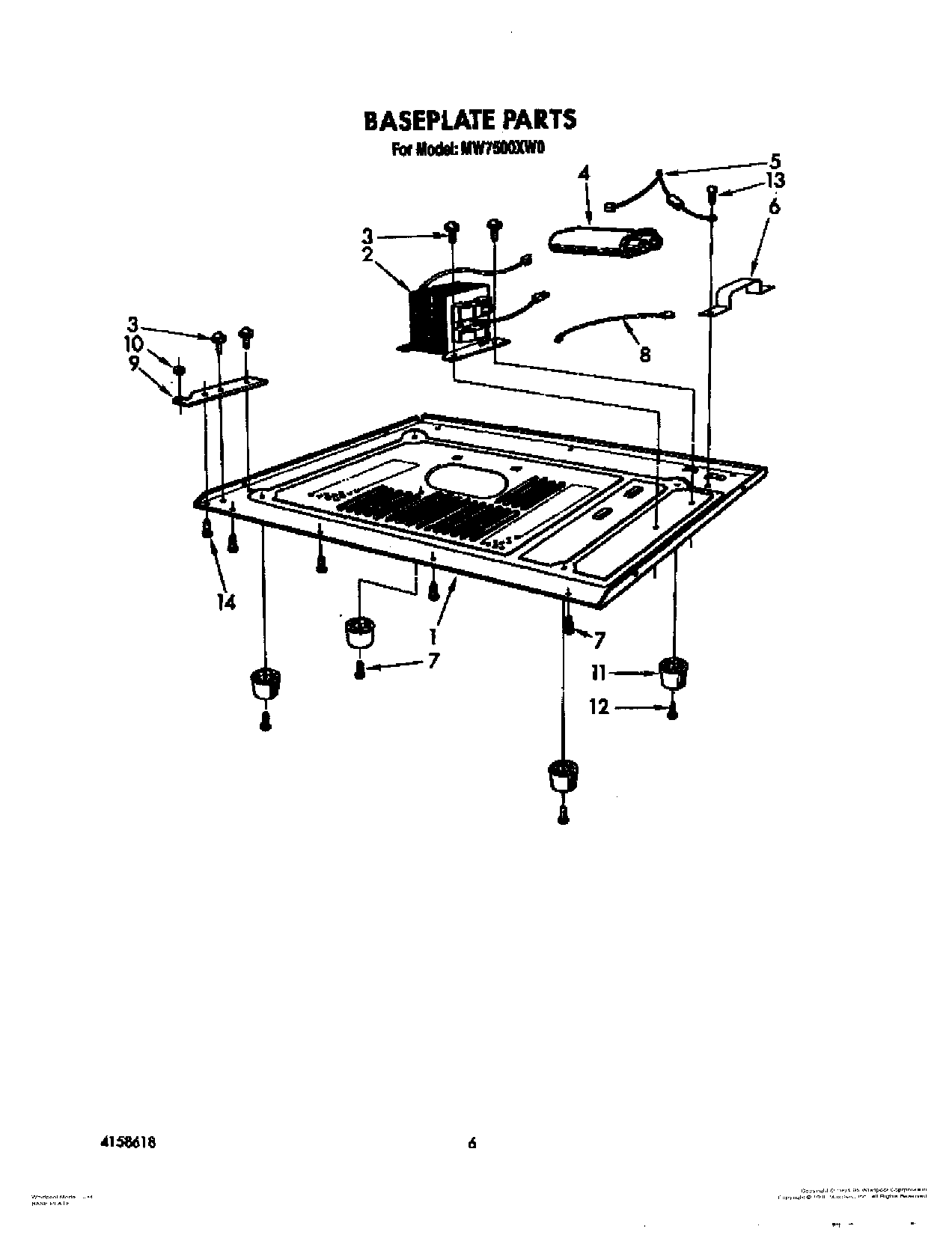

MW7500XW0 05 – BASE PLATE
Products
| Position | Product |
|---|---|
| 1 | Baseplate |
| 2 | Transformer |
| 3 | Screw (2) |
| 4 | Capacitor |
| 5 | H.V. Cable |
| 6 | Bracket, Capacitor |
| 7 | Screw |
| 8 | Wire Harness |
| 9 | Hinge Plate, Lower |
| 10 | Washer |
| 11 | Foot, Right Front |
| 12 | Screw |
| 13 | Screw (2) |
| 14 | Screw (2) |
MW7500XW0 05 – BASE PLATE
| Position | Product |
|---|---|
| 1 | Baseplate |
| 2 | Transformer |
| 3 | Screw (2) |
| 4 | Capacitor |
| 5 | H.V. Cable |
| 6 | Bracket, Capacitor |
| 7 | Screw |
| 8 | Wire Harness |
| 9 | Hinge Plate, Lower |
| 10 | Washer |
| 11 | Foot, Right Front |
| 12 | Screw |
| 13 | Screw (2) |
| 14 | Screw (2) |
