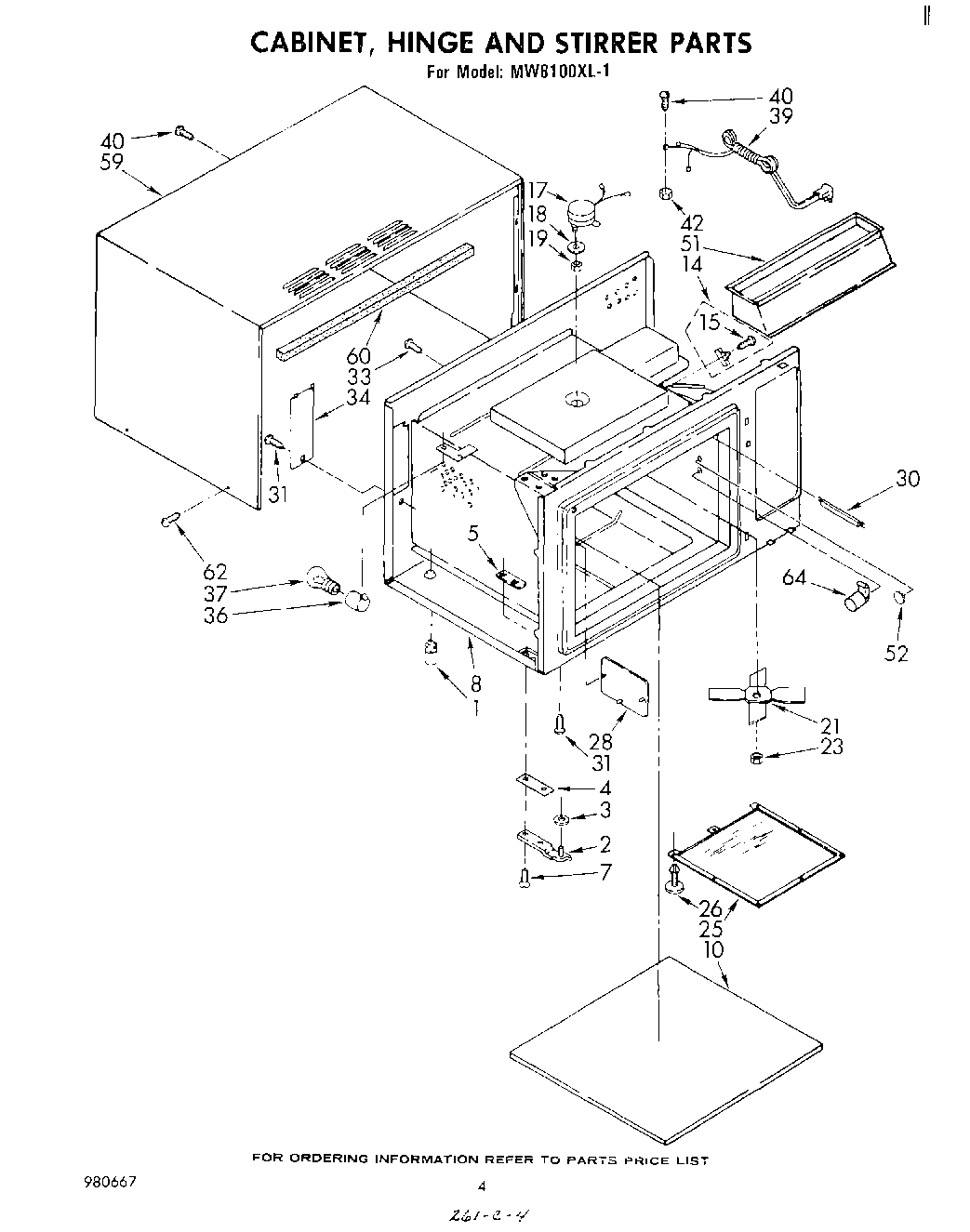

MW8100XL1 03 – CABINET, HINGE AND STIRRER

MW8100XL1 03 – CABINET, HINGE AND STIRRER

Written by

in

MW8100XL1 03 – CABINET, HINGE AND STIRRER

Products

PositionProduct
1Foot, Mounting
2hinge door (bottom)
2hinge door (top)
3WPL 312147
4Hinge, Shim Locking (2)
5plate, hing (2) (top & bottom)
7screw, oval head (4)
8Cavity & Base Assembly (Not Serviceable)
10Base, Ceramic (Install W/Silastic No. 482338)
10Shelf, Microwave (Alt.)
14Fuse, Thermal
15Screw
17motor, stirrer (alternate)
17Motor, Stirrer (Alternate)
18Washer, Internal Lock
19Nut
21Stirrer Blade
23Nut, Hex (1/4-20)
25Cover, Stirrer
26Fastener (2)
28Shield, Exhaust Probe
30Cover, Rivet
31panel, top (screw, 10a x 3/8 (3))
33WP308685 Whirlpool Microwave Screw
34Cover, Lamp
36Socket, Snap-In
37RANGE ONLY 40W 120V APPL BULB
39cord, power (alternate)
39Cord, Power (Alternate)
40Main Chassis (Screw, 10-32 x 1/2)
42Hex Nut, 10-32 (2)
51Baffle, Air Exhaust
52Plug, Button
59Wrapper, Cabinet (Includes Illus. 60)
60WPL 308295
60Pilot Cup (3 Req)
60WPL 308294
62Screw, 10A x 1/2 (2) (Black)
64Hole Plug (4)
