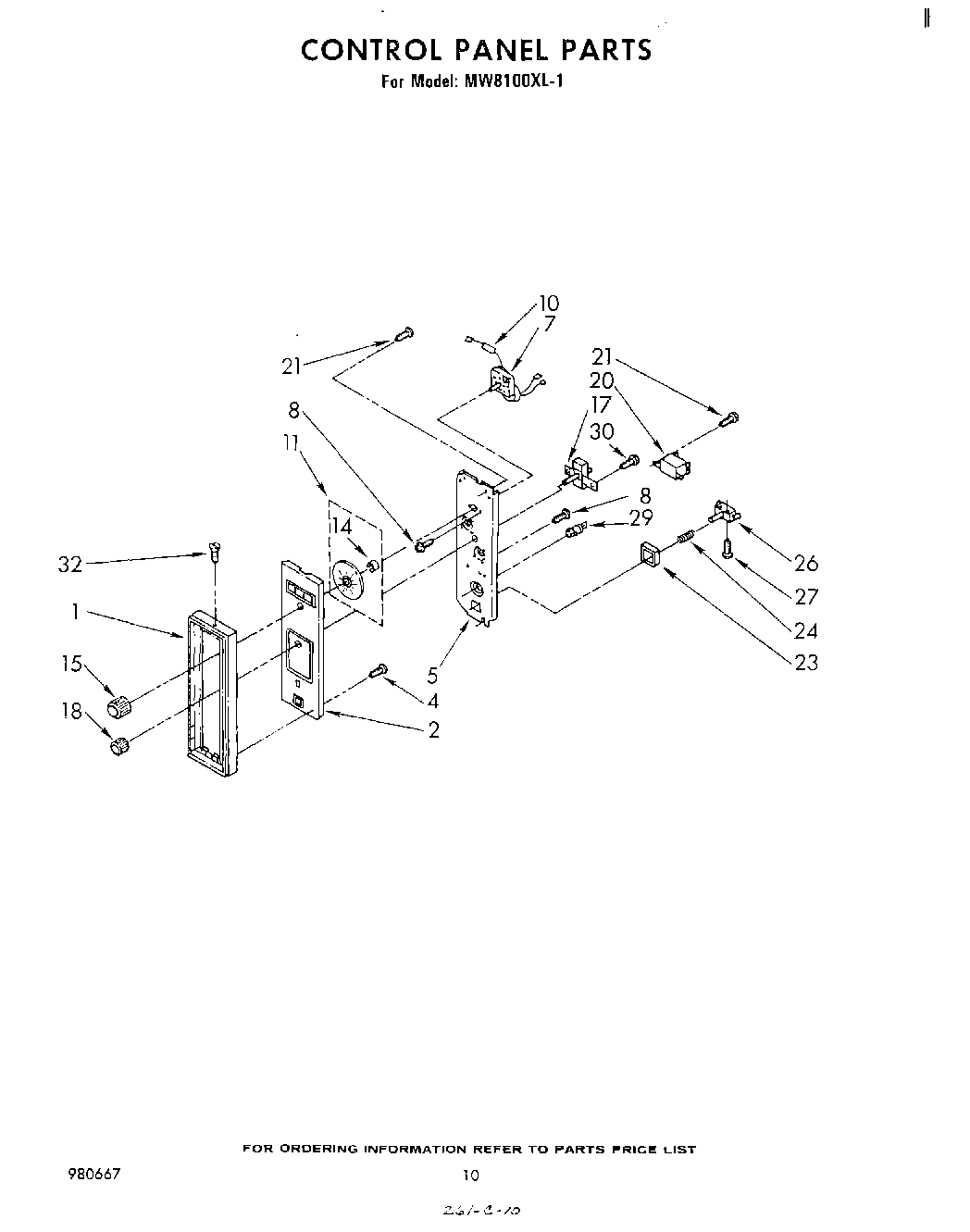

MW8100XL1 06 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Panel, Control
4	WP681249 Whirlpool Screw Assembly
5	Bracket, Support
7	Timer, Linear
8	Screw,
10	Resistor & Terminal (Timer To Rotary Switch)
11	Dial, Timer (Alternate)
11	Dial, Timer (Alternate)
14	Ring, Compression
15	Knob (Meal Timer)
17	Switch, Cook Defrost
18	Knob, Cook
20	Relay, Latching
21	Screw
23	Button, Push To Start
24	Spring, Compression
26	Switch, Push-To-Start
27	Screw
29	Light, Indicator
30	Screw, 10-32 x 1/2
32	WP488627 Whirlpool Refrigerator Screw
