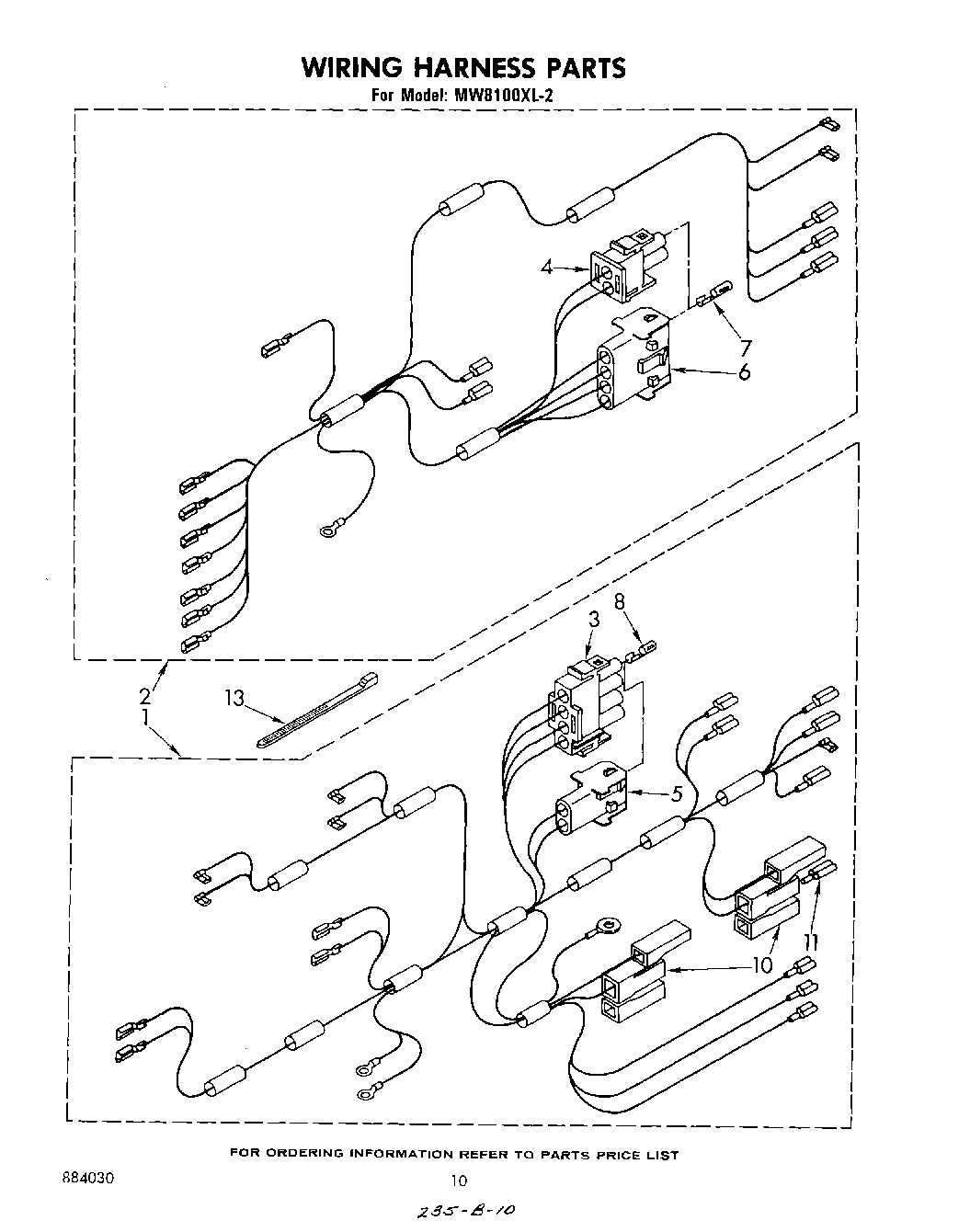

MW8100XL2 06 – WIRING HARNESS , LIT/OPTIONAL

Products

Position	Product
1	Harness, Wiring Main
2	Harness, Wiring Control
3	Disconnect Block (4 Terminal)
4	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5	cap, terminal (uses 310222 or 310223 pin terminal)
6	Disconnect Block, Female
7	Harness, Wiring (Connector (11))
8	Harness, Wiring (Connector (6))
10	Housing, Plug
11	WP248562 Whirlpool Terminal
13	RCK805 25-3/4`` Built-In Kit
13	List, Repair Parts
13	Tech Sheet
13	Cord Brown
13	Guide, Use & Care
13	WPL 832769
13	WPL 309887
13	RCK807 27`` Built-In Kit
13	RCK811 30`` Wall Mount Grille Kit
13	Storage Cabinet
13	RCK803 30`` Built-In Kit
13	Instructions, Installation
13	WPL 591014
13	Wire (14 Ga. 150 c Brown)
13	Wire (14 Ga. 150 c Blue)
13	WP261869 Whirlpool Microwave Paint
13	242831 Whirlpool Oven Wire
13	WP482338 Whirlpool Refrigerator Adhesive
13	WPW10339879 Whirlpool Wire Tie
13	Wire, 25`` Roll (White 14 GA.)
13	Wire, 25` Roll (Red 14 Ga.)
13	Wire (14 Ga. 150 c Green)
13	Wire (14 Ga. 150 c Orange)
13	WPL 832763
13	Paint, Cord Brown Spray (13 Oz.)
13	261900 Whirlpool Microwave Spray
13	1
13	Wire (14 Ga. 200 c Brown)
13	18 Ga. 80~c Rating (Red)
13	Wire (12 Ga. 150 c Black)
13	Wire (14 Ga. 150 c Yellow)
13	Wire, 25` Roll (Black 14 Ga.)
