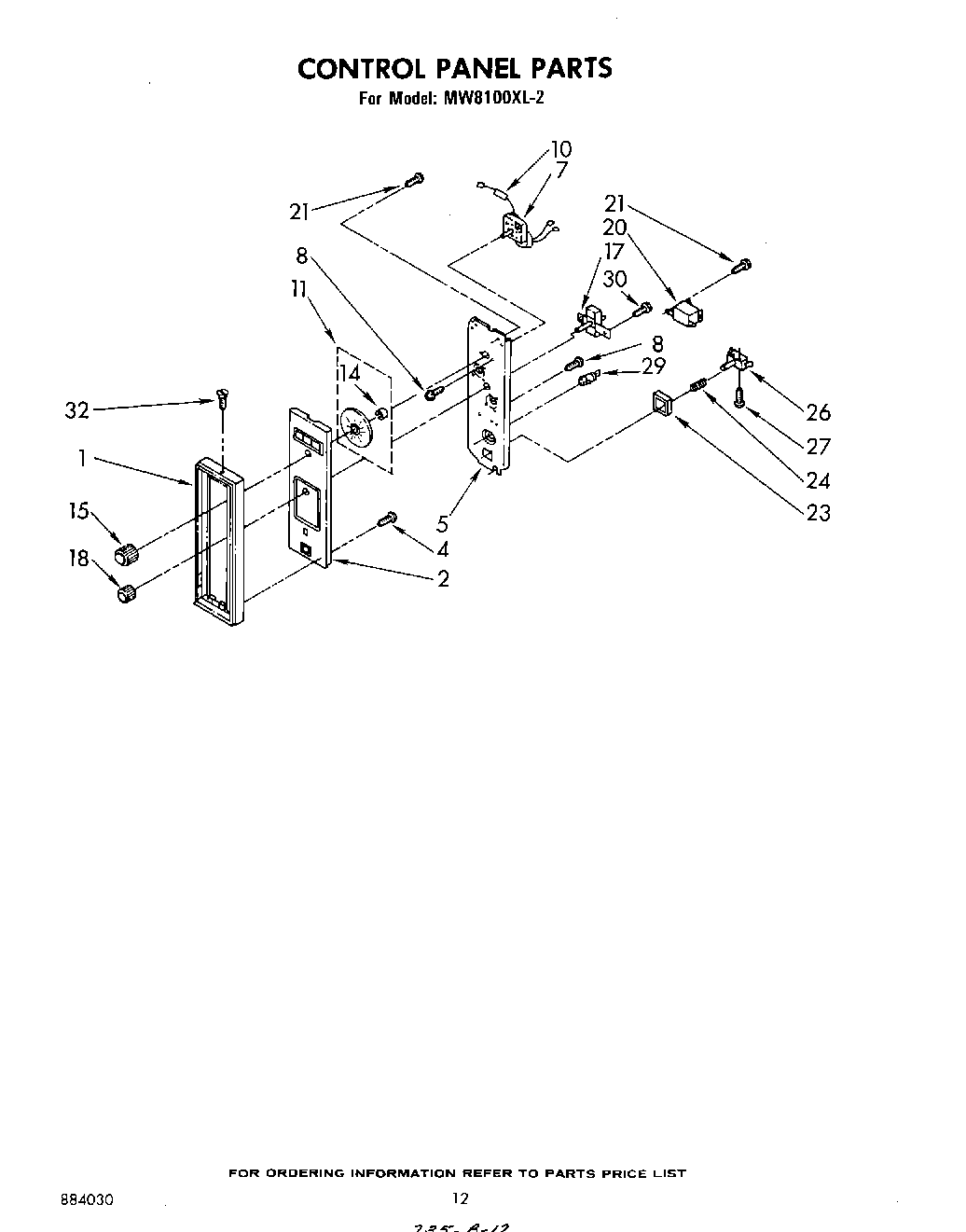

MW8100XL2 07 – CONTROL PANELadmin2025-04-26T08:44:34+00:00MW8100XL2 07 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Frame, Control Panel |
| 2 | Panel, Control |
| 4 | WP681249 Whirlpool Screw Assembly |
| 5 | Bracket, Support |
| 7 | Timer, Linear |
| 8 | Screw, |
| 10 | Resistor & Terminal (Timer To Rotary Switch) |
| 11 | Dial, Timer (Alternate) |
| 11 | Dial, Timer (Alternate) |
| 14 | Ring, Compression |
| 15 | Knob, Timer |
| 17 | Switch, Cook Defrost |
| 18 | Knob, Cook |
| 20 | Relay, Latching |
| 21 | Screw |
| 23 | Button, Push To Start |
| 24 | Spring, Compression |
| 26 | Switch, Push-To-Start |
| 27 | Screw |
| 29 | Light, Indicator |
| 30 | Screw, 10-32 x 1/2 |
| 32 | WP488627 Whirlpool Refrigerator Screw |
