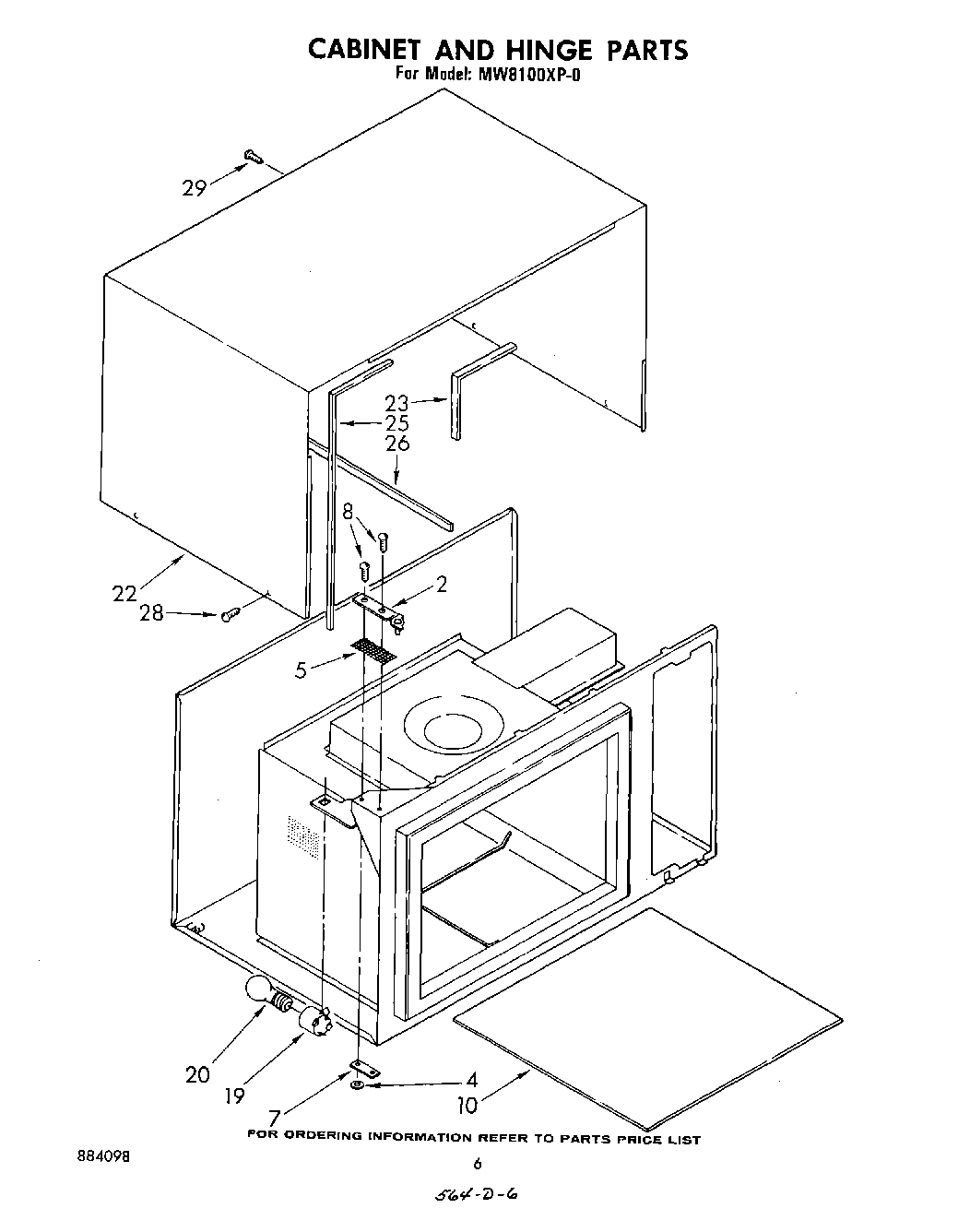

MW8100XP0 04 – CABINET AND HINGE

Products

Position	Product
2	Hinge Assembly (Bottom)
2	Hinge Assembly (Top)
4	WPL 312147
5	Hinge, Shim Locking (2)
7	Plate, Nut (2)
8	Screw, 12-24 x 3/4 (4)
10	Shelf, Microwave
19	Socket, Snap-In
20	RANGE ONLY 40W 120V APPL BULB
22	Wrapper, Cabinet (Includes Illus. 23, 25 & 26)
23	Pilot Cup (3 Req)
25	WPL 308294
26	WPL 308295
28	Screw, 10A x 1/2 (2) (Black)
29	Main Chassis (Screw, 10-32 x 1/2)
